Vanity lights are an essential part of any bathroom. They provide the right amount of light for applying makeup, shaving, and other daily grooming routines. But installing vanity lights can be a daunting task, especially for those who are not familiar with electrical wiring. In this article, we will provide a comprehensive guide on vanity light wiring diagrams, including everything you need to know to install your vanity lights safely and correctly.
What is a Vanity Light Wiring Diagram?
A vanity light wiring diagram is a visual representation of the electrical connections required to install a vanity light. It shows how the wires should be connected to the switch, light fixture, and power source. Having a wiring diagram is crucial to ensure that the installation is safe and meets electrical codes.
Before starting the installation, be sure to turn off the power to the circuit you will be working on to prevent electrical shocks or fires.
Required Tools
To install vanity lights, you will need the following tools:
| Tools | Quantity |
|---|---|
| Screwdriver (flathead and Phillips) | 1 each |
| Wire stripper | 1 |
| Wire nuts | 6-8 |
| Electrical tape | 1 roll |
| Pliers | 1 pair |
| Voltage tester | 1 |
Step-by-Step Guide
Step 1: Mount the Light Fixture
The first step in installing a vanity light is to mount the light fixture onto the wall. To do this, follow these steps:
- Locate the studs in the wall where you want to mount the light fixture. Use a stud finder to locate them if necessary.
- Hold the light fixture in place and mark where the mounting screws will go.
- Drill pilot holes into the marked spots on the wall.
- Attach the mounting bracket to the wall using screws and anchors.
- Attach the light fixture to the mounting bracket using screws.
Step 2: Connect the Wires
The next step is to connect the wires to the light fixture. To do this, follow these steps:
- Strip the insulation off the black and white wires that extend from the wall.
- Connect the black wire from the wall to the black wire from the light fixture using a wire nut.
- Connect the white wire from the wall to the white wire from the light fixture using a wire nut.
- Connect the ground wire from the wall to the ground wire from the light fixture using a wire nut.

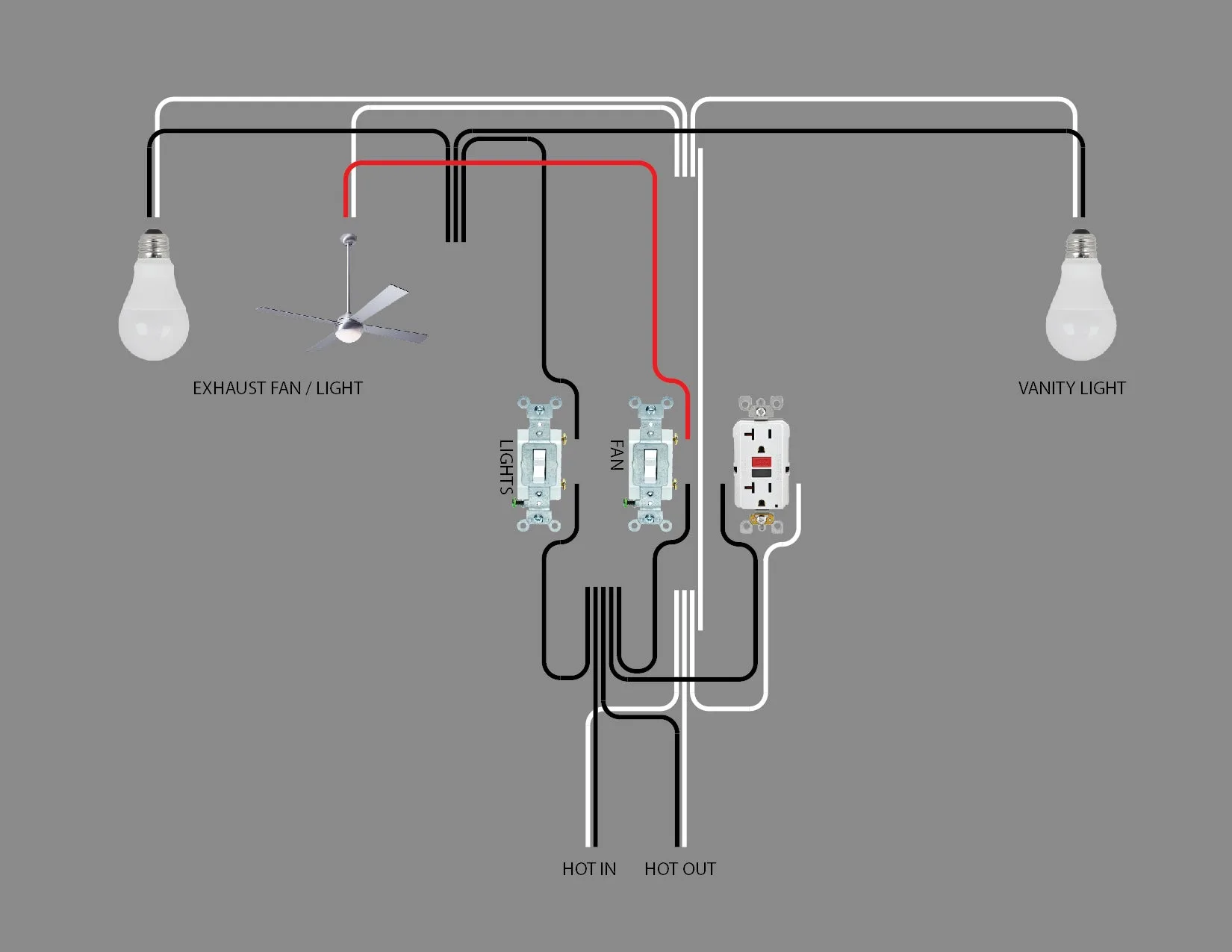

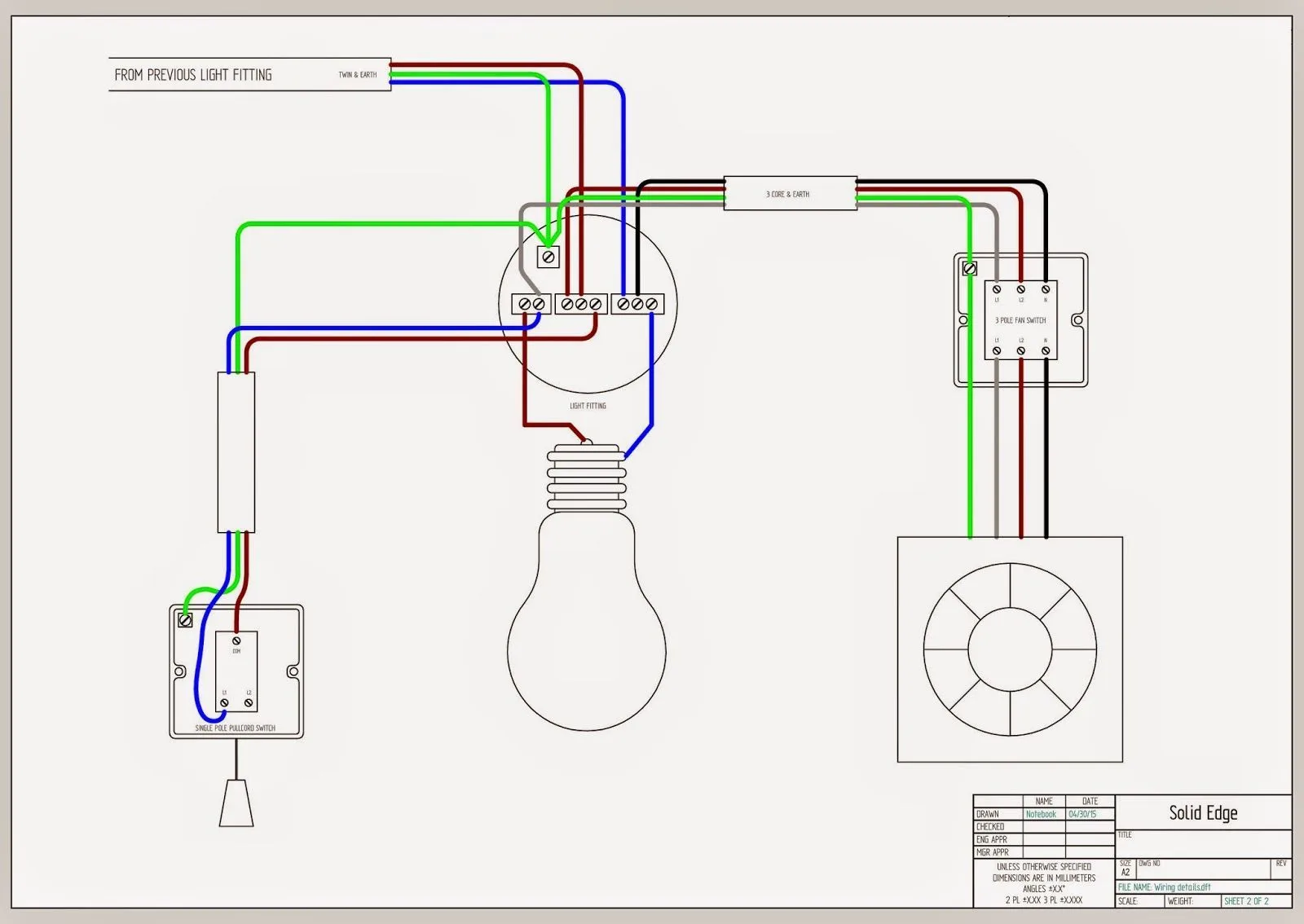

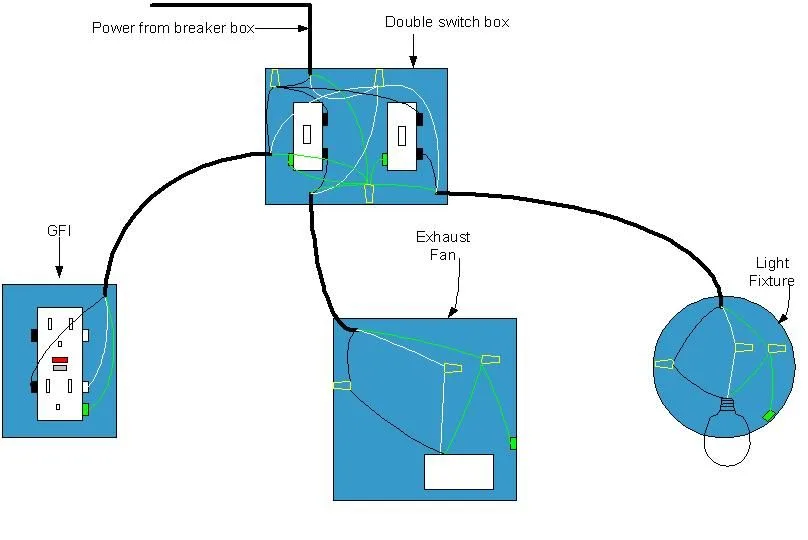

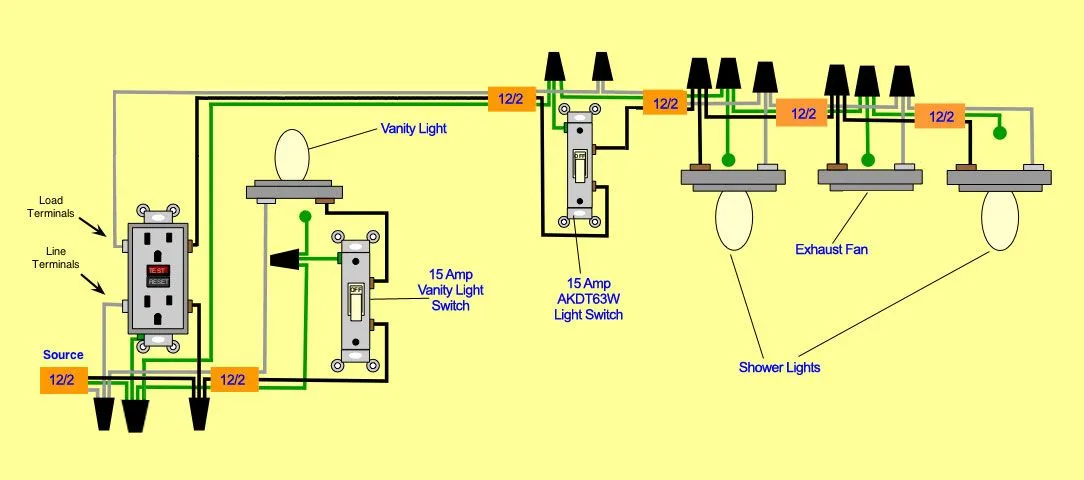

Step 3: Install the Switch
The final step is to install the switch. To do this, follow these steps:
- Turn off the power to the circuit you will be working on.
- Remove the faceplate from the switch box.
- Attach the black wire from the light fixture to one of the switch terminals using a wire nut.
- Attach a black wire from the wall to the other switch terminal.
- Connect the white wires from the wall and the light fixture together using a wire nut.
- Connect the ground wires together using a wire nut.
- Mount the switch into the switch box.
- Attach the faceplate to the switch box.
- Turn on the power to the circuit and test the switch and light fixture.
Frequently Asked Questions
Q: Can I install vanity lights without a wiring diagram?
A: While it is possible to install vanity lights without a wiring diagram, it is highly recommended to use one. A wiring diagram ensures that the installation is safe and meets electrical codes. Without one, you risk electrical shocks or fires.
Q: What type of wire should I use for vanity light wiring?
A: You should use 14-gauge wire for vanity light wiring. This type of wire is capable of handling up to 15 amps, which is sufficient for most vanity lights.

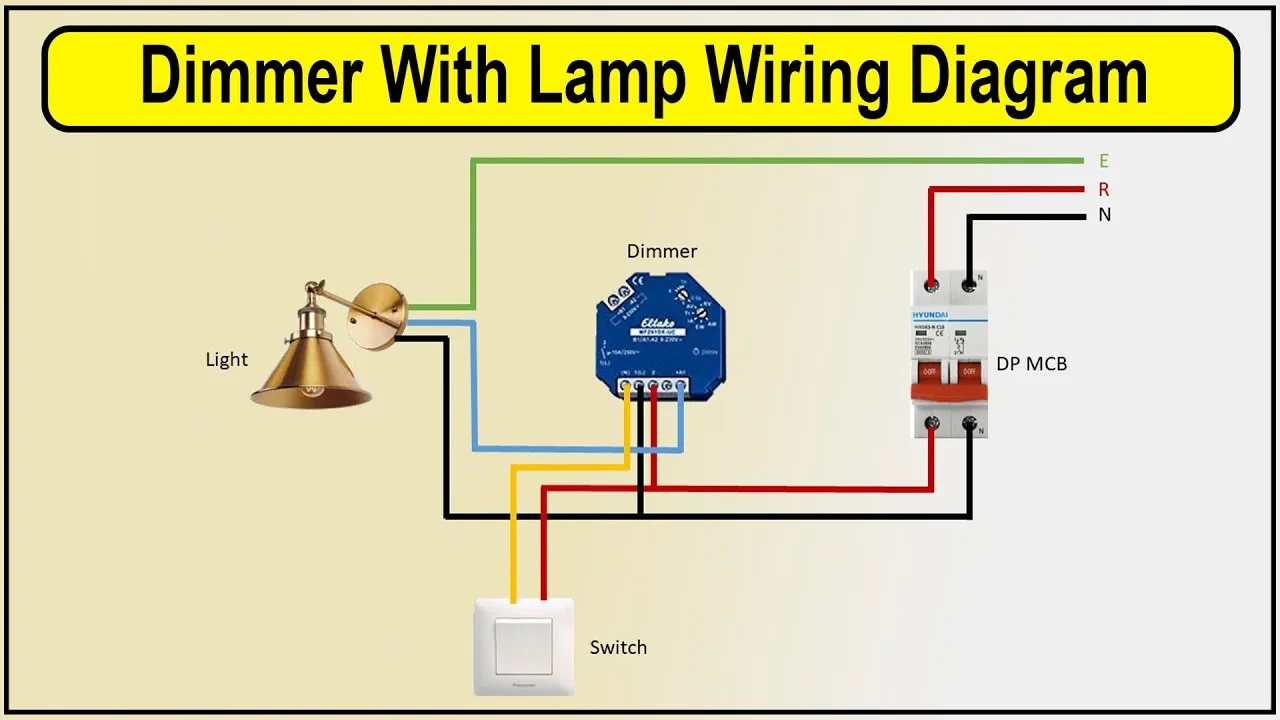

Q: Can I use a dimmer switch with vanity lights?
A: Yes, you can use a dimmer switch with vanity lights. However, make sure that the light fixture is compatible with dimmer switches before installing one.
Q: How many vanity lights should I install in my bathroom?
A: The number of vanity lights you should install in your bathroom depends on the size and layout of the room. As a general rule, you should aim for at least two vanity lights, one on each side of the mirror.
Q: How high should I mount my vanity lights?
A: Vanity lights should be mounted at eye level, which is typically around 60 inches from the floor.
Conclusion
Installing vanity lights may seem like a daunting task, but with a little knowledge and the right tools, you can do it safely and correctly. By following the steps outlined in this guide, you can install your vanity lights in no time. Remember to always turn off the power to the circuit you will be working on and to use a wiring diagram to ensure that the installation is safe and meets electrical codes.
