Alpine CDE 121 is a popular head unit that is widely used in cars, trucks, and other vehicles. It is known for its exceptional sound quality, user-friendly interface, and advanced features. However, installing this device can be a challenge, especially if you are not familiar with its wiring diagram.
In this article, we will provide you with a comprehensive guide on how to wire your Alpine CDE 121 head unit. We will explain each wire in detail, so you can easily connect your unit and enjoy a seamless music experience. Let’s get started!
Understanding the Wiring Diagram

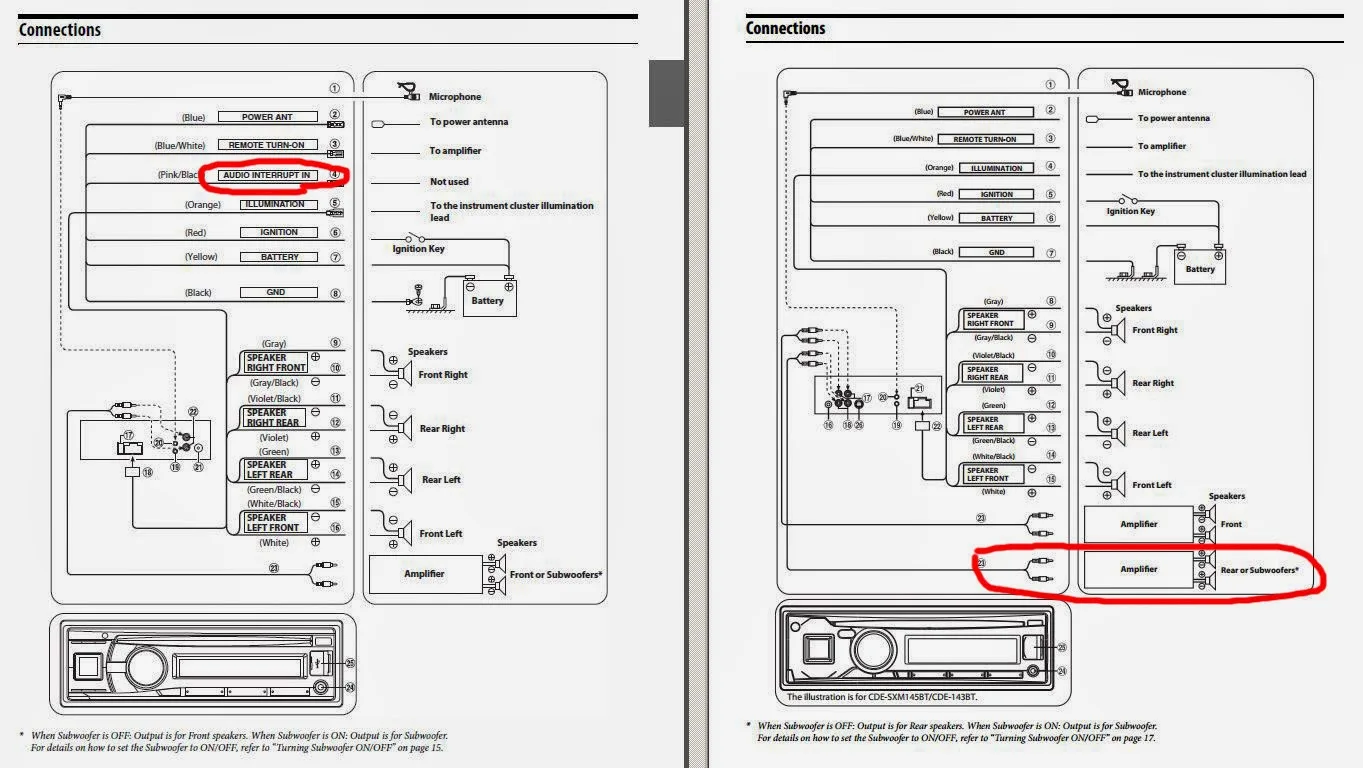

Before we dive into the wiring process, let’s first take a look at the wiring diagram of the Alpine CDE 121. The diagram consists of several wires that need to be connected to the appropriate cables of your vehicle.
| Wire Color | Function |
| Yellow | Battery |
| Red | Ignition |
| Black | Ground |
| Blue | Power Antenna |
| White | Front Left Speaker (+) |
| White/Black | Front Left Speaker (-) |
| Gray | Front Right Speaker (+) |
| Gray/Black | Front Right Speaker (-) |
| Green | Rear Left Speaker (+) |
| Green/Black | Rear Left Speaker (-) |
| Violet | Rear Right Speaker (+) |
| Violet/Black | Rear Right Speaker (-) |
Power and Ground Wires
The yellow wire is the battery wire, which connects directly to your car’s battery. It provides power to the head unit even when the car is turned off. The red wire is the ignition wire, which connects to the ignition switch of your vehicle. It only provides power when the key is turned on. The black wire is the ground wire, which connects to the metal chassis of your vehicle. It ensures a stable ground connection for your head unit.
It is important to connect these wires correctly, as improper wiring can damage your unit or even your car. Always double-check the wiring diagram and consult a professional if you are unsure about the wiring process.
Speaker Wires
The Alpine CDE 121 has four speaker outputs: front left, front right, rear left, and rear right. Each output has a positive (+) and negative (-) wire, which connects to the corresponding speakers in your vehicle.
The white wire is for the front left speaker (+), while the white/black wire is for the front left speaker (-). The gray wire is for the front right speaker (+), and the gray/black wire is for the front right speaker (-). The green wire is for the rear left speaker (+), while the green/black wire is for the rear left speaker (-). Lastly, the violet wire is for the rear right speaker (+), while the violet/black wire is for the rear right speaker (-).
Make sure to connect each wire to the appropriate speaker, as improper wiring can cause sound distortion or even damage your speakers.
FAQs
1. Can I install the Alpine CDE 121 myself?
Yes, you can install the Alpine CDE 121 yourself, but make sure to follow the wiring diagram carefully and consult a professional if you are unsure about the process.
2. How do I know if I wired my head unit correctly?
You can test your head unit by turning it on and checking if all the functions are working properly. Make sure to check the sound quality and volume levels of your speakers.
3. Do I need any special tools to install the Alpine CDE 121?
You will need a wiring harness adapter, which connects the head unit to the wiring system of your vehicle. You may also need crimping tools, wire strippers, and a multimeter to ensure proper connections.
4. How do I troubleshoot if my head unit is not working?
You can check the wiring connections and make sure they are secure and properly connected. You can also check the fuses and wiring harness for any damage or loose connections. If the problem persists, consult a professional for assistance.
5. How do I update the firmware of my Alpine CDE 121?
You can download the firmware update from the Alpine website and transfer it to a USB drive. Insert the USB drive into the head unit, and follow the instructions on the screen to update the firmware.
Conclusion
The Alpine CDE 121 is an excellent head unit that offers superior sound quality and advanced features. Installing this unit can be a bit challenging, but with the help of this guide, you can easily wire your head unit and enjoy a seamless music experience. Remember to always double-check the wiring connections and consult a professional if you are unsure about the process.
