Automatic Identification System (AIS) is a radio-based system for tracking and monitoring vessels, their location, and movement. AIS Pilot Plug is a standardized connector used to connect AIS transponder with a pilot plug cable. AIS Pilot Plug wiring diagram shows the connections between the AIS transponder and pilot plug cable.

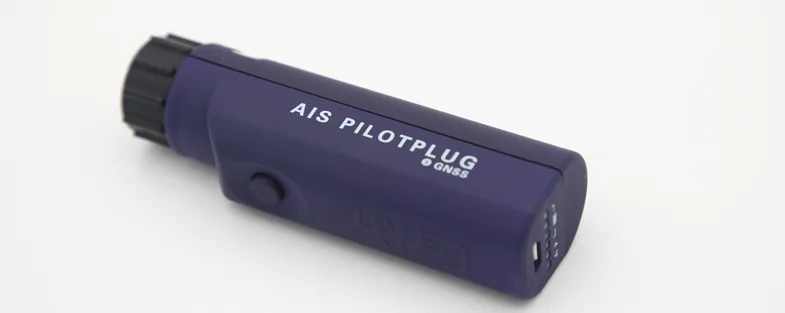

What is AIS Pilot Plug?
Automatic Identification System (AIS) is a system used for tracking and monitoring vessel movement. AIS Pilot Plug is a standardized connector that provides interface between AIS transponder and pilot plug cable. It allows the pilot on board to interface with the AIS transponder and receive vessel position, speed, and other data.
An AIS Pilot Plug typically has a 4-pin connector and is compatible with NMEA 0183 and NMEA 2000 protocols. It is used to interface AIS transponder with other onboard systems such as radar, ECDIS, and VHF radio.
Understanding AIS Pilot Plug Wiring Diagram
The AIS Pilot Plug wiring diagram shows the connections between the AIS transponder and pilot plug cable. It consists of four wires that connect to each pin of the 4-pin connector. The wires are color-coded for easy identification.
Pin 1: Power
Pin 1 of the AIS Pilot Plug is used for power supply. It provides 12-24 VDC power supply to the AIS transponder. The wire for pin 1 is usually red in color.
Pin 2: Ground
Pin 2 of the AIS Pilot Plug is used for grounding. It is connected to the grounding pin of the AIS transponder. The wire for pin 2 is usually black in color.
Pin 3: Data Out
Pin 3 of the AIS Pilot Plug is used for data output. It transmits the AIS data received by the AIS transponder to other onboard systems such as radar, ECDIS, and VHF radio. The wire for pin 3 is usually white in color.
Pin 4: Data In
Pin 4 of the AIS Pilot Plug is used for data input. It receives data from other onboard systems such as radar, ECDIS, and VHF radio and transmits it to the AIS transponder. The wire for pin 4 is usually green in color.
AIS Pilot Plug Wiring Diagram Example
Here is an example of an AIS Pilot Plug wiring diagram:
| Pin | Function | Wire Color |
|---|---|---|
| 1 | Power | Red |
| 2 | Ground | Black |
| 3 | Data Out | White |
| 4 | Data In | Green |
FAQ
What is an AIS Pilot Plug?
AIS Pilot Plug is a standardized connector used to connect AIS transponder with a pilot plug cable. It allows the pilot on board to interface with the AIS transponder and receive vessel position, speed, and other data.
What does an AIS Pilot Plug wiring diagram show?
An AIS Pilot Plug wiring diagram shows the connections between the AIS transponder and pilot plug cable. It consists of four wires that connect to each pin of the 4-pin connector. The wires are color-coded for easy identification.
What are the colors of the wires in an AIS Pilot Plug?
The wire for pin 1 (power) is usually red in color, pin 2 (ground) is usually black in color, pin 3 (data out) is usually white in color, and pin 4 (data in) is usually green in color.
What is the function of each pin in an AIS Pilot Plug?
Pin 1 of the AIS Pilot Plug is used for power supply, pin 2 is used for grounding, pin 3 is used for data output, and pin 4 is used for data input.
Is AIS Pilot Plug compatible with NMEA protocols?
Yes, AIS Pilot Plug is compatible with NMEA 0183 and NMEA 2000 protocols.
