Are you having trouble with your 2009 Kia Sportage radio wiring? Look no further! This article will provide you with a comprehensive guide on how to fix any issues or install a new radio, complete with a detailed wiring diagram. So, let’s get started!
Understanding the wiring diagram
Before we dive into the wiring diagram, let’s talk about what it is and why it’s important. A wiring diagram is a visual representation of the electrical connections and wiring between components in a car. It shows how the various wires are connected and where they are located.
A wiring diagram can be used to diagnose problems with a car’s electrical system, to install new components and upgrades, or simply to understand how the system works. In the case of the 2009 Kia Sportage radio wiring diagram, it will help you to install a new radio or troubleshoot any issues with your current radio.
What does the wiring diagram show?

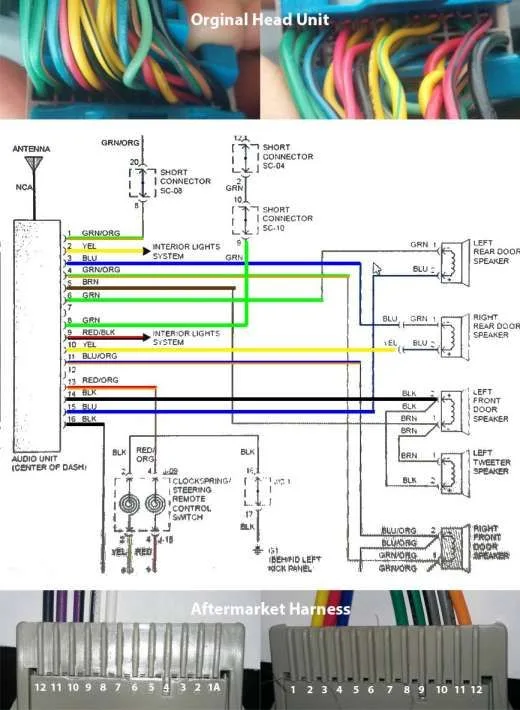

The 2009 Kia Sportage radio wiring diagram shows the connections between the radio, speakers, antenna, and power sources. It also shows the color codes for each wire, so you can easily identify them when working on the wiring.
The diagram will typically include the following components:
| Component | Color Code | Description |
|---|---|---|
| Radio | Red | 12V constant power |
| Yellow | 12V switched power | |
| Black | Ground | |
| Speakers | Various | Speaker connections |
| Antenna | Various | Antenna connections |
Common issues with 2009 Kia Sportage radio wiring
There are several common issues that can arise with the 2009 Kia Sportage radio wiring. Some of the most common issues include:
No power to the radio
If you’re experiencing no power to the radio at all, it could be due to a blown fuse, a disconnected wire, or a faulty radio. Check your fuses and wiring first, and if all seems well, you may need to replace the radio.
Poor sound quality
If you’re experiencing poor sound quality, it could be due to a faulty speaker or wiring. Check your speakers and wiring for any damage or loose connections.
No sound at all
If you’re experiencing no sound at all from your radio, it could be due to a faulty speaker or wiring, a blown fuse, or a faulty radio. Check your speakers and wiring first, and then move on to fuses and the radio if necessary.
Installing a new radio
If you’re looking to install a new radio in your 2009 Kia Sportage, it’s important to follow the wiring diagram and color codes to ensure a proper installation. Here’s a step-by-step guide:
Step 1: Disconnect the battery
Before you start working on the wiring, it’s important to disconnect the battery to avoid any electrical shocks or short circuits.
Step 2: Remove the old radio
Remove the old radio by using a radio removal tool or a flathead screwdriver to pry it out of the dash. Unplug any wiring connections from the back of the radio.
Step 3: Connect the wiring harness
Connect the wiring harness adapter to the wiring in your car, following the wiring diagram and color codes. Then, connect the adapter to the new radio.
Step 4: Install the new radio
Slide the new radio into the dash and secure it in place. Reconnect any wiring connections and test the radio to make sure it’s working properly.
FAQ
What do the color codes on the wiring diagram mean?
The color codes on the wiring diagram represent the different wires and their functions. For example, red represents 12V constant power, yellow represents 12V switched power, and black represents ground.
Can I install a new radio myself?
Yes, you can install a new radio yourself. However, it’s important to follow the wiring diagram and color codes to ensure a proper installation. If you’re not comfortable working with electrical wiring, it’s recommended to have a professional install the radio for you.
What should I do if I’m still having issues with my radio after following the wiring diagram?
If you’re still having issues with your radio after following the wiring diagram, it’s recommended to consult with a professional or contact the manufacturer for assistance.
That concludes our guide on the 2009 Kia Sportage radio wiring diagram. We hope this article has been helpful in troubleshooting any issues with your radio or installing a new one. Remember to always follow the wiring diagram and color codes to ensure a proper and safe installation.
