Ford Ranger is a reliable and popular pick-up truck that has been in the market for many years. It is one of the most loved trucks because of its performance and durability. The Ford Ranger comes with an already installed radio, but sometimes, the need to replace or upgrade the speaker arises. This article aims to provide a guide on how to wire the radio in a 99 Ford Ranger. We will cover various aspects such as the tools needed, steps to follow, frequently asked questions, and also include a wiring diagram.
Overview
To wire the radio in a 99 Ford Ranger, you will need a wiring diagram, wire strippers, crimping tool, soldering iron, heat shrink tubing, and electrical tape. The wiring diagram will guide you on which wire goes where, and the tools will help you to strip, crimp, and connect the wires correctly.
Step One: Disconnect the Battery
The first step in wiring the radio in a 99 Ford Ranger is to disconnect the battery. This is to ensure that you do not damage the electrical components of the car. Locate the battery and use a wrench to disconnect the negative cable.
Step Two: Remove the Radio

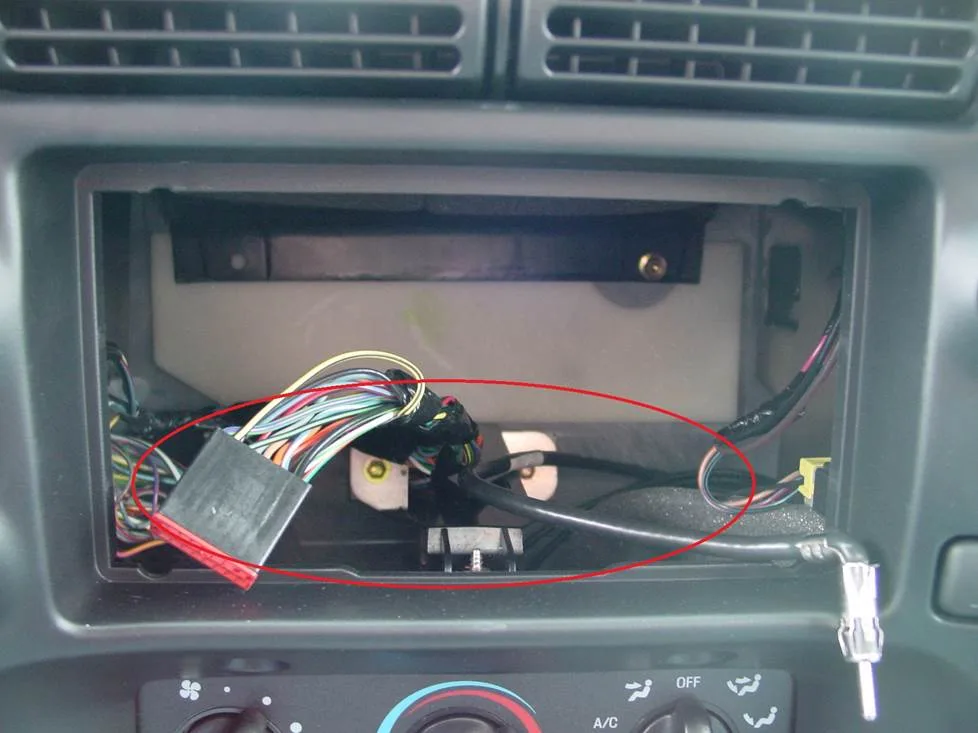

The next step is to remove the old radio. To do this, you will need to locate the screws that are holding the radio in place. Once you find them, use a screwdriver to remove them. After that, carefully pull out the radio from the dashboard.
Step Three: Identify the Wires
The third step is to identify the wires on the back of the radio. There are two types of wires- the power wires and the speaker wires. The power wires are responsible for supplying power to the radio, while the speaker wires are responsible for transmitting sound to the speakers. Identify which wires are which before you proceed.
Step Four: Connect the Wires
The fourth step is to connect the wires. Follow the wiring diagram to connect the wires as per the instructions given. Use a crimping tool to connect the wires and ensure they are tight. After connecting them, wrap them with electrical tape to avoid any short circuit.
Step Five: Test the Radio
The fifth step is to test the radio. Reconnect the battery and turn on the radio. Ensure that all the speakers are working correctly, and the sound quality is good. If everything is okay, screw the radio back into place and enjoy your new sound system.
Frequently Asked Questions (FAQs)
Q1. Can I wire the radio without a wiring diagram?
A1. It is not advisable to do so. A wiring diagram is essential because it provides clear instructions on which wire goes where. Without it, you may end up connecting the wrong wires, which may damage your car’s electrical system.
Q2. Can I use electrical tape instead of heat shrink tubing?
A2. While electrical tape can be used to wrap the wires, it is not as effective as heat shrink tubing. Heat shrink tubing provides better insulation and protection to the wires.
Q3. How do I know which wire is the positive and negative?
A3. The positive wire is usually red, while the negative wire is usually black. However, it is essential to use a wiring diagram to ensure that you connect the wires correctly.
Q4. Can I use a different radio from the one that came with the car?
A4. Yes, you can use a different radio from the one that came with the car. However, you will need to ensure that it is compatible with your car’s electrical system.

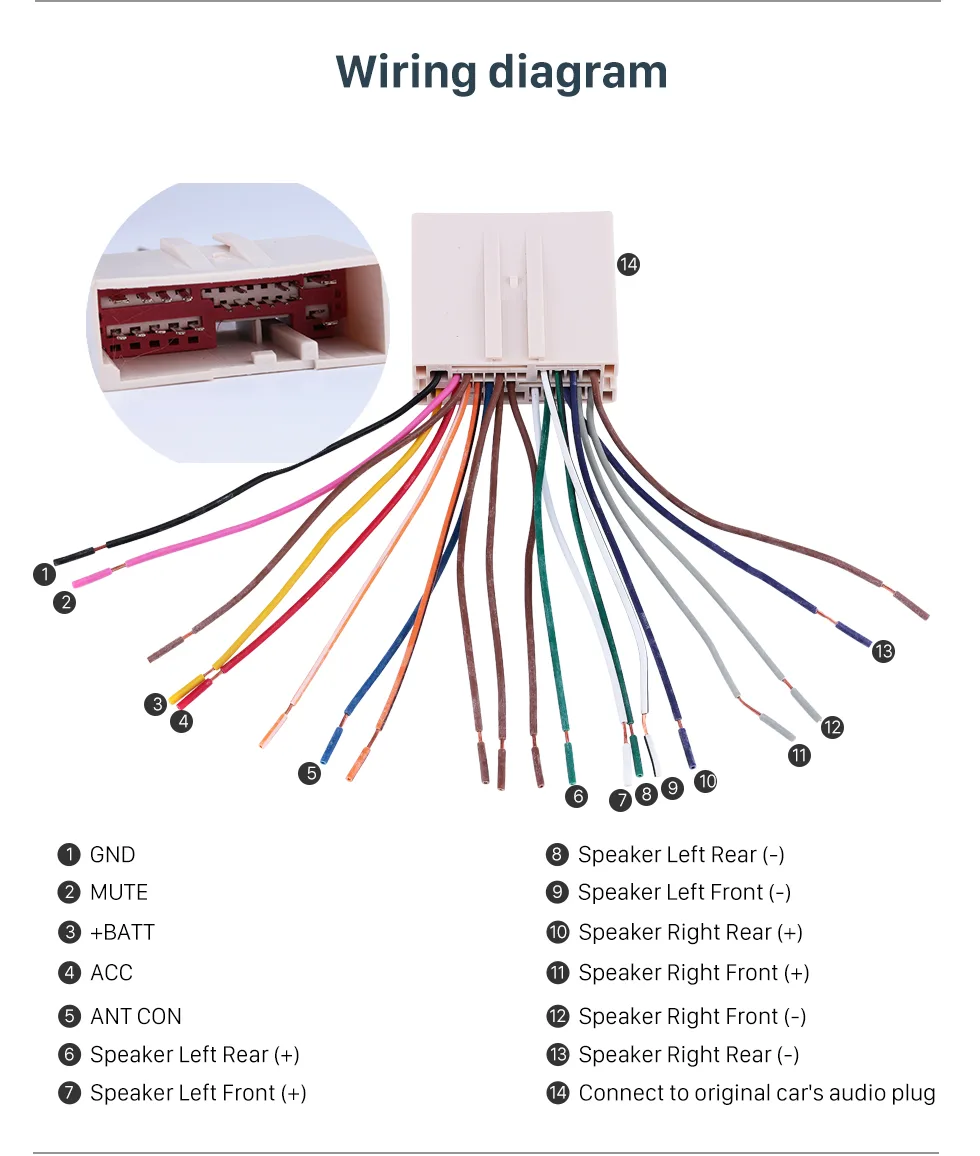

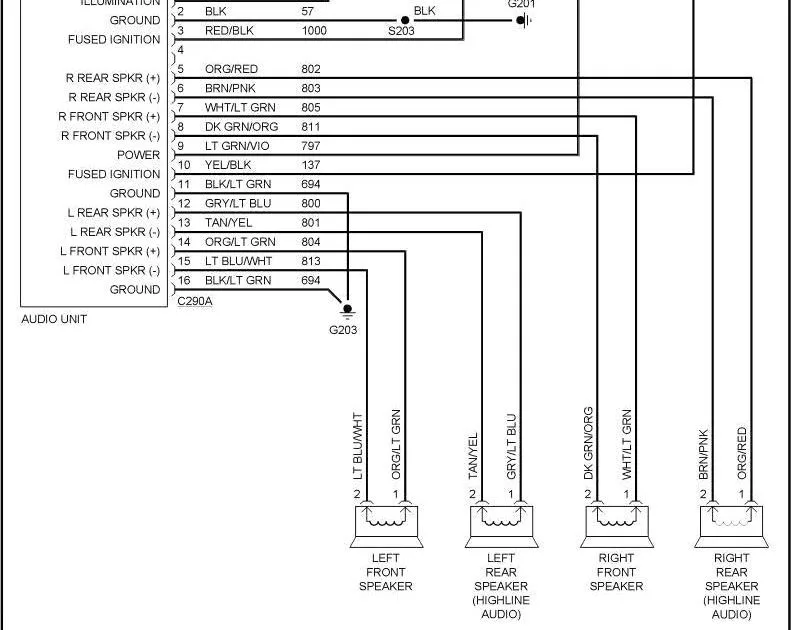

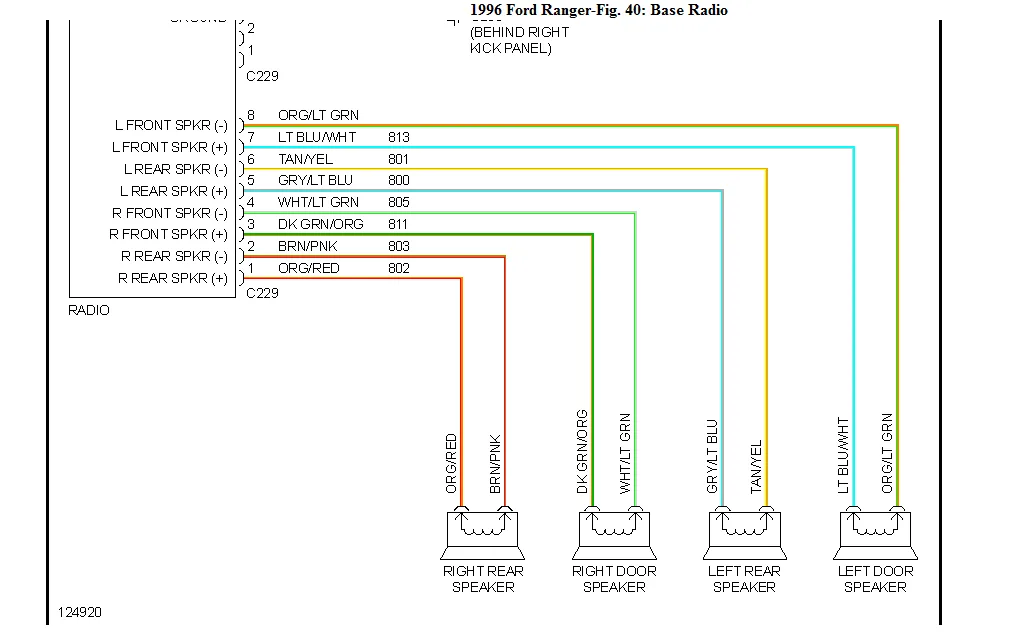

Wiring Diagram
| Wire Color | Function |
|---|---|
| Red | 12V Accessory |
| Yellow | 12V Constant |
| Black | Ground |
| Orange | Illumination |
| Blue | Amp Turn-On |
| White/White Stripe | Front Left Speaker |
| Gray/Gray Stripe | Front Right Speaker |
| Green/Green Stripe | Rear Left Speaker |
| Purple/Purple Stripe | Rear Right Speaker |
In conclusion, wiring the radio in a 99 Ford Ranger is not a complicated process if you follow the steps provided. Always ensure that you have the right tools and use a wiring diagram to guide you. Remember to disconnect the battery before you begin, and test the radio once you are done. With a little patience and attention to detail, you can have a new sound system in your pick-up truck.
