The 2001 Chevy Silverado is a popular truck model that many people love to customize. One of the most popular customizations is to install a new stereo system. However, installing a new stereo requires knowledge of the truck’s wiring system. In this article, we will discuss the 2001 Chevy Silverado stereo wiring diagram and how to install a new stereo in your truck.

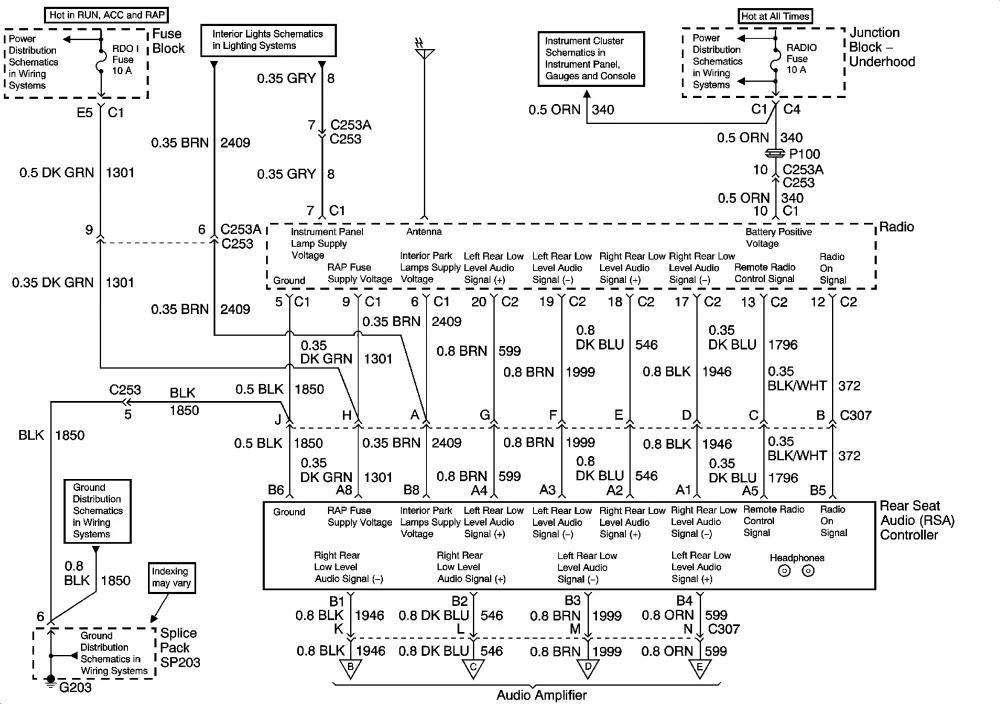

Understanding the Wiring Diagram
The 2001 Chevy Silverado’s stereo wiring diagram can be a bit confusing, especially if you are not familiar with wiring diagrams. However, once you understand the diagram, installing a new stereo will be a breeze. The diagram consists of various wires that connect different components of the stereo system. Each wire has a specific function, and it is essential to understand what each wire does to avoid any mistakes during the installation process.
Here is a breakdown of each wire’s function:
| Wire | Function |
|---|---|
| Yellow | Constant 12V+ |
| Red | Accessory 12V+ |
| Orange | Illumination |
| Black | Ground |
| Light Green | Right Front Speaker (+) |
| Dark Green | Right Front Speaker (-) |
| Gray | Left Front Speaker (+) |
| Dark Gray | Left Front Speaker (-) |
| Light Blue | Right Rear Speaker (+) |
| Dark Blue | Right Rear Speaker (-) |
| Tan | Left Rear Speaker (+) |
| Yellow | Left Rear Speaker (-) |
Installation Process
Now that you understand the wiring diagram, it is time to install a new stereo in your 2001 Chevy Silverado. Here is a step-by-step guide to help you:
Step 1: Disconnect the Battery
Before you start the installation process, you need to disconnect the battery to avoid any electrical shock or short circuit. Remove the negative or ground terminal first, and then the positive terminal.
Step 2: Remove the Trim Panel
Next, you need to remove the trim panel around the stereo system. Use a pry tool to remove the panel gently. Be careful not to scratch or damage the panel.
Step 3: Disconnect the Wiring Harnesses
Once you remove the panel, you will see the stereo system’s wiring harnesses. You need to disconnect the harnesses by pressing the release tabs and gently pulling them out.
Step 4: Connect the New Stereo’s Wiring Harnesses
After you disconnect the wiring harnesses, you need to connect the new stereo’s wiring harnesses to the truck’s wiring harnesses. Match the colors of each wire and connect them properly. Secure the connections with electrical tape or wire connectors.
Step 5: Install the New Stereo
Once you connect the wiring harnesses, you can install the new stereo system. Use a mounting kit to secure the stereo to the dashboard. Reconnect the negative and positive terminals to the battery.
FAQ
1. What if I don’t understand the wiring diagram?
If you don’t understand the wiring diagram, it is best to consult a professional installer. They can help you install the new stereo system properly and avoid any mistakes.
2. What if I accidentally connect the wrong wires?
If you accidentally connect the wrong wires, you can damage the stereo system or the truck’s electrical system. It is essential to double-check each connection before proceeding with the installation.
3. Can I install a new stereo without disconnecting the battery?
No, it is not recommended to install a new stereo system without disconnecting the battery. Disconnecting the battery will prevent any electrical shock or short circuit.
4. Do I need any special tools to install a new stereo?
You may need some basic tools such as a screwdriver, pry tool, wire cutters, and electrical tape. It is best to check the installation manual of the new stereo system to see what tools you need.
5. What if my truck’s wiring harness is different from the wiring diagram?
If your truck’s wiring harness is different from the wiring diagram, you may need to consult a professional installer or the manufacturer of the stereo system. They can help you find the correct wiring harness or provide you with a customized wiring diagram.
In conclusion, installing a new stereo system in your 2001 Chevy Silverado can be a fun and exciting project. However, it is essential to understand the wiring diagram and follow the installation process carefully. Remember to disconnect the battery before starting the installation, and always double-check each connection before proceeding. If you have any questions or concerns, consult a professional installer or the manufacturer of the stereo system.
