Adding a light bar to your off-roading vehicle is an exciting upgrade for any enthusiast. Not only does it improve visibility and safety during nighttime use, but it also enhances the vehicle’s appearance. But before you can enjoy the full benefits of a light bar, you need to ensure that it is installed correctly, and that includes wiring it correctly. In this article, we will guide you through the process of wiring a 12v light bar with a comprehensive wiring diagram, accompanied by frequently asked questions and tables for your convenience.
Part 1: Understanding the Basics
Before diving into the wiring diagram, you need to understand the basics of wiring a 12v light bar. Here are the essentials:
What is a 12v Light Bar?
A 12v light bar is a type of automotive lighting that produces intense illumination using high-powered LEDs (light-emitting diodes). They are commonly used in off-road vehicles for improved visibility during nighttime and low-light driving conditions.
Why is Proper Wiring Important?
Proper wiring of your light bar is essential for safety and optimal performance. Incorrect wiring can lead to damage to the light bar or even an electrical fire, risking your safety and investment.
What Tools Do You Need?
Here are the essential tools that you will need for wiring your 12v light bar:
| Tool | Description |
|---|---|
| Wire cutters/strippers | To remove the insulation from wires |
| Wrench | To tighten bolts and nuts |
| Screwdriver | To secure screws |
| Multimeter | To check voltage and continuity |
What Gauge Wire Do You Need?
The gauge wire that you need for your 12v light bar depends on the length of the wire and the amperage of the light bar. Here’s a general guideline:
| Wire Gauge | Amperage Rating | Length |
|---|---|---|
| 14-gauge wire | Less than 10 amps | Up to 5 feet |
| 12-gauge wire | 10-20 amps | 5-10 feet |
| 10-gauge wire | 20-30 amps | 10-15 feet |

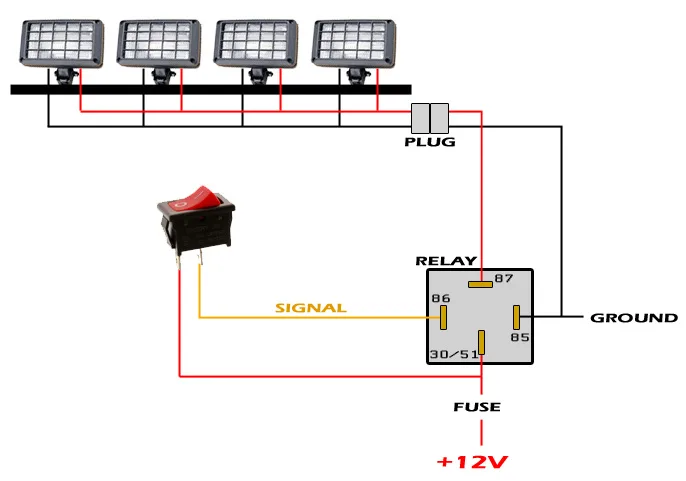

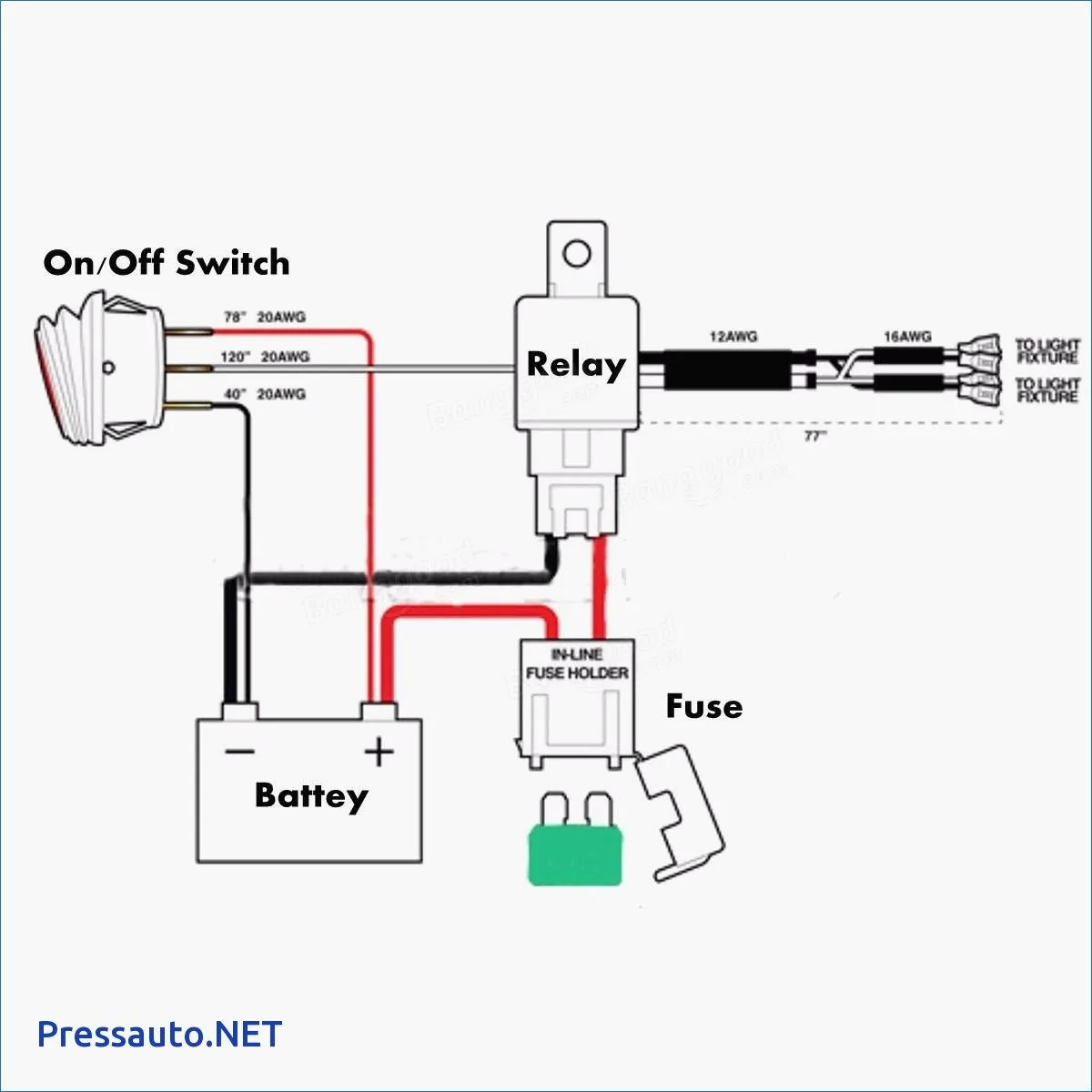

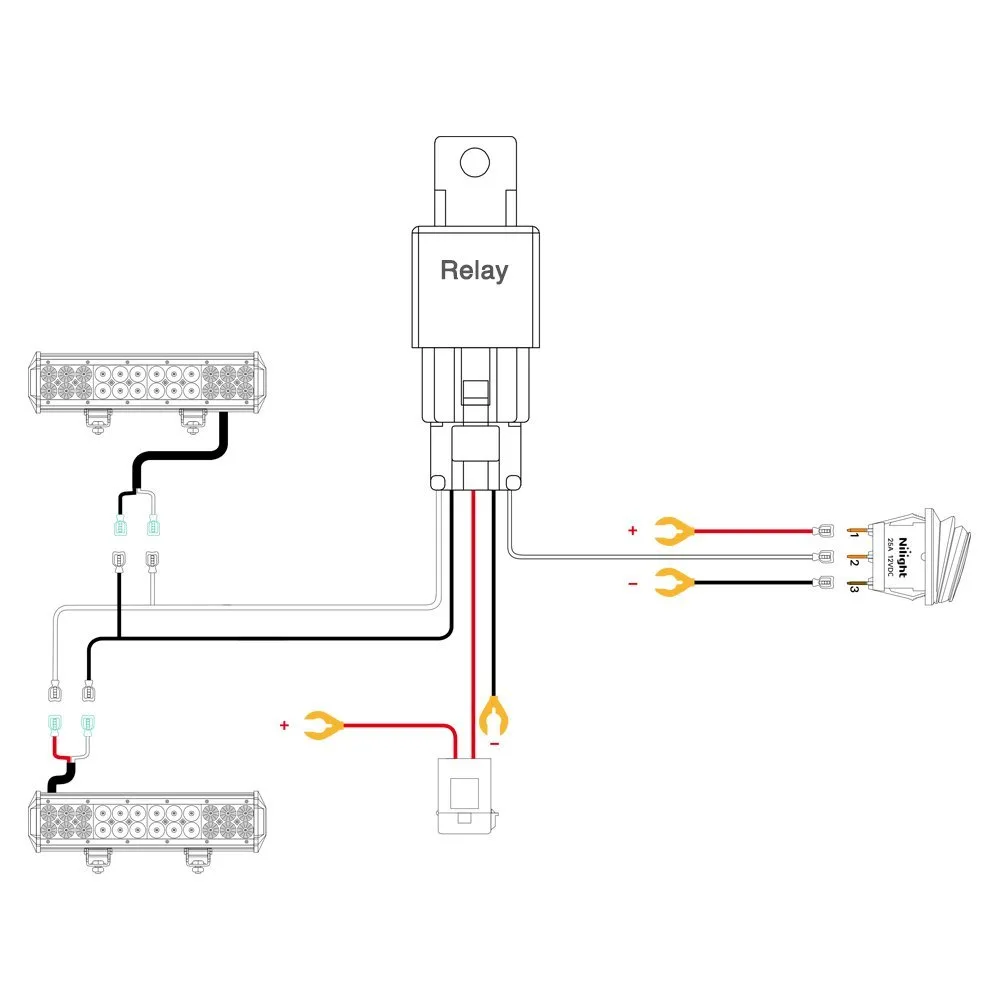

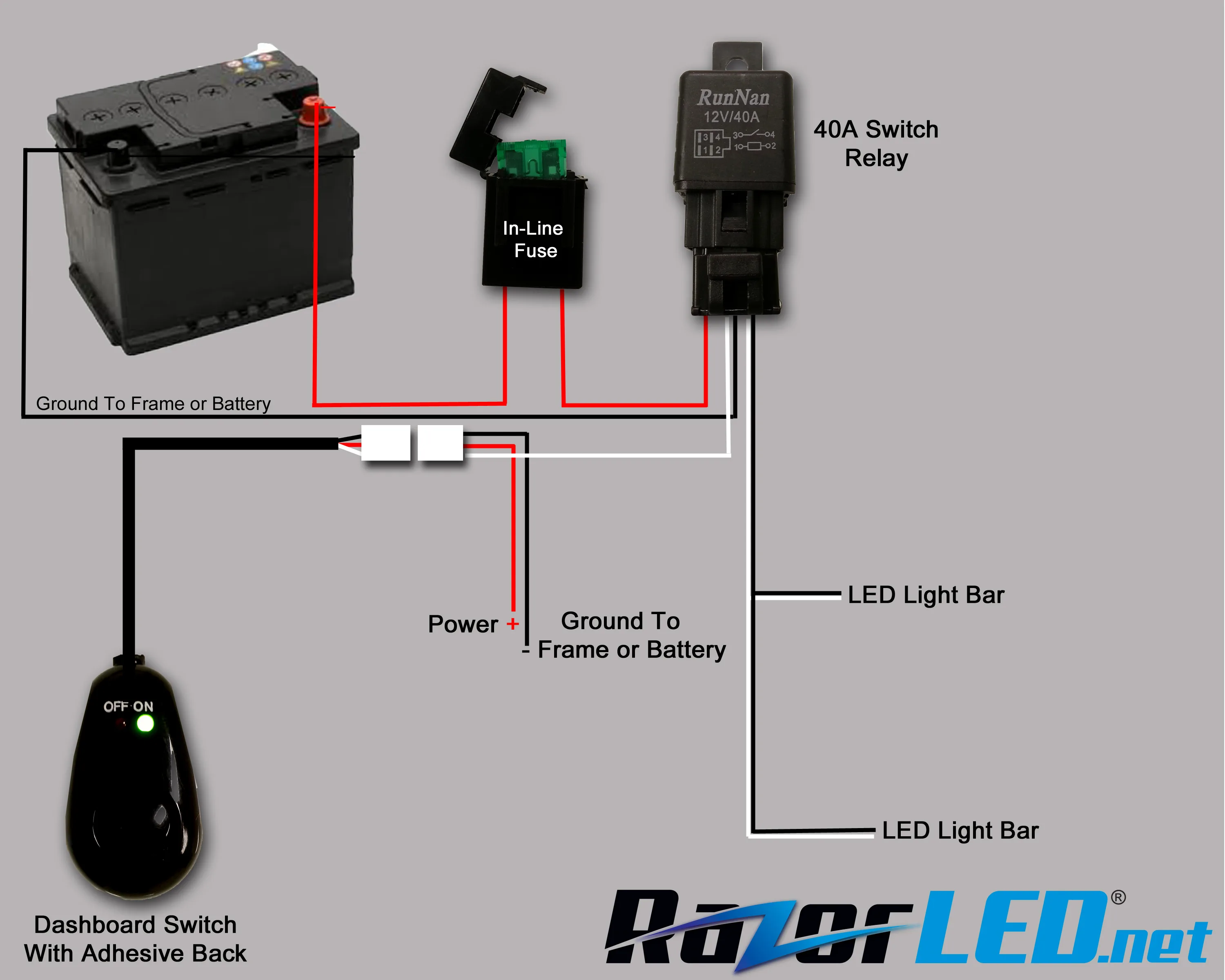

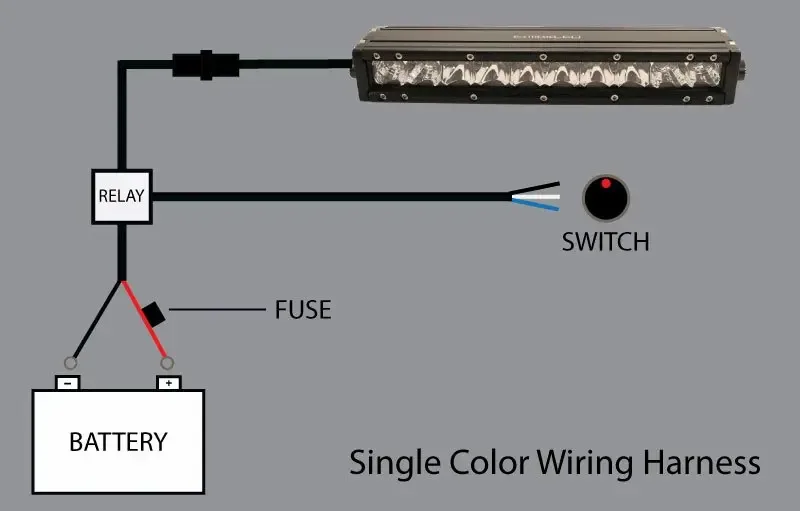

Part 2: Wiring Diagram

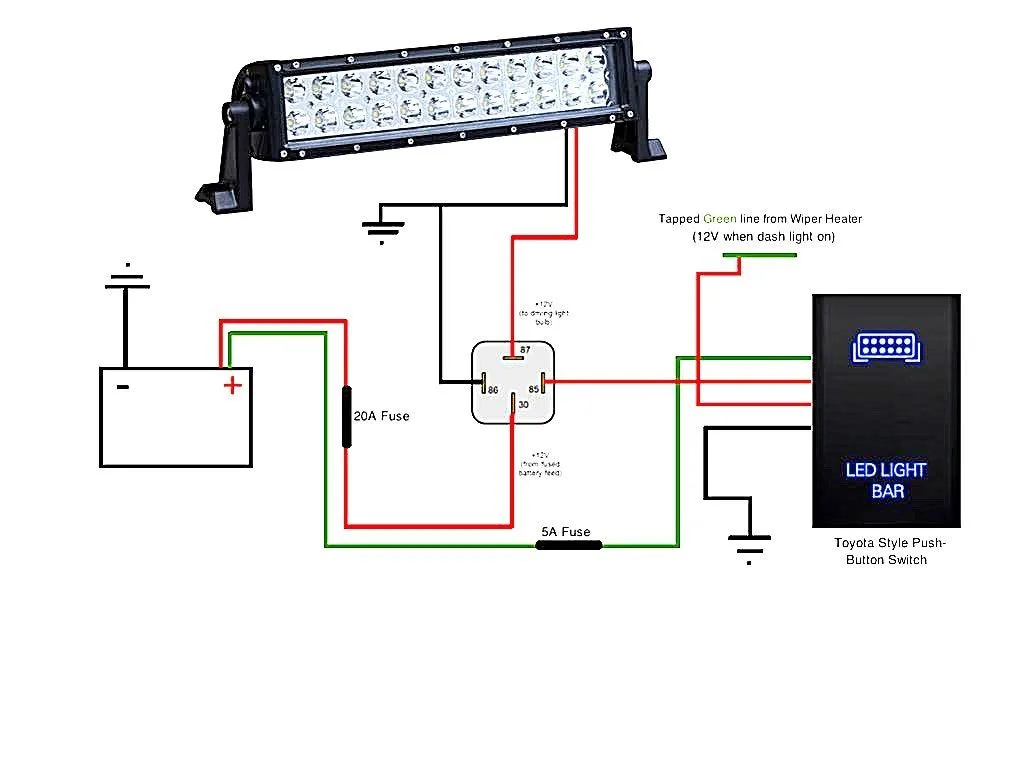

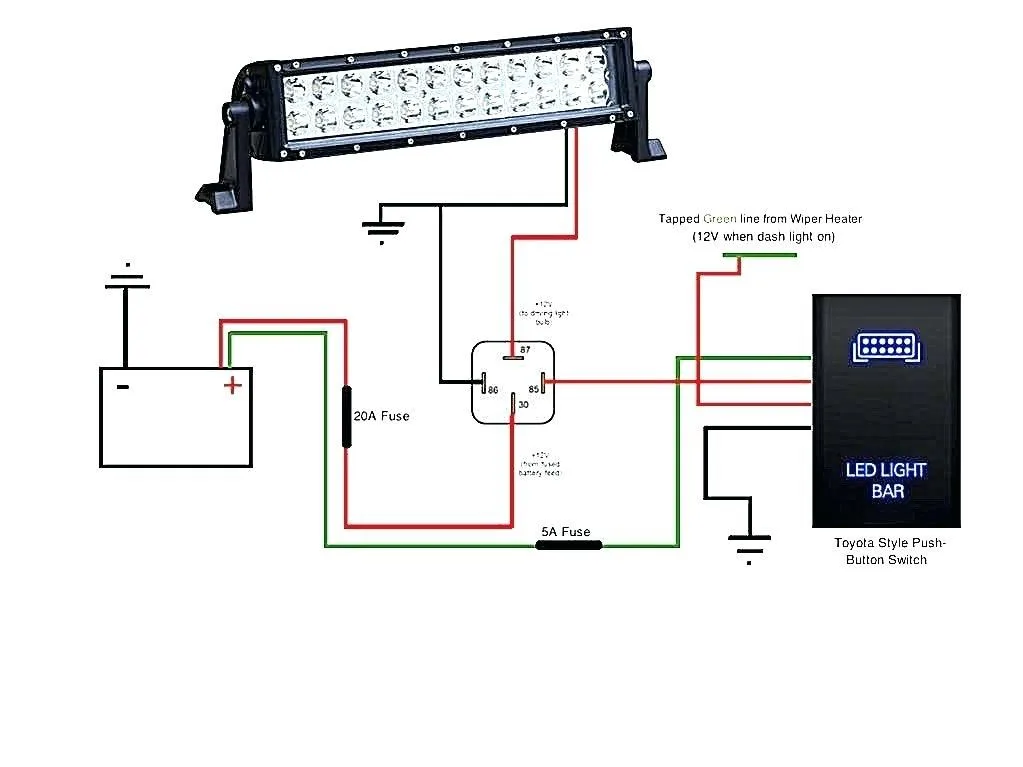

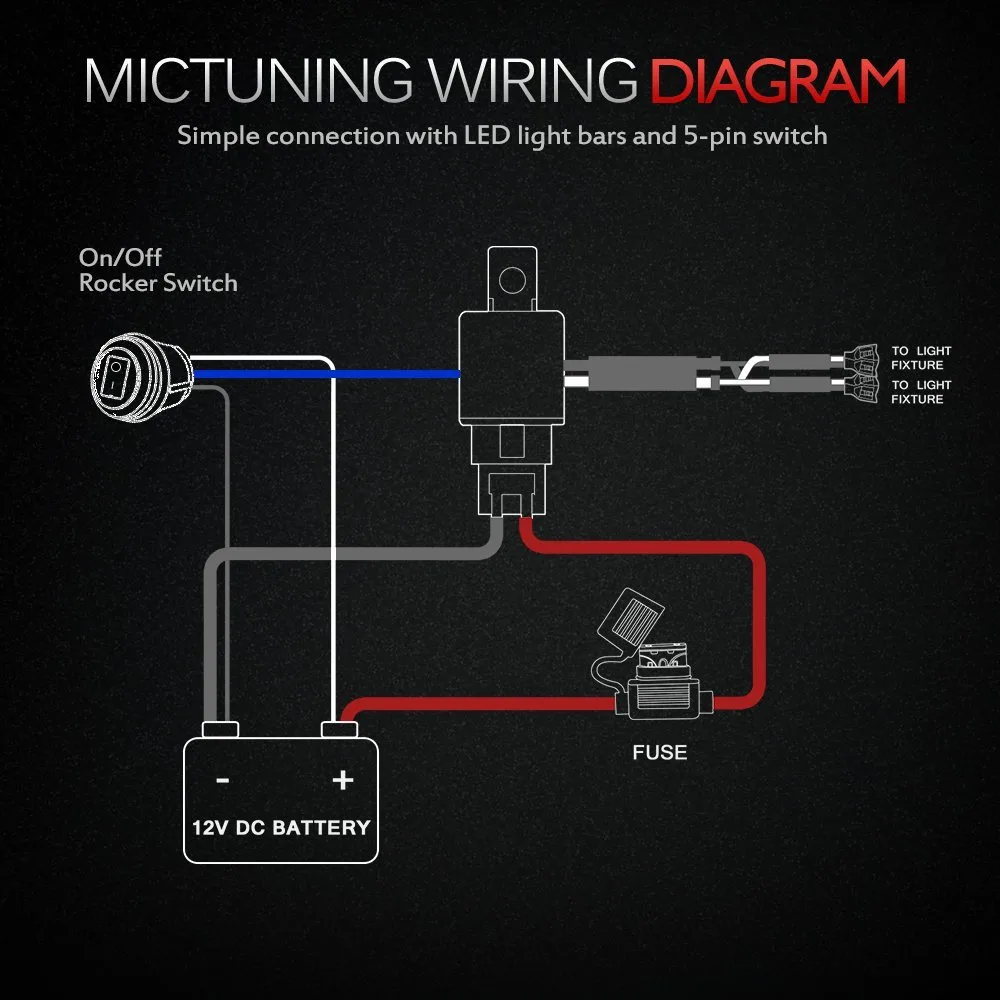

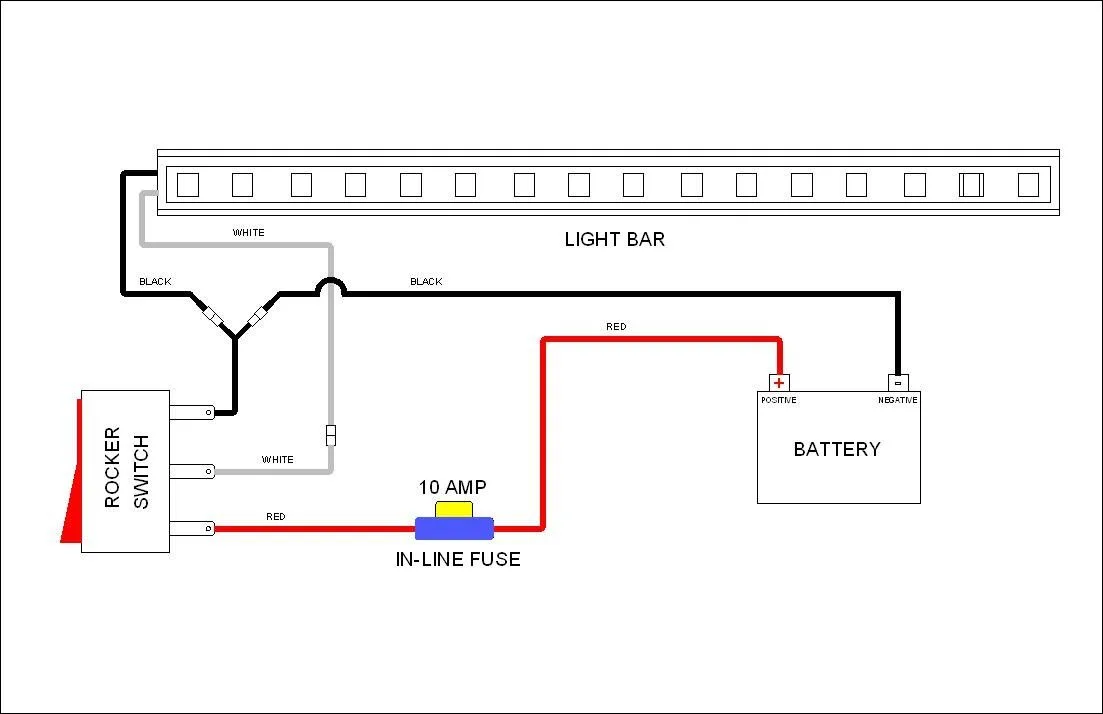

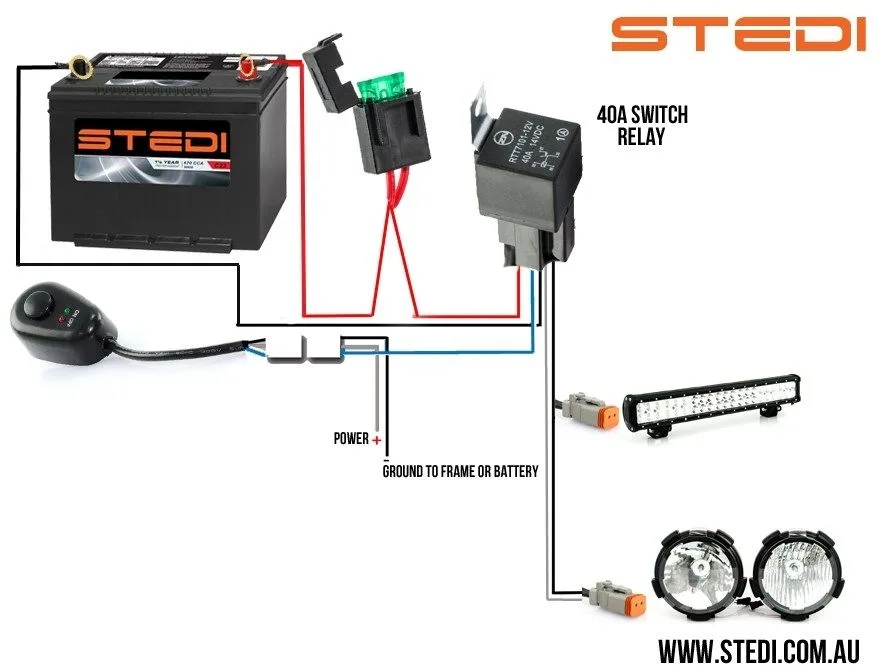

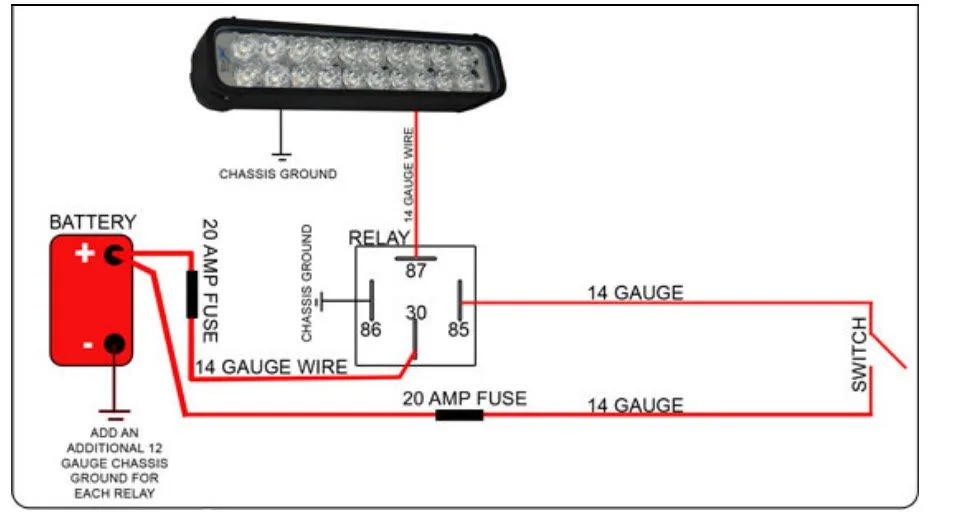

Now that you understand the basics, let’s move on to the wiring diagram. Here’s a step-by-step guide to wiring your 12v light bar:
Step 1: Choose a Suitable Location
Choose a suitable location for your light bar that doesn’t interfere with the vehicle’s aerodynamics or safety features. Once you’ve chosen a location, secure your light bar using the mounting brackets and hardware provided with your light bar.
Step 2: Connect the Wiring Harness
Connect the wiring harness to the light bar by plugging in the connectors. The red wire should be connected to the positive terminal of the light bar, and the black wire should be connected to the negative terminal.

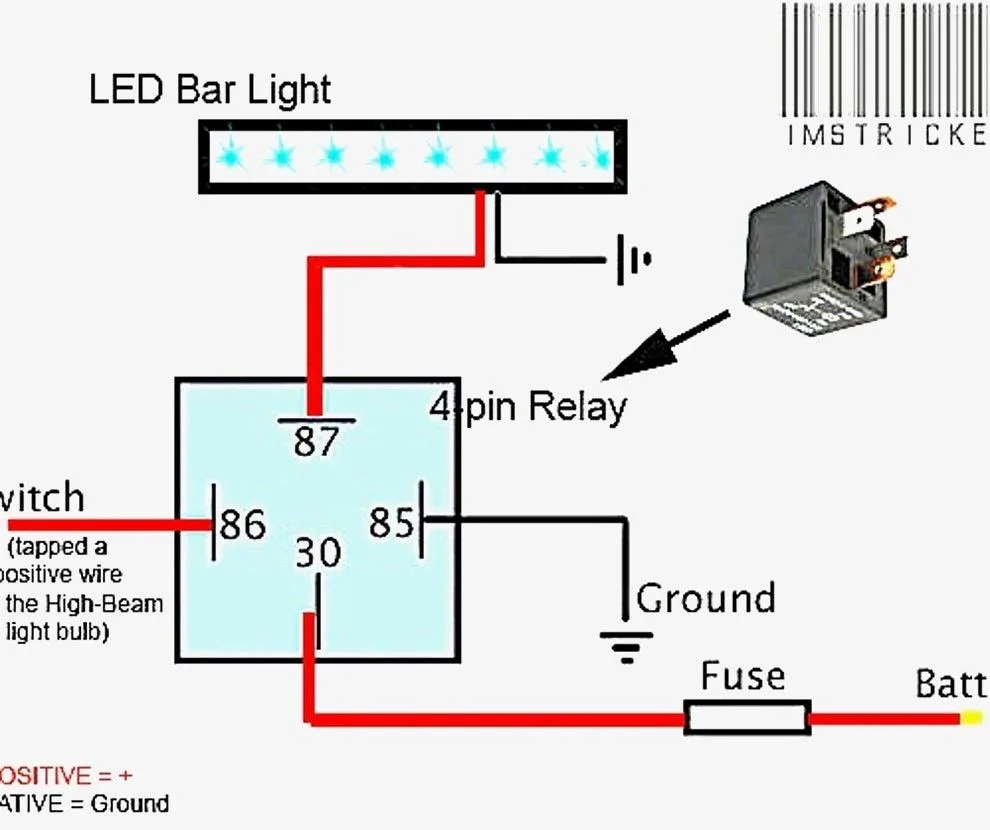

Step 3: Connect the Relay
Connect the relay to the positive and negative terminals of your vehicle’s battery. Connect the red wire of the relay to the positive terminal, and the black wire to the negative terminal.

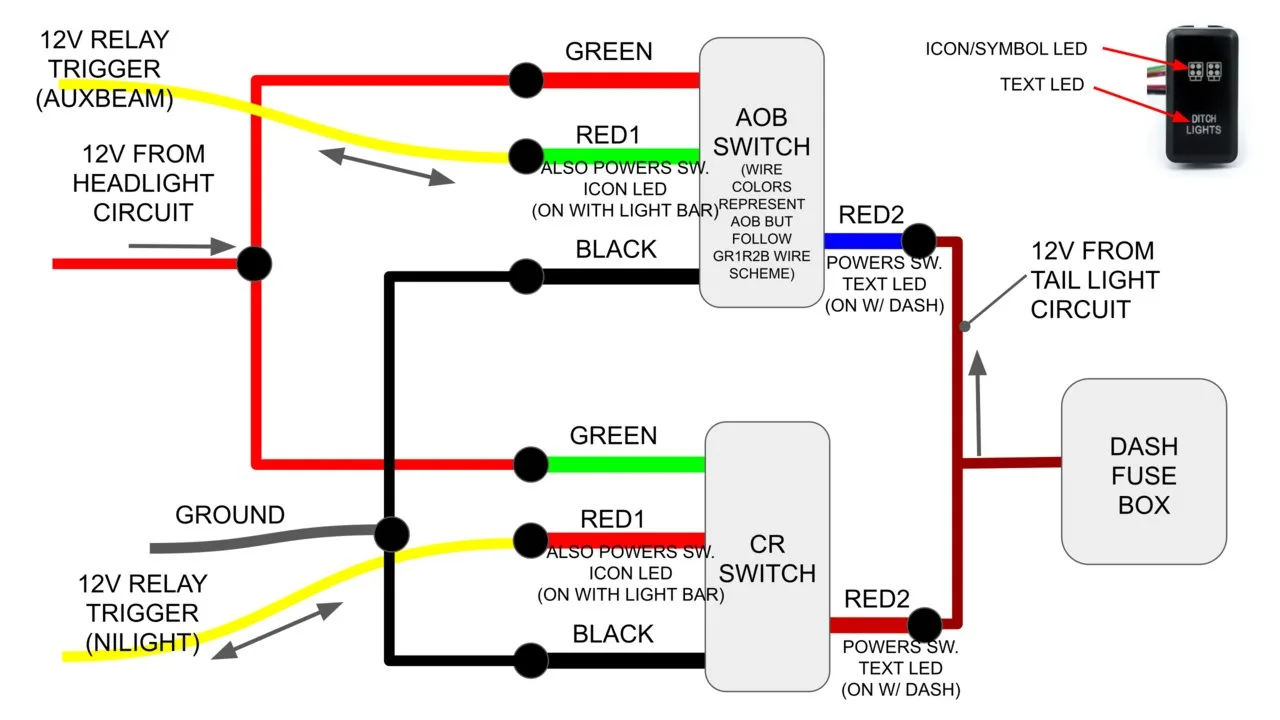

Step 4: Connect the Switch
Connect the switch to the relay by connecting the red wire to the input terminal and the black wire to the negative terminal.
Step 5: Connect the Fuse
Connect the fuse to the red wire of the relay, and then connect it to the positive terminal of the battery.
Step 6: Test your Connection
Test your connection by turning on the light bar. If it works, your wiring is successful. If it doesn’t, check your wiring connections and troubleshoot as needed.
Part 3: Frequently Asked Questions (FAQs)
Q: Do I need a wiring harness for my light bar?
A: Yes, a wiring harness is necessary for connecting your light bar to your vehicle’s electrical system. It ensures safe and reliable power delivery for your light bar.

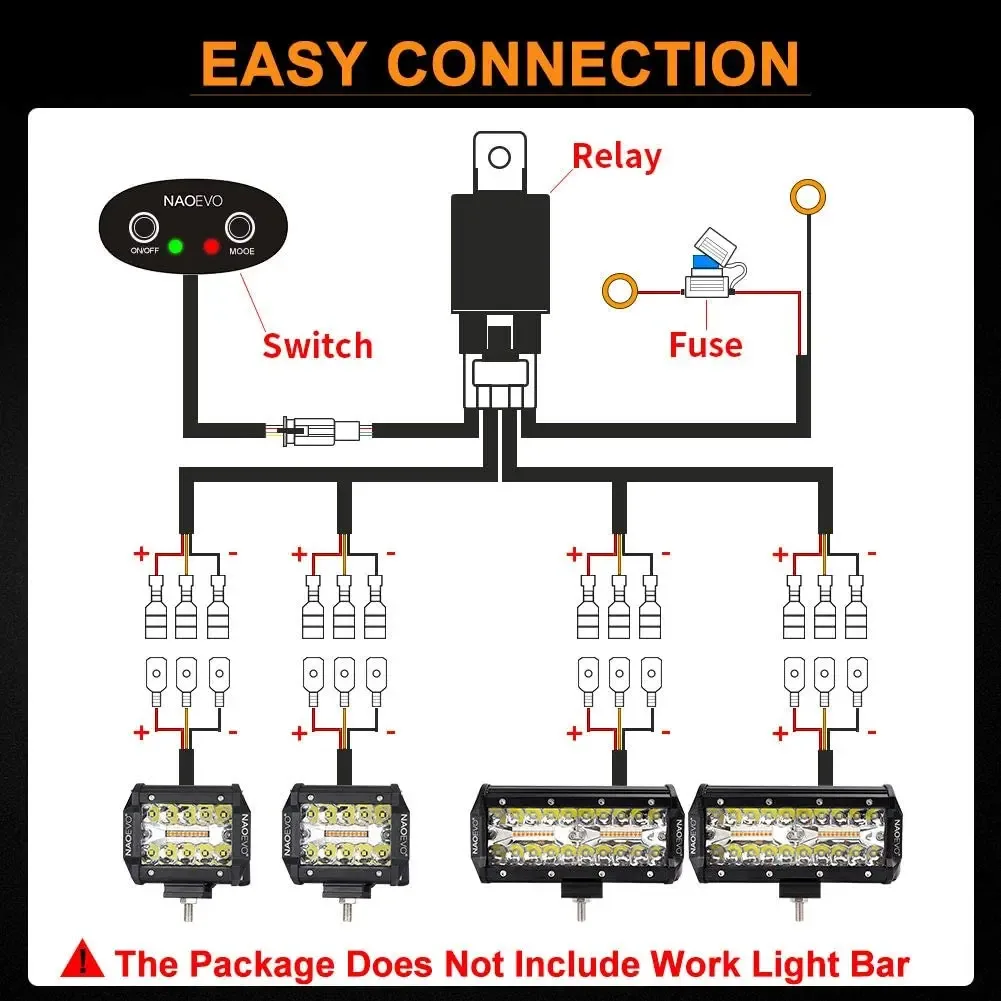

Q: Can I connect multiple light bars to one switch?
A: Yes, multiple light bars can be connected to one switch as long as the switch and the relay can handle the total amperage of the light bars. Consult your light bar manual for the amperage rating, and choose a switch and relay that can handle the total amperage.
Q: How do I know which wire goes where?
A: Refer to the wiring diagram provided with your light bar, switch, and relay. Make sure to double-check your wiring connections before testing your light bar.
Q: Do I need to use a specific type of wire for my light bar?
A: Yes, you should use stranded copper wire that is designed for automotive use. Avoid using solid wires, as they are more prone to breaking and can cause electrical issues.
Conclusion
Wiring a 12v light bar doesn’t have to be daunting, especially if you follow the step-by-step guide we provided, complete with a comprehensive wiring diagram and frequently asked questions. Remember to prioritize safety when wiring your light bar, and never hesitate to seek professional help if you’re unsure about any step of the process. With proper wiring, you’ll enjoy the full benefits of your 12v light bar and enhance your off-roading experience.
