Ceiling fans are a popular addition to many homes, providing a cooling breeze in the summer and circulating warm air in the winter. However, when it comes to installing a new ceiling fan, it’s important to know the correct wiring diagrams to ensure the fan operates safely and efficiently. This article will provide a detailed guide on wiring diagrams for ceiling fans, including common wiring methods, types of switches, and frequently asked questions.
Wiring Methods
Before starting any wiring project, it’s essential to turn off the power to the circuit. The following are the most common wiring methods for ceiling fans:
Standard Wiring Method
The standard wiring method involves connecting the wires from the ceiling fan to the corresponding wires in the ceiling box. The wires should be connected as follows:
| Ceiling Fan | Ceiling Box |
|---|---|
| Black (Hot) | Black (Hot) |
| White (Neutral) | White (Neutral) |
| Green or Bare (Ground) | Green or Bare (Ground) |
It’s important to note that some ceiling fans may have additional wires, such as a blue wire for a light kit. Be sure to consult the manufacturer’s wiring diagram to ensure all wires are connected correctly.
Two-Switch Wiring Method
The two-switch wiring method involves using two separate switches to control the ceiling fan and light kit. The wires should be connected as follows:
| Ceiling Fan | Switch 1 | Switch 2 | Ceiling Box |
|---|---|---|---|
| Black (Hot) | Connected to Switch 1 Black (Hot) | Connected to Switch 2 Black (Hot) | Black (Hot) |
| White (Neutral) | Connected to Switch 1 White (Neutral) | Connected to Switch 2 White (Neutral) | White (Neutral) |
| Green or Bare (Ground) | Connected to Switch 1 Green or Bare (Ground) | Connected to Switch 2 Green or Bare (Ground) | Green or Bare (Ground) |
| Blue (Light Kit) | Connected to Switch 1 Red (Hot) | N/A | N/A |
It’s important to note that the blue wire for the light kit must be connected to the red wire on switch 1, not the black wire.

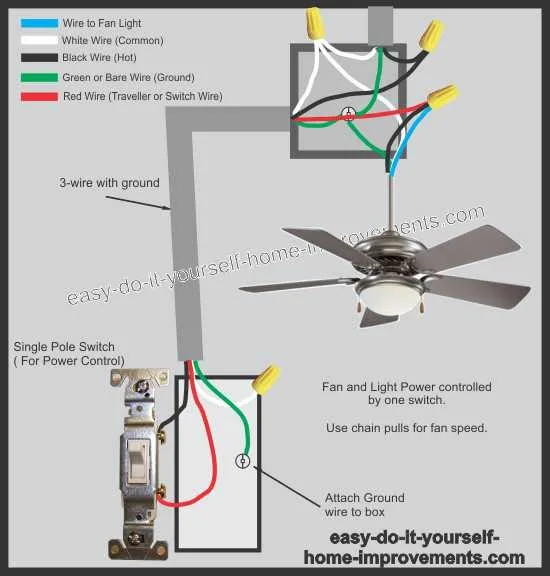

Single-Switch Wiring Method
The single-switch wiring method involves using one switch to control both the ceiling fan and light kit. The wires should be connected as follows:
| Ceiling Fan | Switch | Ceiling Box |
|---|---|---|
| Black (Hot) | Switch (Hot) | Black (Hot) |
| White (Neutral) | Switch (Neutral) | White (Neutral) |
| Green or Bare (Ground) | Switch (Ground) | Green or Bare (Ground) |
| Blue (Light Kit) | Switch (Hot) | N/A |
Types of Switches
There are several types of switches used in ceiling fan wiring, including:
Single-Pole Switch
A single-pole switch is the most common type of switch and is used to control the power to a single circuit. This switch has two terminals and is either on or off.
Three-Way Switch
A three-way switch is used when there are two switches controlling one circuit. This switch has three terminals and can be on or off from either switch.
Four-Way Switch
A four-way switch is used when there are three or more switches controlling one circuit. This switch has four terminals and can be on or off from any of the switches.
FAQ
What are the most common ceiling fan wiring problems?
The most common ceiling fan wiring problems include incorrect connections, loose wires, and faulty switches. It’s important to follow the manufacturer’s wiring diagram and double-check all connections before turning on the power.
Can I install a ceiling fan without a wiring box?
No, a wiring box is required to safely and securely mount the ceiling fan and make the necessary electrical connections. It’s important to use a UL-listed wiring box and mount it securely to the ceiling joist.
Can I use any type of switch for my ceiling fan?
No, it’s important to use switches specifically designed for ceiling fans. These switches are rated for the higher current draw required by the fan and are designed to control both the fan and light kit separately.
Do I need a separate circuit for my ceiling fan?
No, a ceiling fan can be connected to an existing circuit as long as the circuit is rated for the additional load of the fan. It’s important to consult an electrician if you’re unsure if your circuit can handle the load.
What are the benefits of installing a ceiling fan?
Installing a ceiling fan can provide several benefits, including improved air circulation, energy savings, and added comfort. In the summer, a ceiling fan can help reduce the need for air conditioning by creating a cooling breeze, while in the winter, it can circulate warm air to improve heating efficiency.
Conclusion
Wiring a ceiling fan may seem like a daunting task, but with the proper wiring diagrams and knowledge of switch types, it can be a straightforward process. Always be sure to turn off the power before starting any wiring project and consult the manufacturer’s wiring diagram for your specific fan. With a new ceiling fan installed and wired correctly, you can enjoy improved air flow and added comfort in your home.
