Electric water heaters are widely used in households to provide hot water for daily use. Proper wiring is essential to ensure the safe functioning of an electric water heater. In this article, we will discuss the wiring diagram for an electric water heater and provide answers to frequently asked questions.
Wiring Diagram for Electric Water Heater

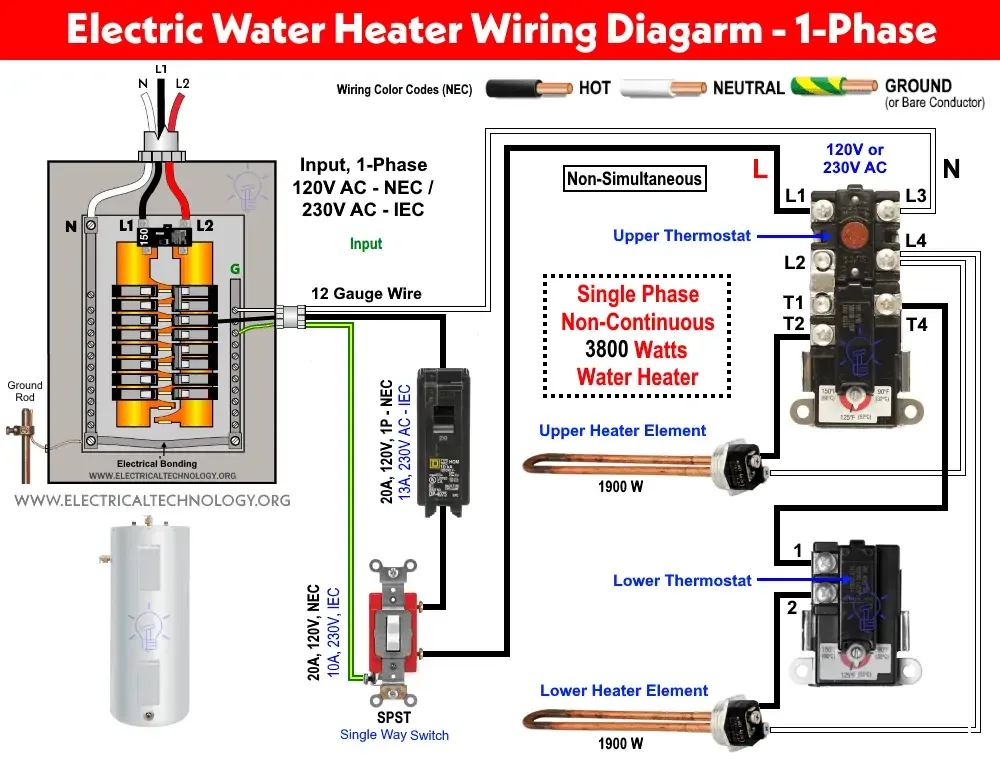

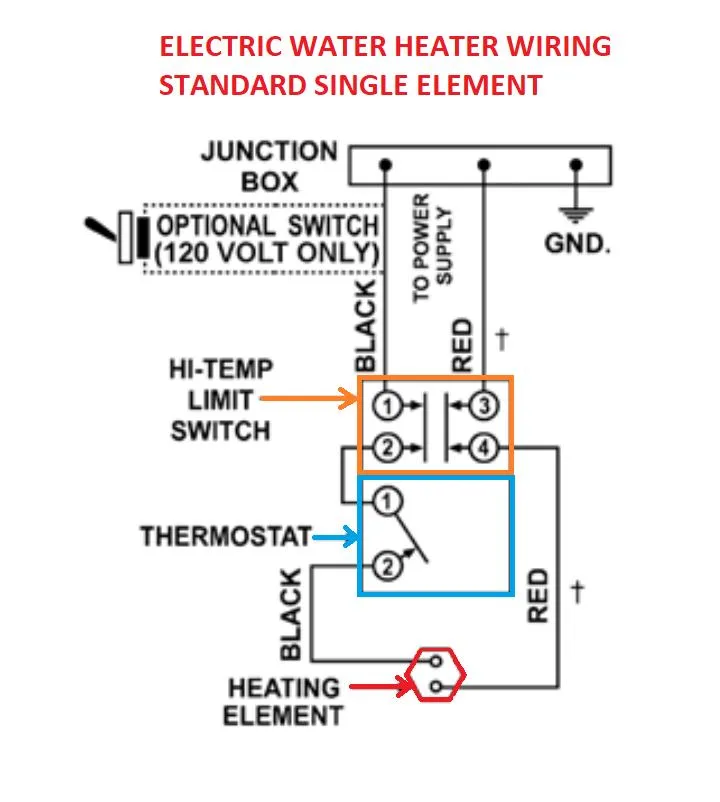

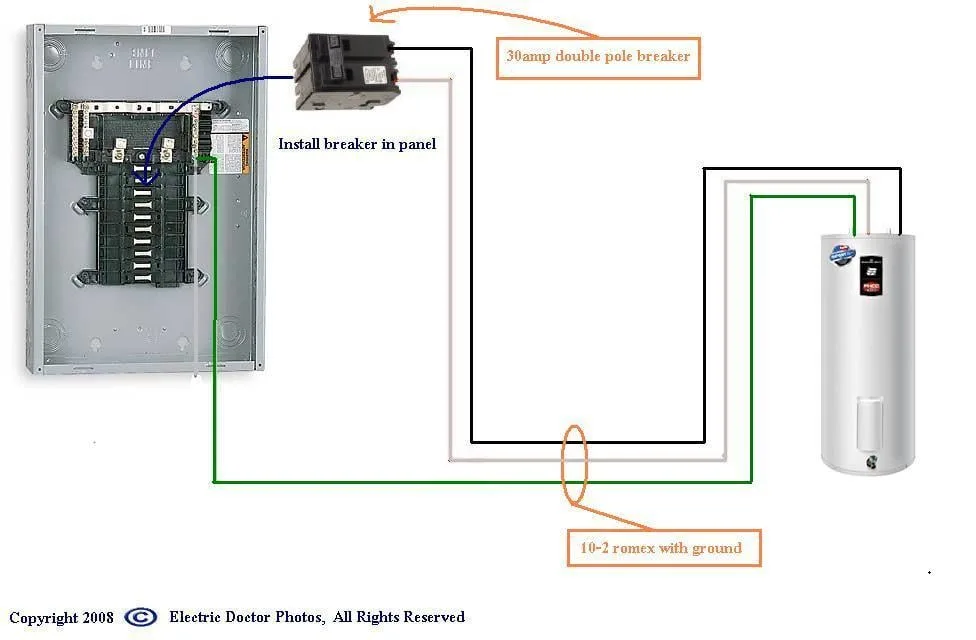

The following is a typical wiring diagram for an electric water heater:
| Wire Color | Function |
|---|---|
| Black | Hot |
| Red | Hot |
| White | Neutral |
| Green or bare copper | Ground |
The black and red wires are connected to the two hot terminals of the water heater. The white wire is connected to the neutral terminal, and the green or bare copper wire is connected to the ground terminal. It is important to follow this wiring diagram and to ensure that the wiring is done correctly.
Step-by-Step Guide for Wiring an Electric Water Heater
Here is a step-by-step guide for wiring an electric water heater:
- Turn off the power supply to the water heater.
- Remove the access panels from the water heater.
- Disconnect the old wiring from the terminals on the water heater.
- Connect the new wiring according to the wiring diagram for the water heater.
- Secure the wiring with cable clamps.
- Replace the access panels on the water heater.
- Turn on the power supply to the water heater.
- Test the water heater to ensure that it is working properly.
FAQ
What size wire do I need for an electric water heater?
The wire size you need for an electric water heater depends on the wattage of the water heater and the length of the wire run. Most electric water heaters require a 10-gauge wire. However, if the wire run is more than 50 feet, you may need to use a larger gauge wire.
What breaker size do I need for an electric water heater?

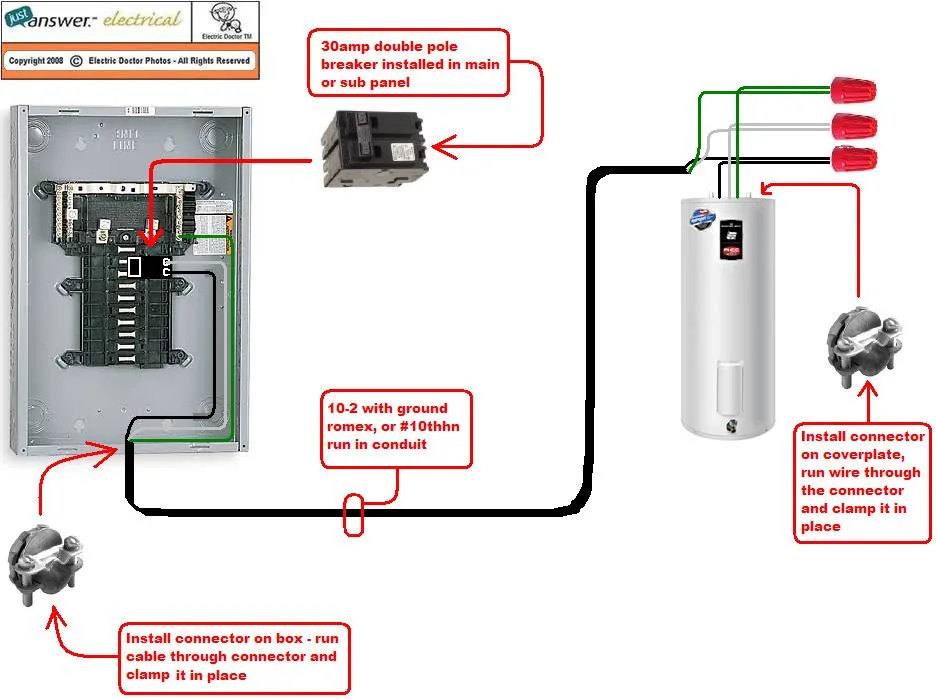

The breaker size you need for an electric water heater depends on the wattage of the water heater. A 240-volt, 4500-watt water heater requires a 30-amp breaker. Check the manufacturer’s specifications for the correct breaker size.
How do I test the heating elements in an electric water heater?
To test the heating elements in an electric water heater, turn off the power supply to the water heater and remove the access panels. With a multimeter, check the resistance of each heating element. The resistance should be between 10 and 30 ohms. If the resistance is outside of this range, the heating element needs to be replaced.
What is the lifespan of an electric water heater?
The lifespan of an electric water heater is typically 8 to 12 years. Proper maintenance, such as flushing the tank annually and replacing the anode rod every 3 to 5 years, can extend the lifespan of the water heater.
What should I do if my electric water heater is not heating?
If your electric water heater is not heating, check the power supply to the water heater and make sure the circuit breaker has not tripped. If the power supply is good, check the heating elements and thermostat. If these components are working properly, the problem may be with the control board or wiring, and it may be necessary to call a professional to diagnose and repair the problem.
How can I save energy with my electric water heater?
To save energy with your electric water heater, set the thermostat to 120°F (49°C) or lower. Insulate the hot water pipes and the water heater tank to reduce heat loss. Take shorter showers and use low-flow showerheads to reduce hot water consumption.
Conclusion
Proper wiring is essential to ensure the safe and efficient functioning of an electric water heater. By following the wiring diagram and instructions in this article, you can wire your electric water heater correctly and with confidence. If you have any questions or concerns, consult a licensed electrician.
