If you are looking for a fuse box diagram for your Nissan Pathfinder, then you have come to the right place. This journal article will provide you with all the information you need to locate and identify the fuses in your Pathfinder, and will also give you some tips on how to replace a blown fuse.
What is a Fuse Box?
A fuse box is a vital component of your vehicle’s electrical system. It contains a series of fuses that protect the different circuits in your car from electrical surges or overloads. When there is too much current flowing through a circuit, the fuse will blow, interrupting the flow of electricity and preventing damage to your car’s electrical components.
The fuse box in your Nissan Pathfinder is located under the dashboard on the driver’s side. It can be accessed by opening the driver’s side door and pulling off the side panel cover.
Identifying Fuses in your Pathfinder

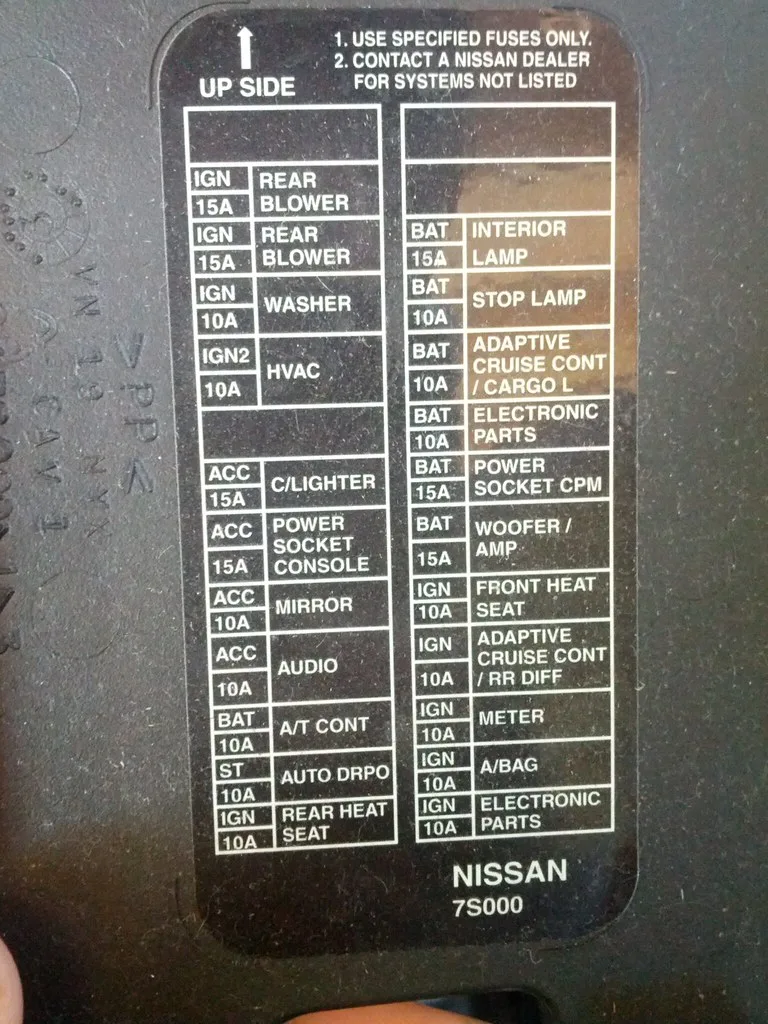

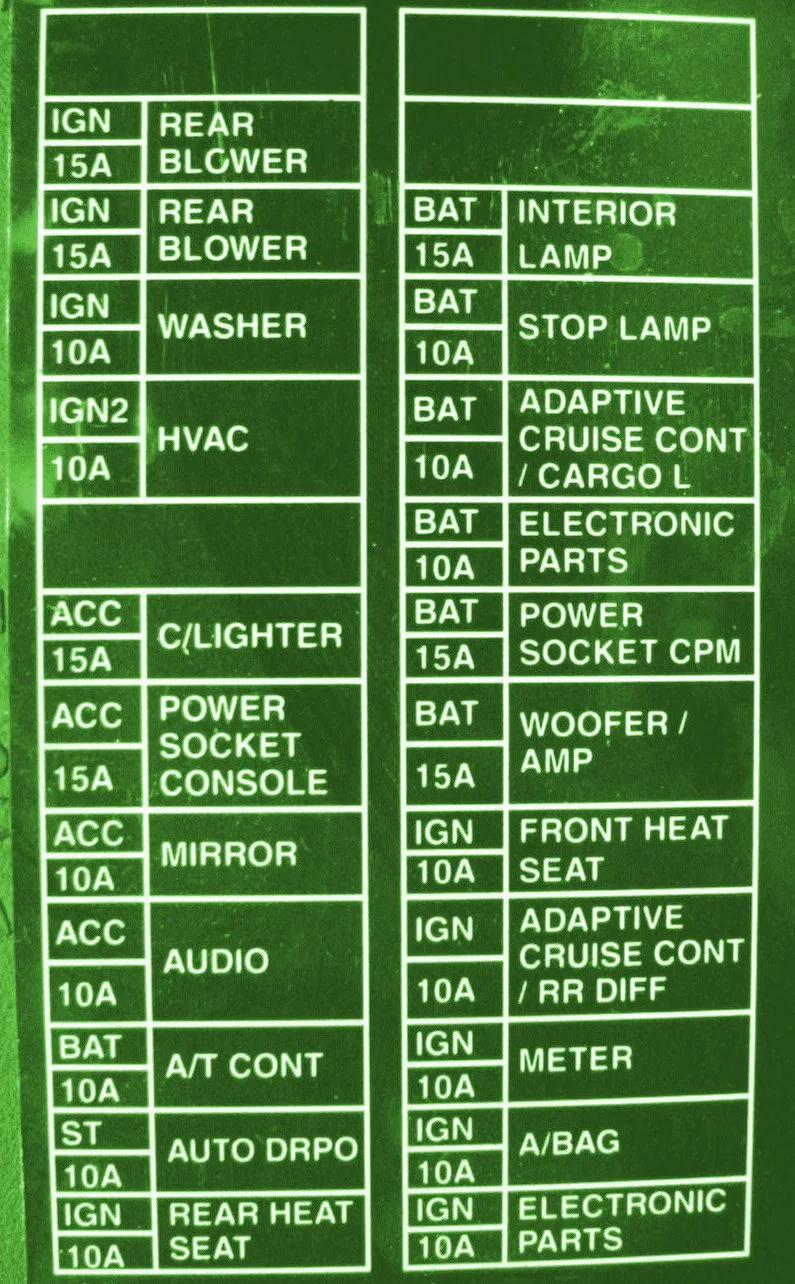

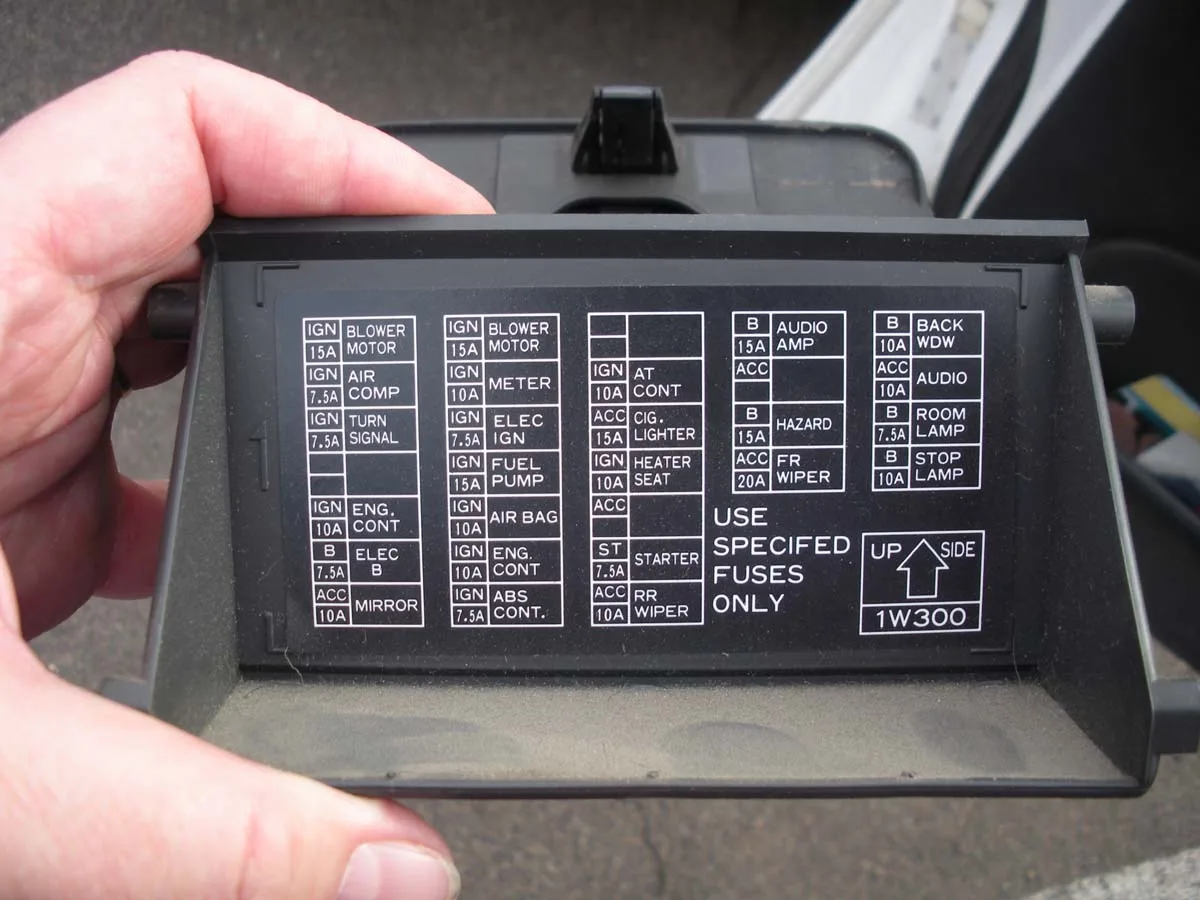

Once you have located the fuse box, you will need to identify which fuse corresponds to which electrical component in your vehicle. The fuses in your Pathfinder are labeled and color-coded according to their amperage and the circuit they protect. Here is a quick guide to help you locate the fuses you need:
| Fuse | Amperage | Color | Circuit |
|---|---|---|---|
| 1 | 10A | Red | Right Headlight |
| 2 | 10A | Red | Left Headlight |
| 3 | 7.5A | Brown | Front Wiper Motor |
| 4 | 7.5A | Brown | Rear Wiper Motor |
| 5 | 10A | Red | Stop Lamp |
How to Replace a Blown Fuse in your Pathfinder
If you have identified a blown fuse in your Pathfinder, it is important to replace it as soon as possible. Here are the steps you need to follow:
Step 1: Identify the Fuse. Once you have located the fuse box and identified the blown fuse, make a note of its location and amperage rating.
Step 2: Disconnect the Battery. Before you start working on your vehicle’s electrical system, it is important to disconnect the negative terminal of the battery to prevent any accidental short circuits.
Step 3: Remove the Blown Fuse. Use a fuse puller or pliers to carefully remove the blown fuse from the fuse box.
Step 4: Insert the New Fuse. Take the new fuse and insert it into the corresponding slot in the fuse box. Make sure it is securely in place.
Step 5: Reconnect the Battery. Reconnect the negative terminal of the battery and start your vehicle. Check to make sure the electrical component that was not working is now functioning properly.
Frequently Asked Questions
What is the Amperage Rating of the Fuses in my Pathfinder?
The amperage rating of the fuses in your Pathfinder can vary, depending on the circuit they protect. Most common fuses are rated between 5 and 30 amps.
How do I Know if a Fuse is Blown?
If an electrical component in your Pathfinder is not working, it may be due to a blown fuse. To check if a fuse is blown, you can use a multimeter or visually inspect the fuse for any signs of damage, such as a melted or broken filament.
Can I Replace a Blown Fuse with a Higher Amperage Fuse?
No. It is important to only replace blown fuses with fuses of the same amperage rating. Using a higher amperage fuse can cause damage to your car’s electrical system and components.
What Should I Do if I Cannot Locate the Blown Fuse?
If you have checked all the fuses in your Pathfinder and still cannot locate the blown fuse, it may be due to a more serious electrical issue. In this case, it is best to take your vehicle to a qualified mechanic for diagnosis and repair.
