If you own a Mazda Tribute and are experiencing electrical issues, it may be due to a blown fuse. In this article, we will discuss the Mazda Tribute fuse diagram and provide helpful information to assist you in identifying and replacing blown fuses.
Understanding the Mazda Tribute Fuse Box
The Mazda Tribute fuse box is located in the engine compartment on the driver’s side. It houses several fuses that control various electrical components in your vehicle. The fuse box cover has a legend that indicates which fuse controls which component.
When a fuse blows, the component it controls will stop working. This can be frustrating, especially if it is an essential component such as the air conditioning or windshield wipers. The good news is that replacing a blown fuse is a straightforward process.
How to Check a Blown Fuse
If you are experiencing electrical issues in your Mazda Tribute, the first thing you should do is check the fuses. Here’s how:
- Turn off your vehicle and open the hood.
- Locate the fuse box on the driver’s side of the engine compartment.
- Remove the fuse box cover.
- Refer to the legend on the cover to identify the fuse that controls the component that is not working.
- Inspect the fuse to see if it is blown. If the metal inside the fuse is broken, the fuse is blown.
How to Replace a Blown Fuse
Replacing a blown fuse is quick and easy. Here’s how:
- Identify the fuse that is blown.
- Using a fuse puller or pair of pliers, gently pull the fuse out of the fuse box.
- Insert a new fuse of the same amperage rating as the blown fuse.
- Replace the fuse box cover.
It is essential to replace a blown fuse with a fuse of the same amperage rating. Using a higher-rated fuse can cause electrical damage to your vehicle and create a fire hazard.

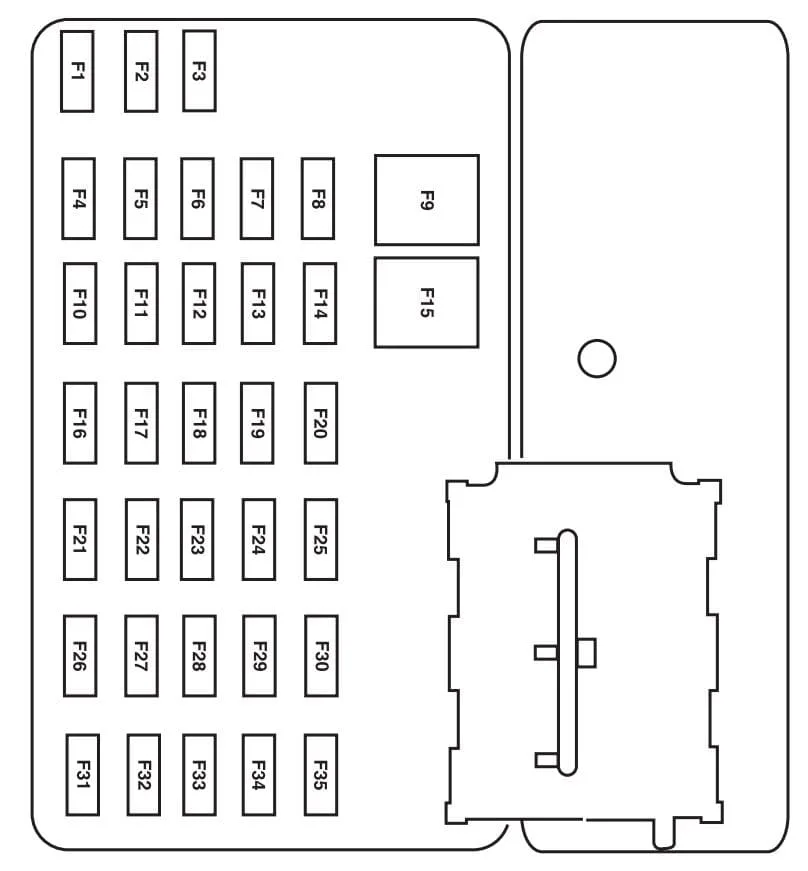

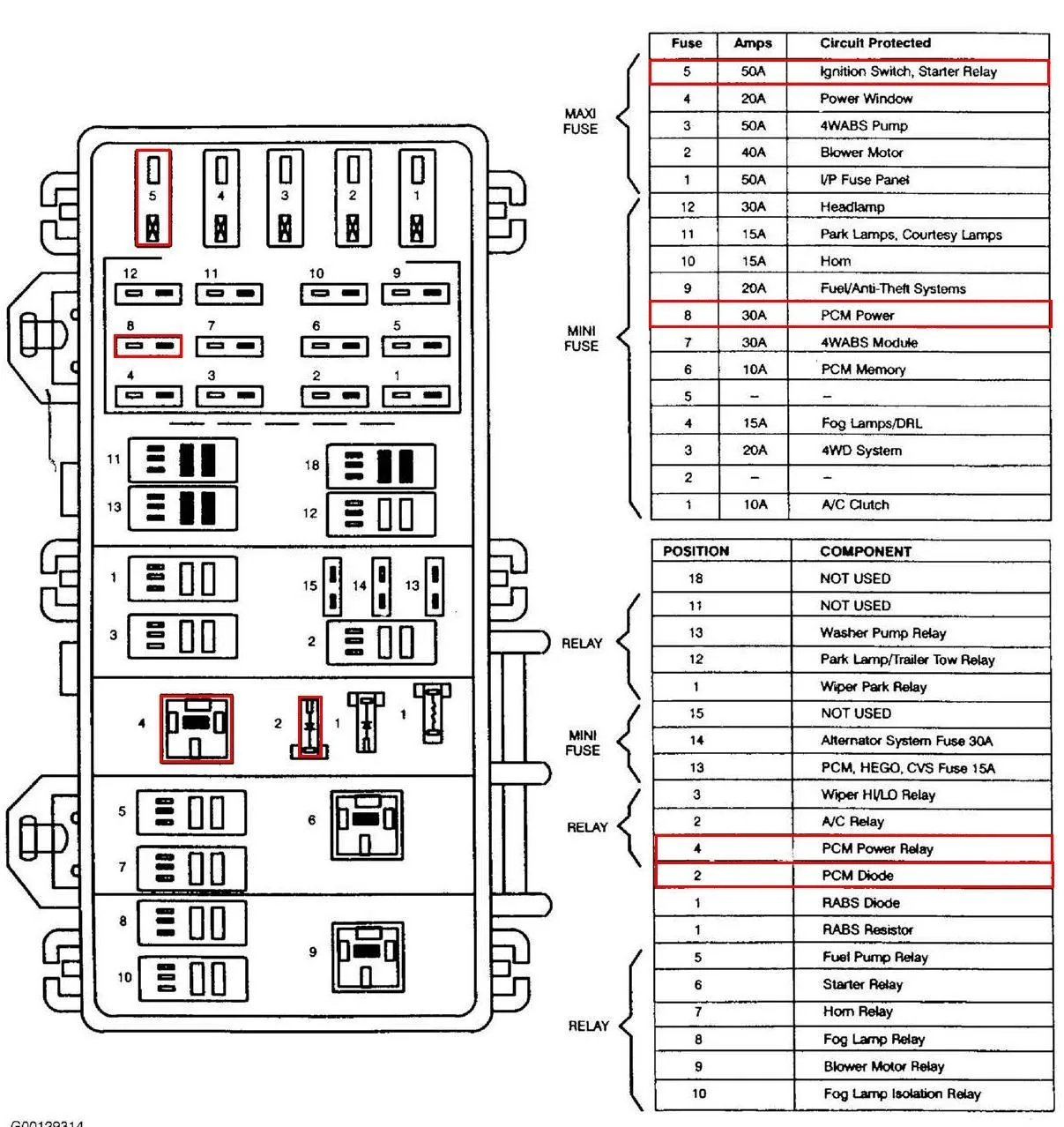

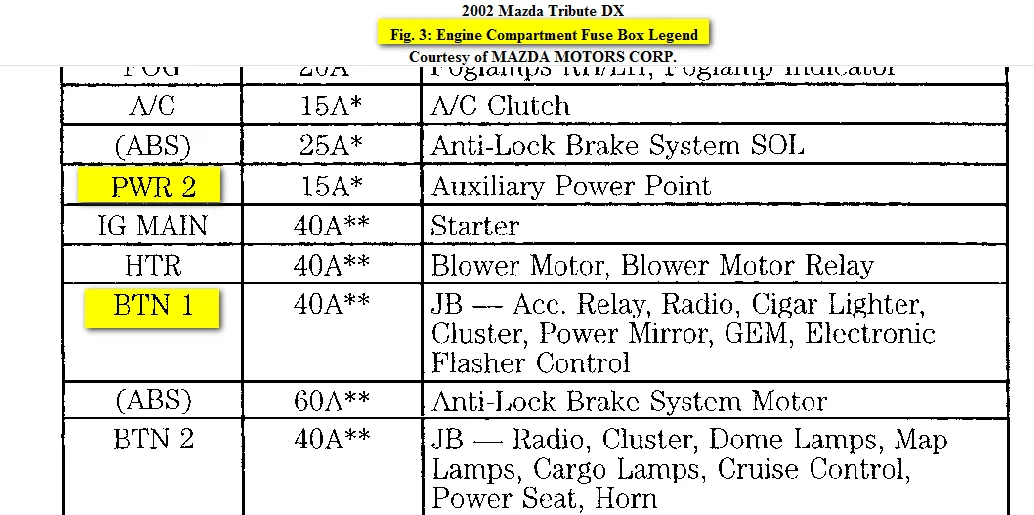

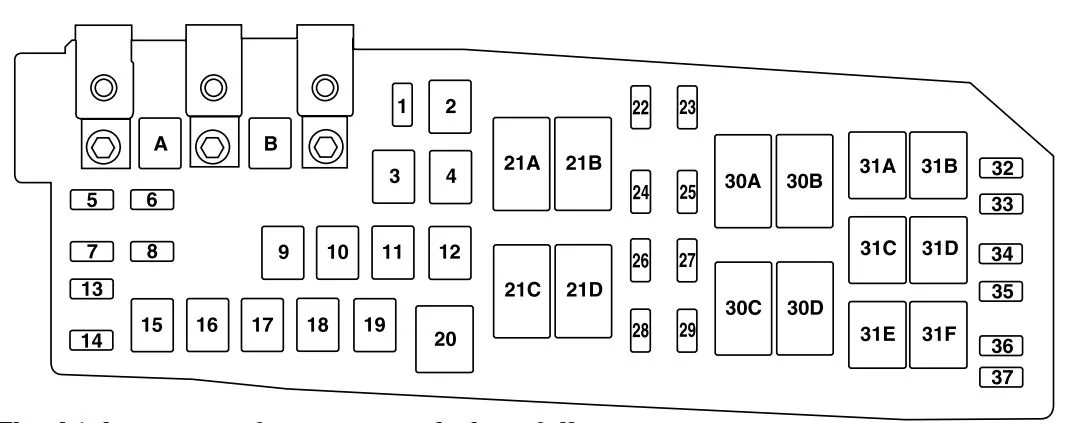

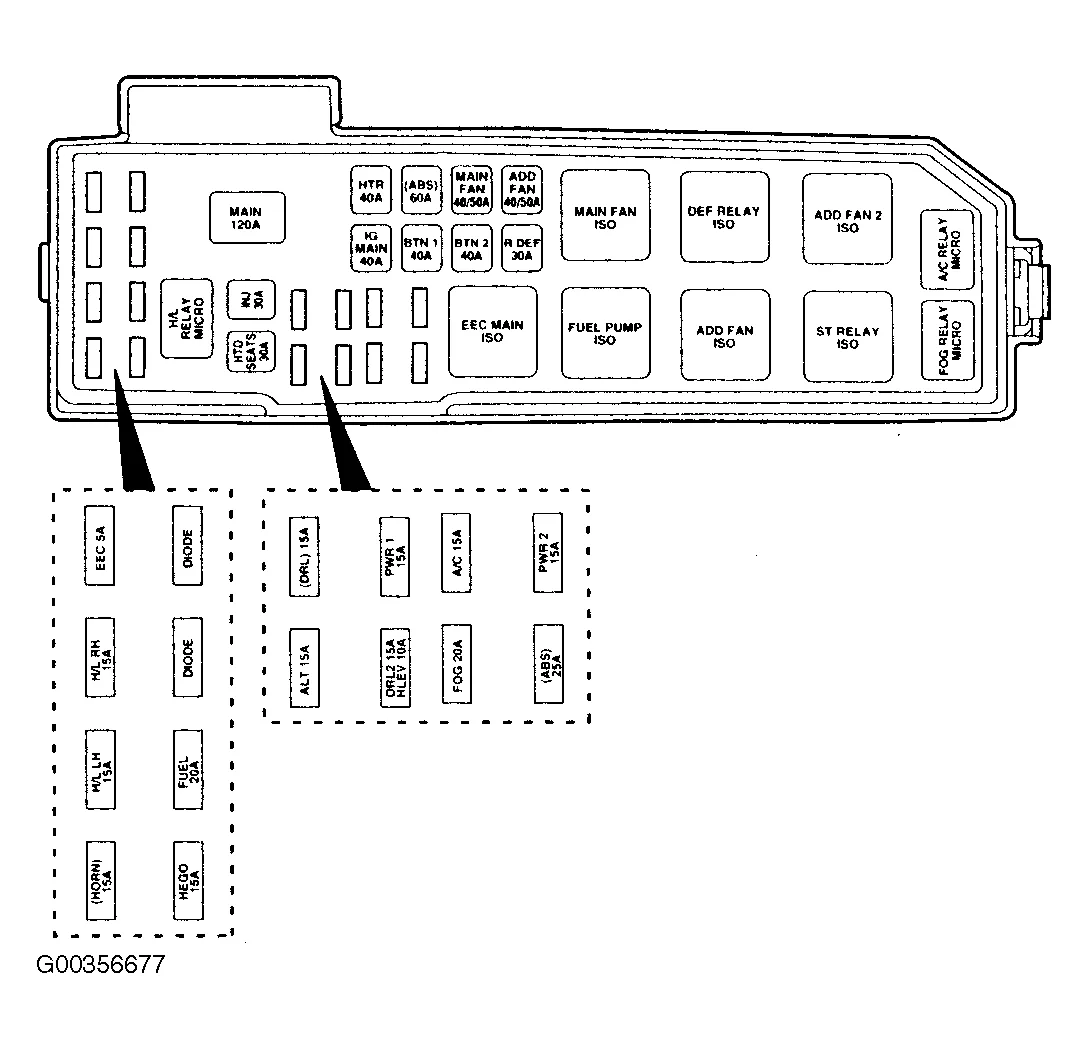

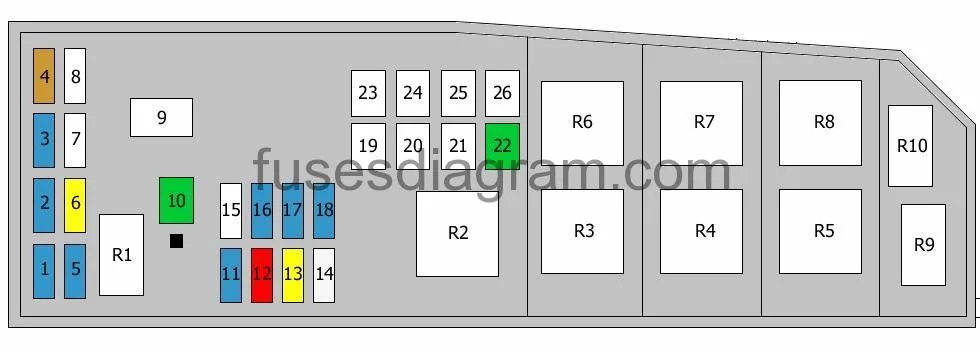

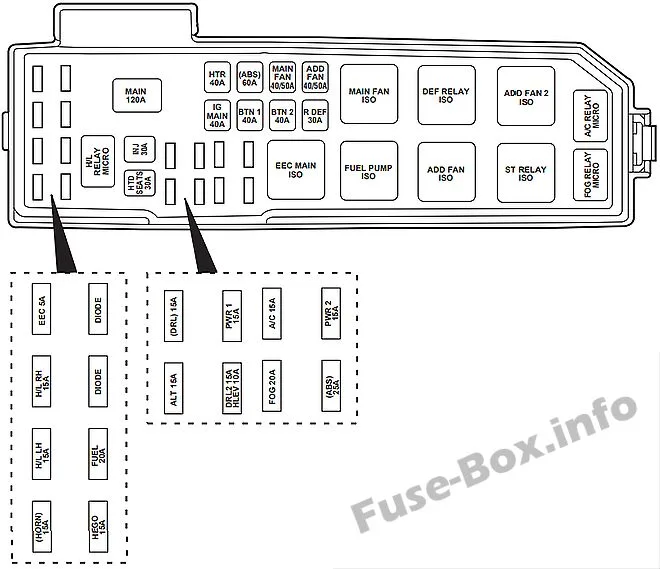

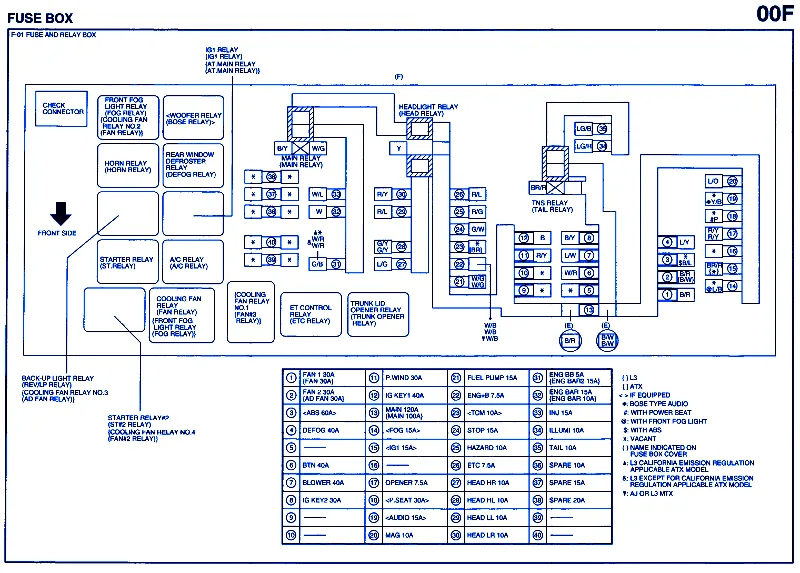

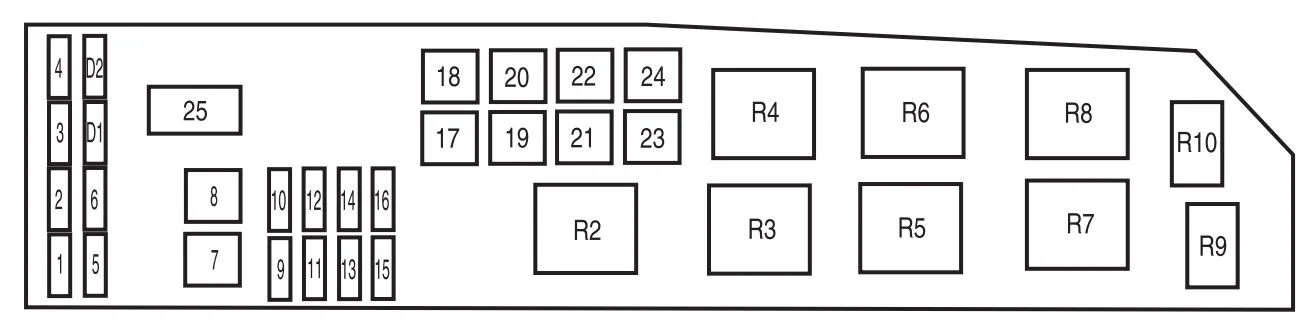

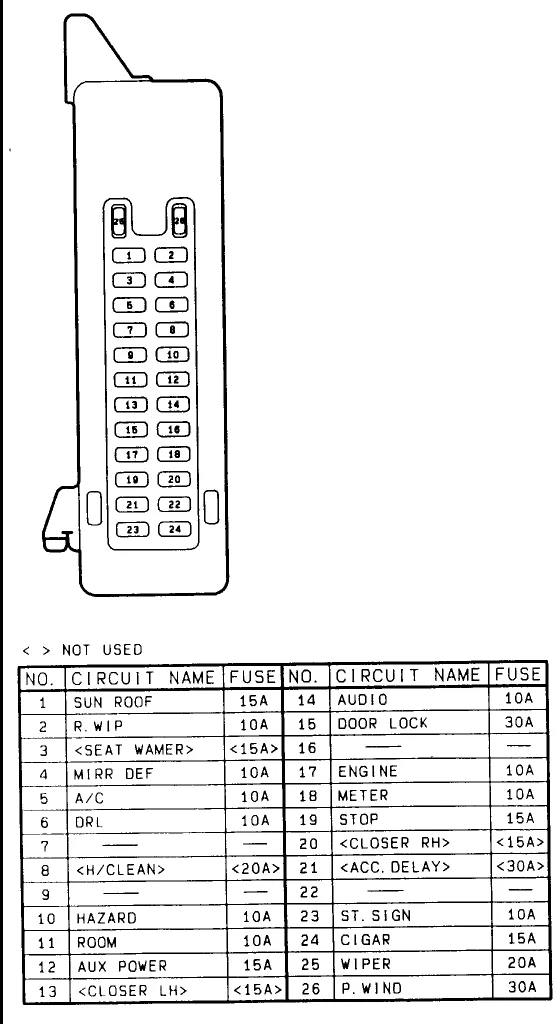

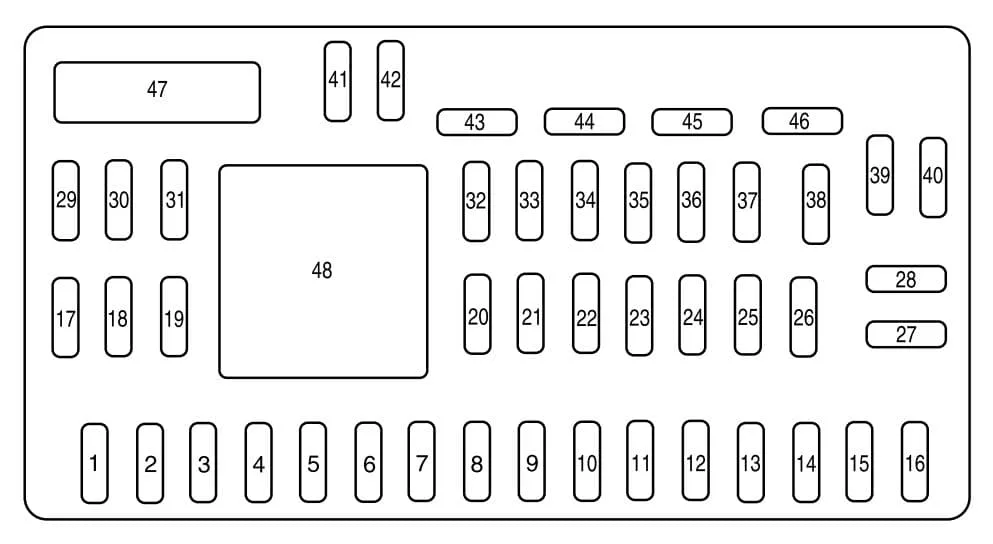

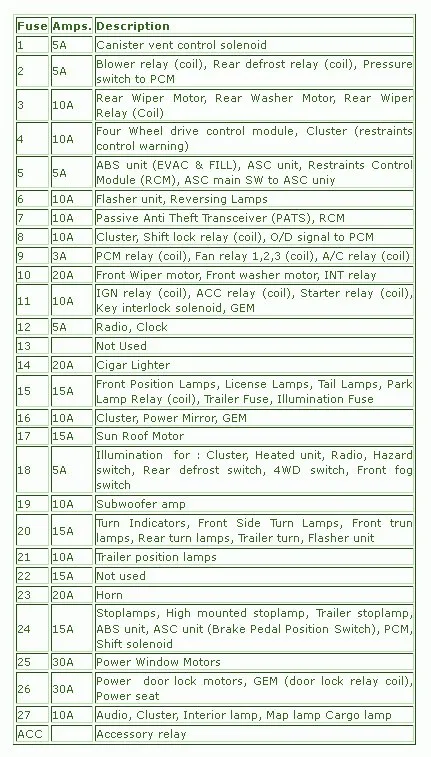

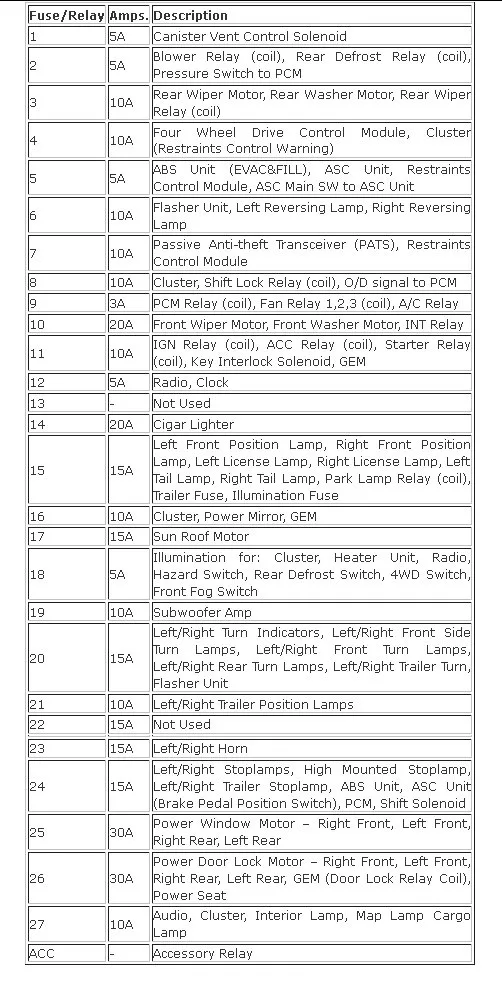

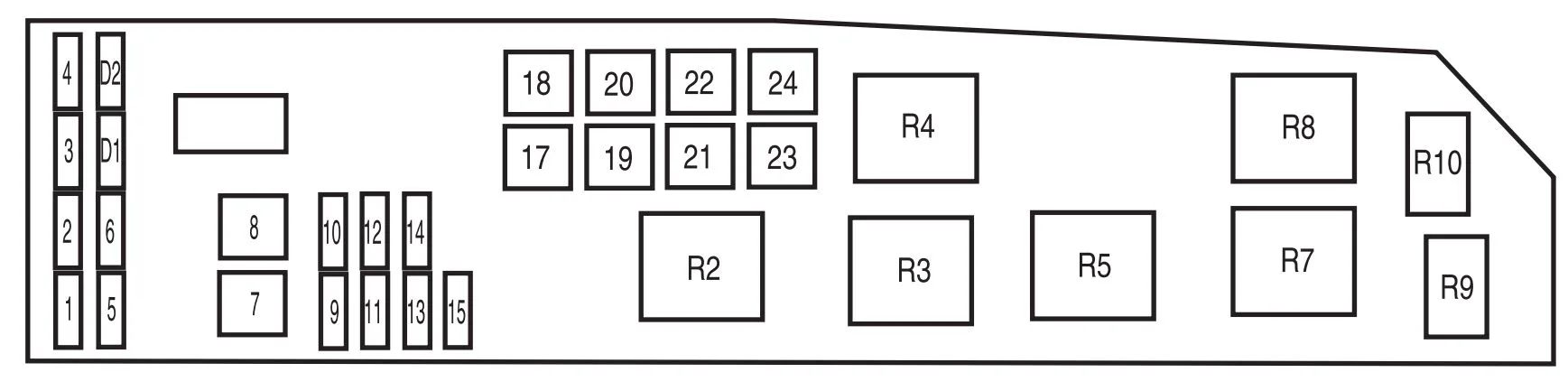

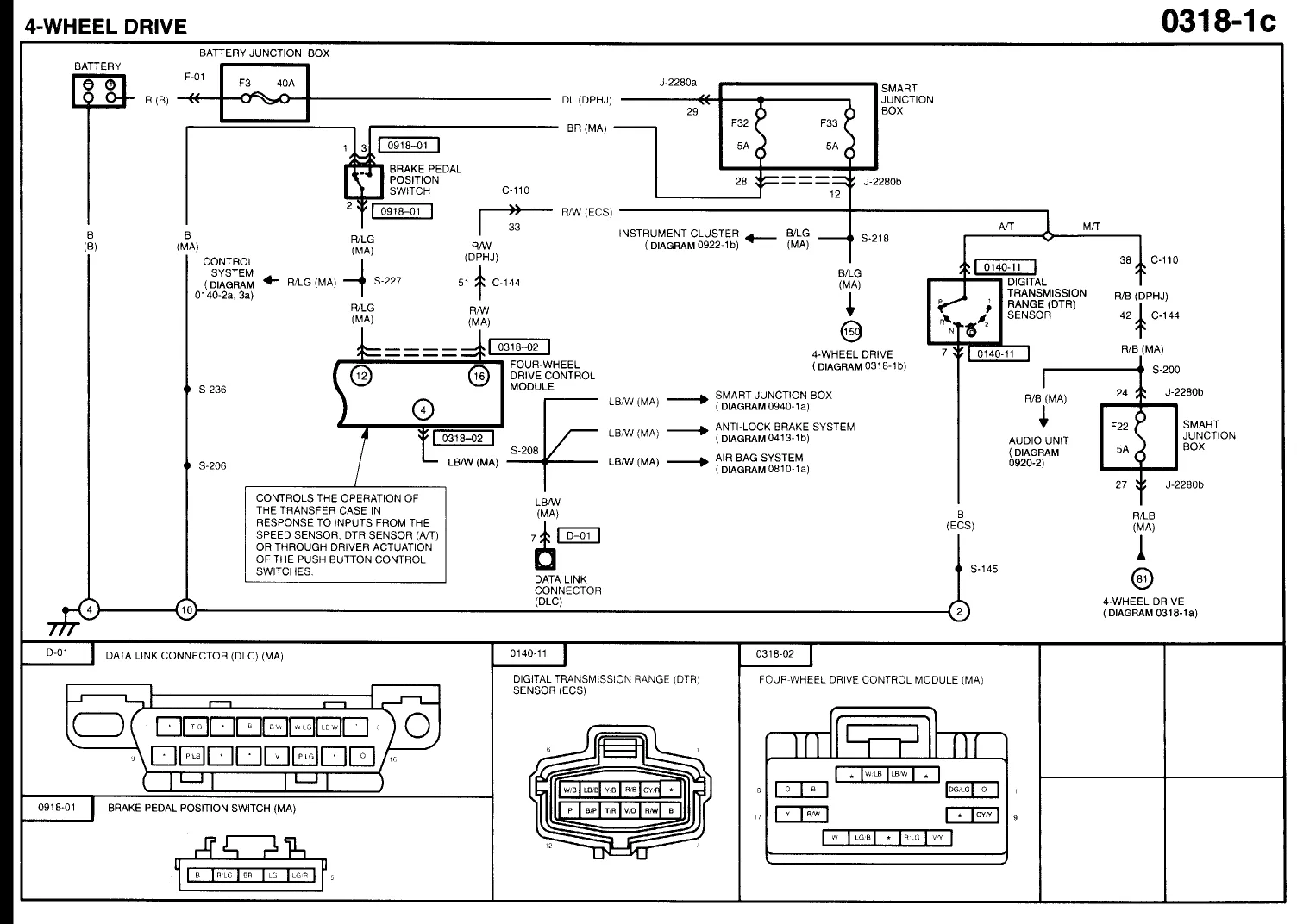

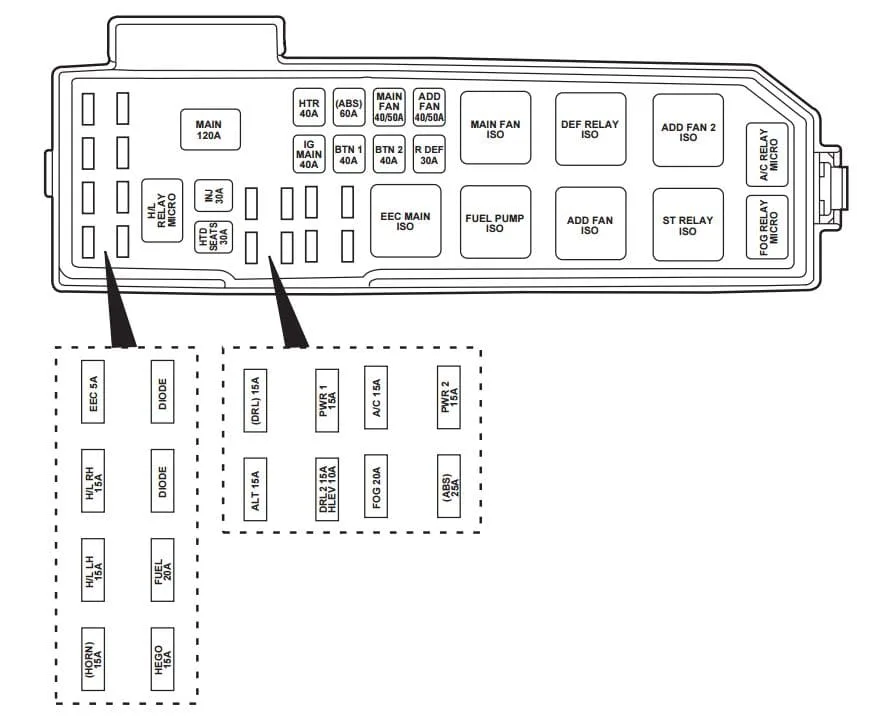

Mazda Tribute Fuse Diagram
Here is a Mazda Tribute fuse diagram that identifies the fuses and the components they control:
| FUSE | COMPONENT |
|---|---|
| 1 | Not Used |
| 2 | Not Used |
| 3 | Not Used |
| 4 | Not Used |
| 5 | Power Mirror |
| 6 | Not Used |
| 7 | Not Used |
| 8 | Not Used |
| 9 | Not Used |
| 10 | Powertrain Control Module (PCM), Injectors, Fuel Pump |
| 11 | Powertrain Control Module (PCM), Ignition Coils |
| 12 | Alternator |
| 13 | Oxygen Sensor |
| 14 | Blower Motor Relay, Climate Control System |
| 15 | Back-up Lamps, Transmission Range Sensor |
| 16 | Powertrain Control Module (PCM), Canister Vent Solenoid |
| 17 | Daytime Running Lamps (DRL) Module, Headlamp Switch |
| 18 | Horn |
| 19 | Stop Lamps, 4WD Control Module, Cruise Control Deactivation Switch |
| 20 | Hazard Lamps |
| 21 | Radio, Amplifier |
| 22 | Power Windows, Moonroof |
| 23 | Accessory Delay Relay |
| 24 | Power Locks |
Frequently Asked Questions
What causes a fuse to blow?
Fuses can blow due to several reasons, such as a short circuit, overloaded circuit, or a faulty component. It is essential to identify the cause of the blown fuse to prevent it from happening again.
Can I use a higher-rated fuse as a replacement?
No, using a higher-rated fuse can cause electrical damage to your vehicle and create a fire hazard. Always replace a blown fuse with a fuse of the same amperage rating.
What should I do if a fuse keeps blowing?
If a fuse keeps blowing, it is an indication of an underlying electrical issue. You should have your vehicle inspected by a qualified mechanic to identify and fix the problem.
Can I drive my vehicle with a blown fuse?
It is not recommended to drive your vehicle with a blown fuse, as it can cause damage to electrical components and create a safety hazard. Always replace blown fuses promptly.
What tools do I need to replace a blown fuse?
To replace a blown fuse, you need a fuse puller or a pair of pliers to remove the blown fuse and a replacement fuse of the same amperage rating. It is also helpful to have a flashlight to see inside the fuse box.
Do I need to disconnect the battery before replacing a fuse?
No, it is not necessary to disconnect the battery before replacing a fuse. However, it is important to ensure that the vehicle is turned off before replacing a fuse.
Can I replace a fuse myself, or do I need a mechanic?
Replacing a blown fuse is a simple process that most vehicle owners can do themselves. However, if you are not comfortable working with electrical components, it is always best to have a qualified mechanic do the job.
By following the information provided in this article, you can identify and replace blown fuses in your Mazda Tribute. Remember, safety is essential when working with electrical components, so always use caution and refer to your owner’s manual for specific instructions.
