The F250 Super Duty is a reliable and powerful truck that is built to handle tough jobs. However, just like any other vehicle, it can have problems from time to time. One of the most common issues that F250 Super Duty owners face is a blown fuse.
If you’re having electrical problems with your F250 Super Duty, it’s important to check the fuses. In this article, we’ll provide you with a comprehensive guide on the F250 Super Duty fuse diagram.
What is a Fuse?
Before we get into the details of the F250 Super Duty fuse diagram, let’s first talk about what a fuse is. A fuse is a safety device that protects electrical circuits from overloading. When an electrical current is too high, the fuse breaks the circuit to prevent damage to the vehicle’s electrical system. Fuses come in different sizes and types, and they’re usually located in the fuse box of the vehicle.
The Different Types of Fuses
There are four main types of fuses:
| Type | Description |
|---|---|
| Glass Tube Fuse | The most common type of fuse used in older vehicles. They’re made up of a glass tube with two metal caps on each end. |
| Blade Fuse | The most common type of fuse used in modern vehicles. They’re made up of a plastic body with two metal prongs on each end. |
| Slow-Blow Fuse | A type of fuse that can handle a temporary surge in current without breaking the circuit. |
| Maxi Fuse | A larger type of fuse that can handle higher current loads than other types of fuses. |

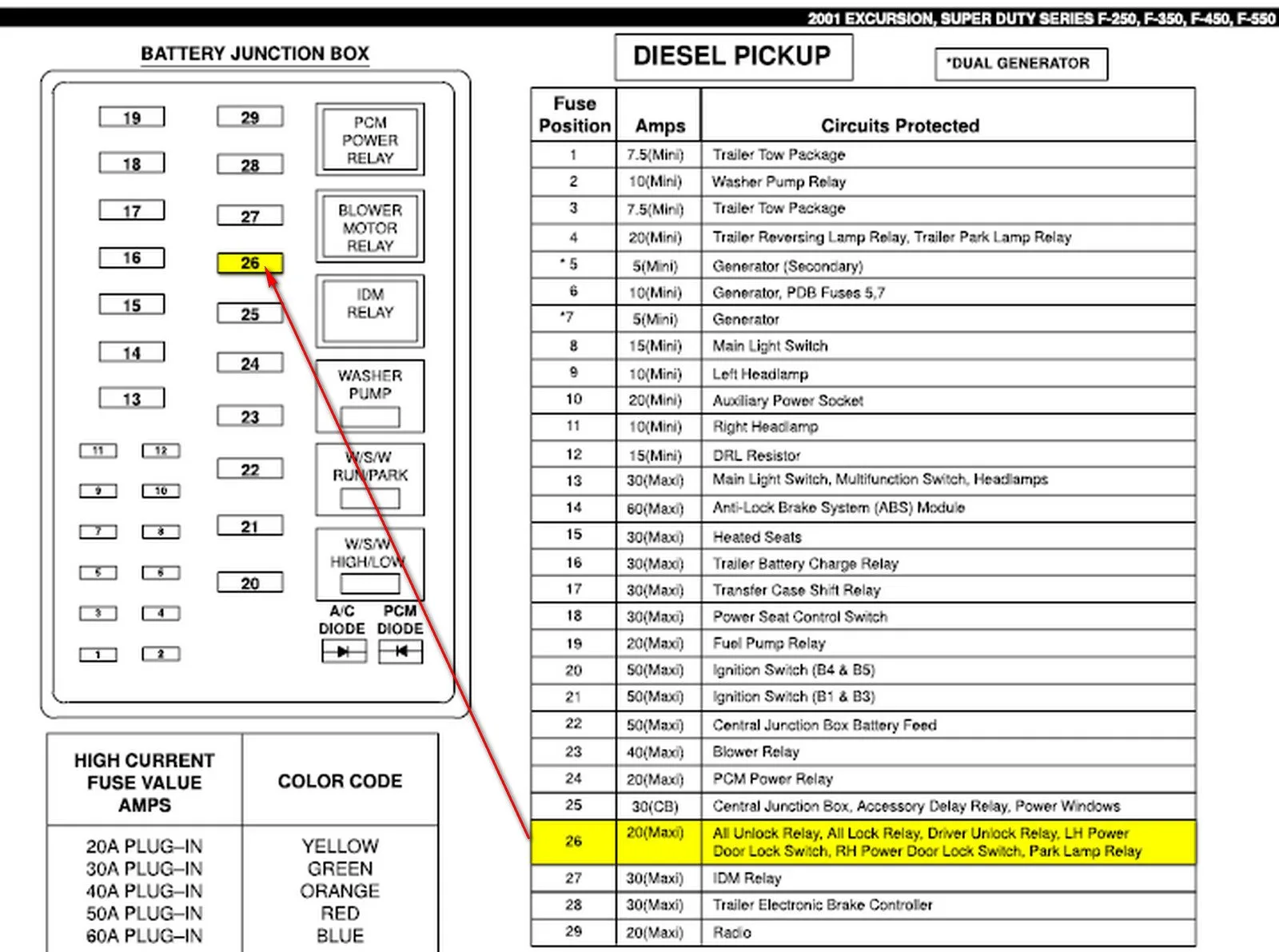

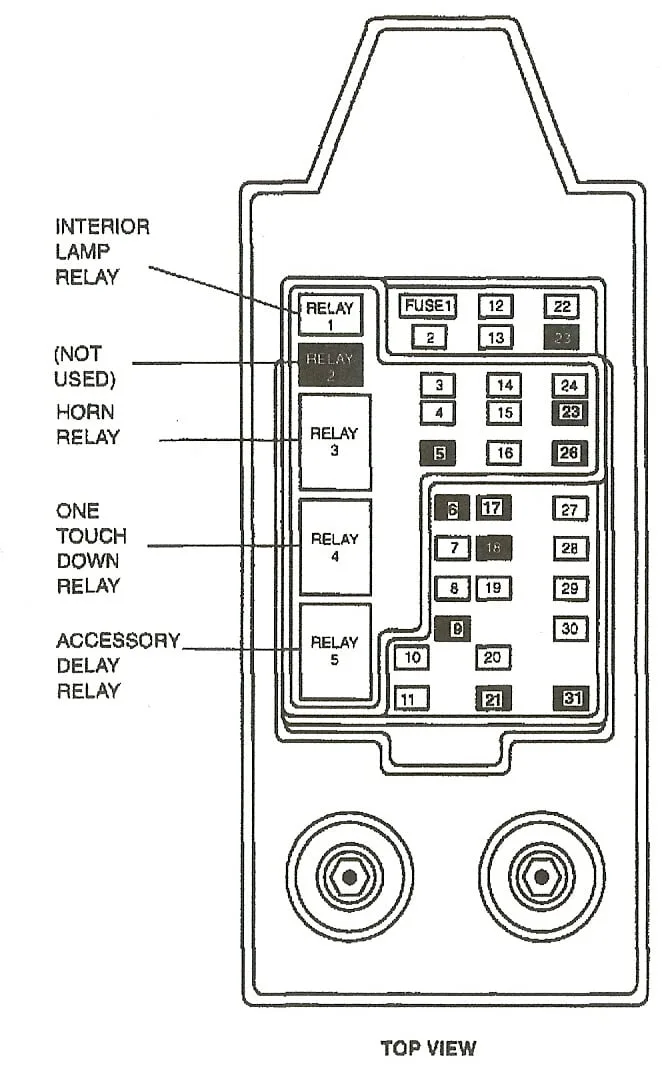

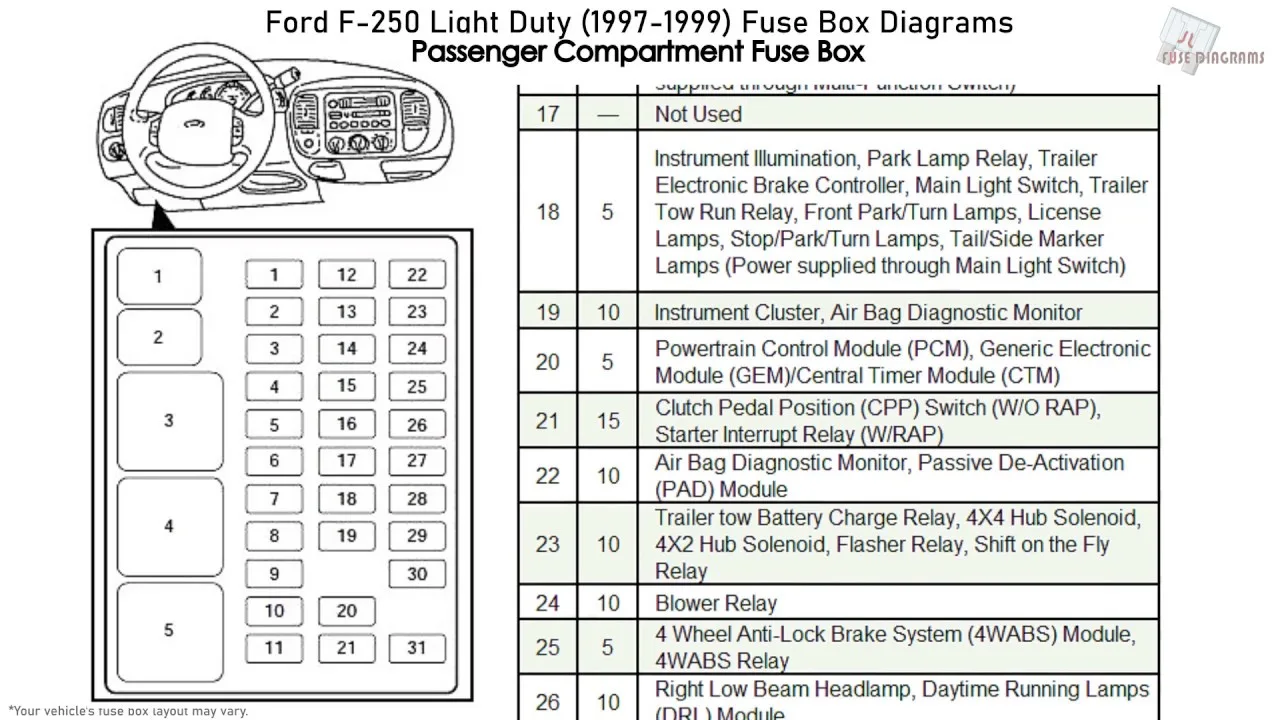

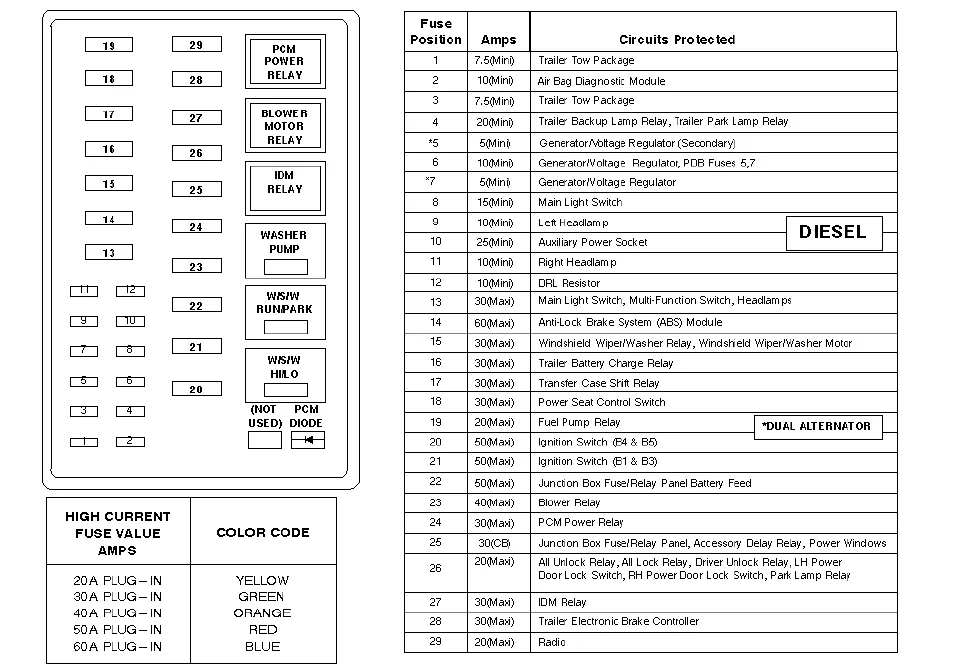

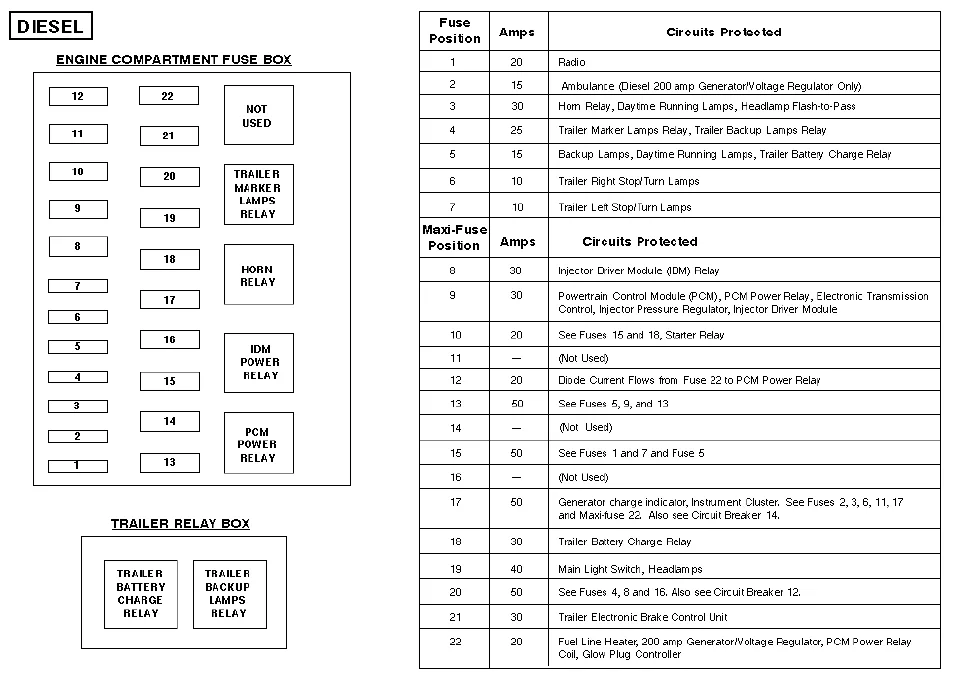

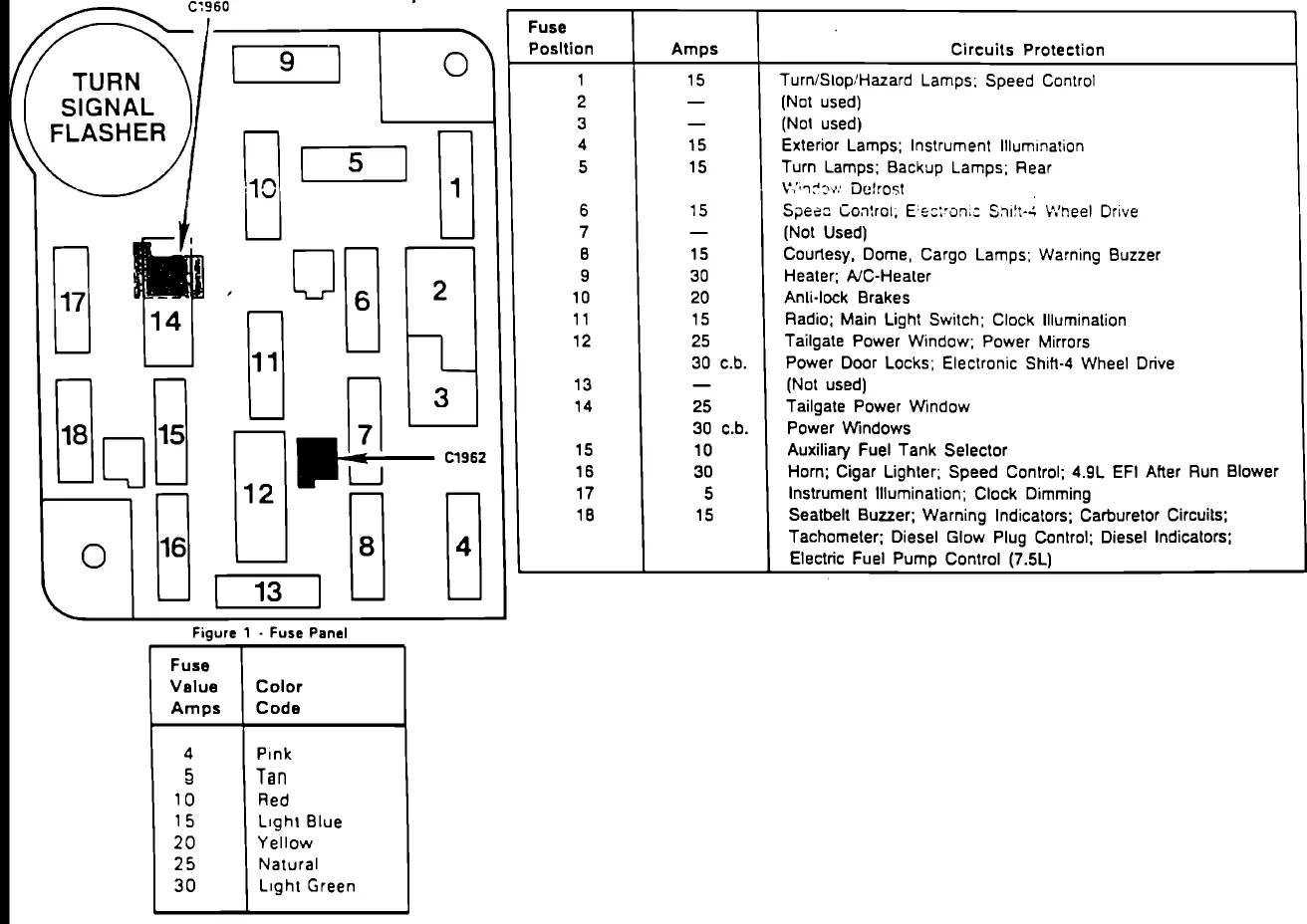

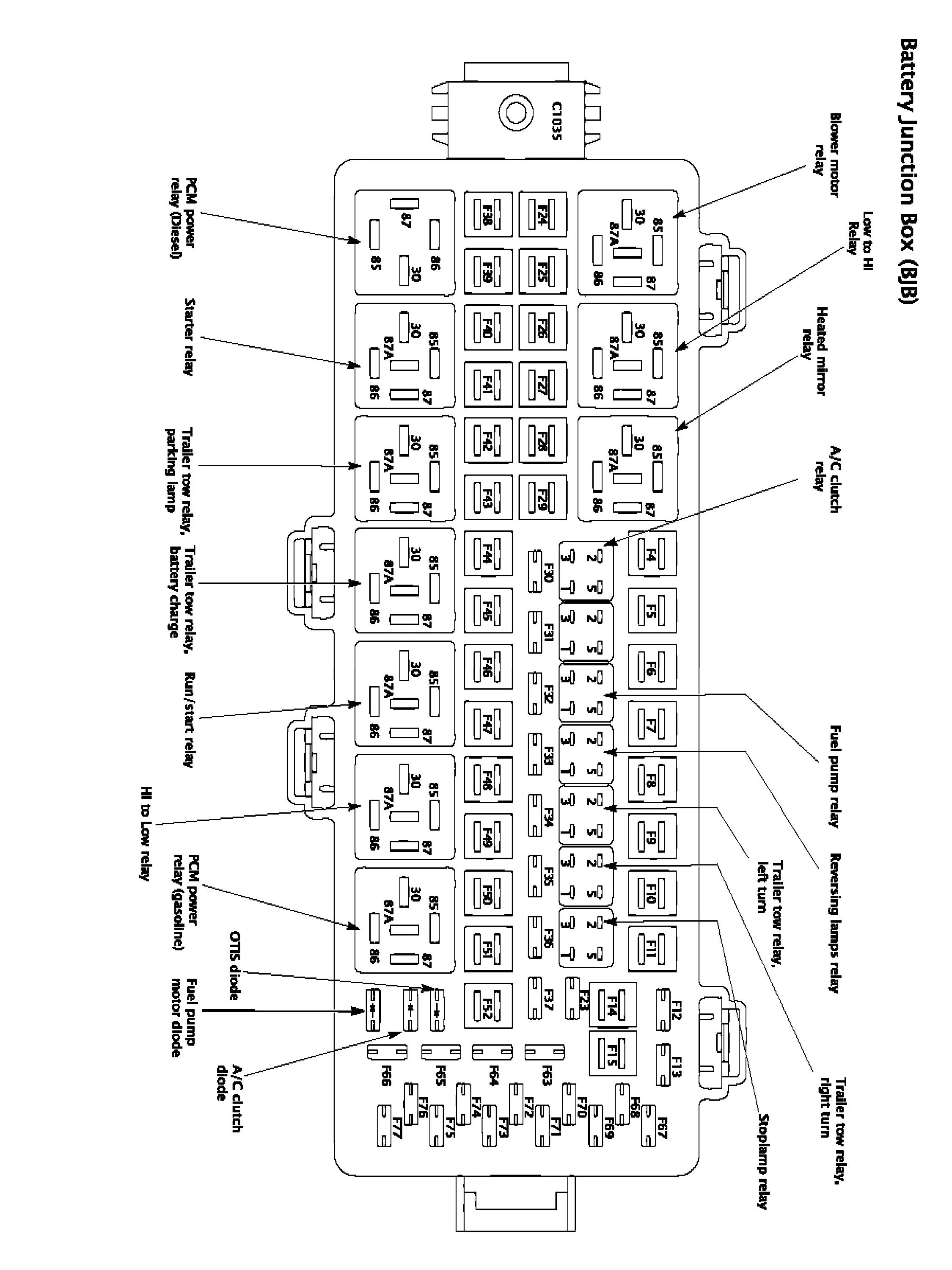

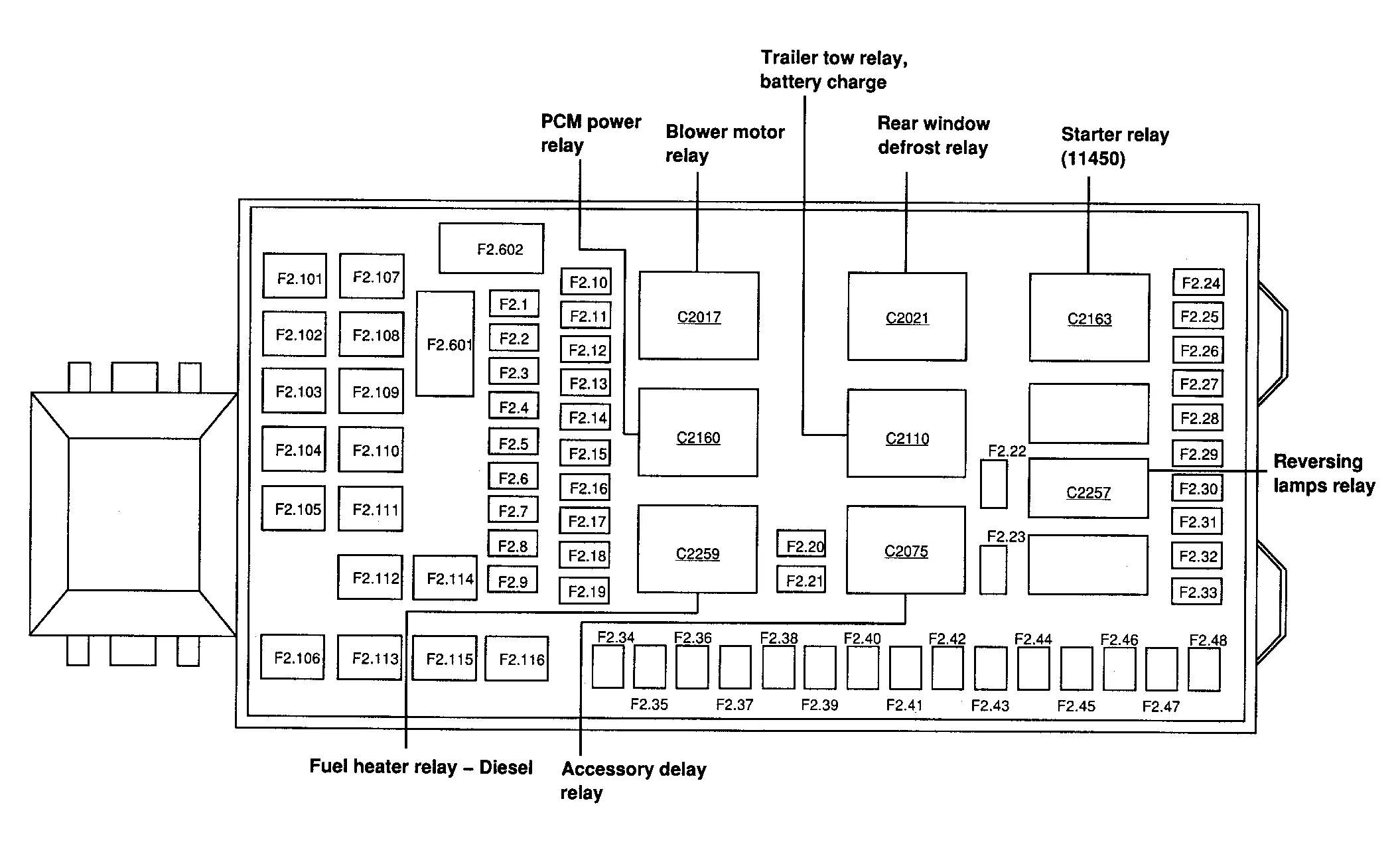

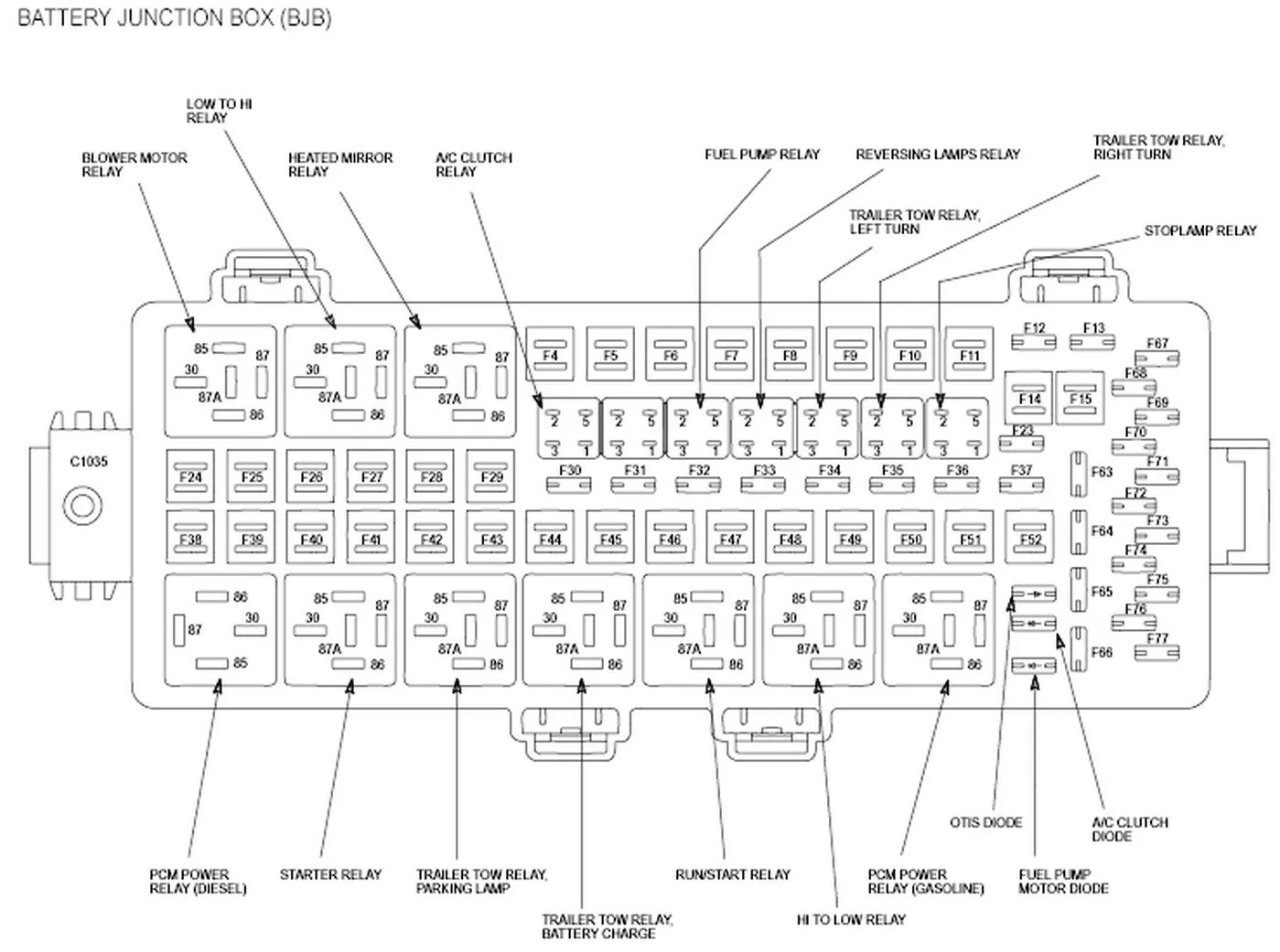

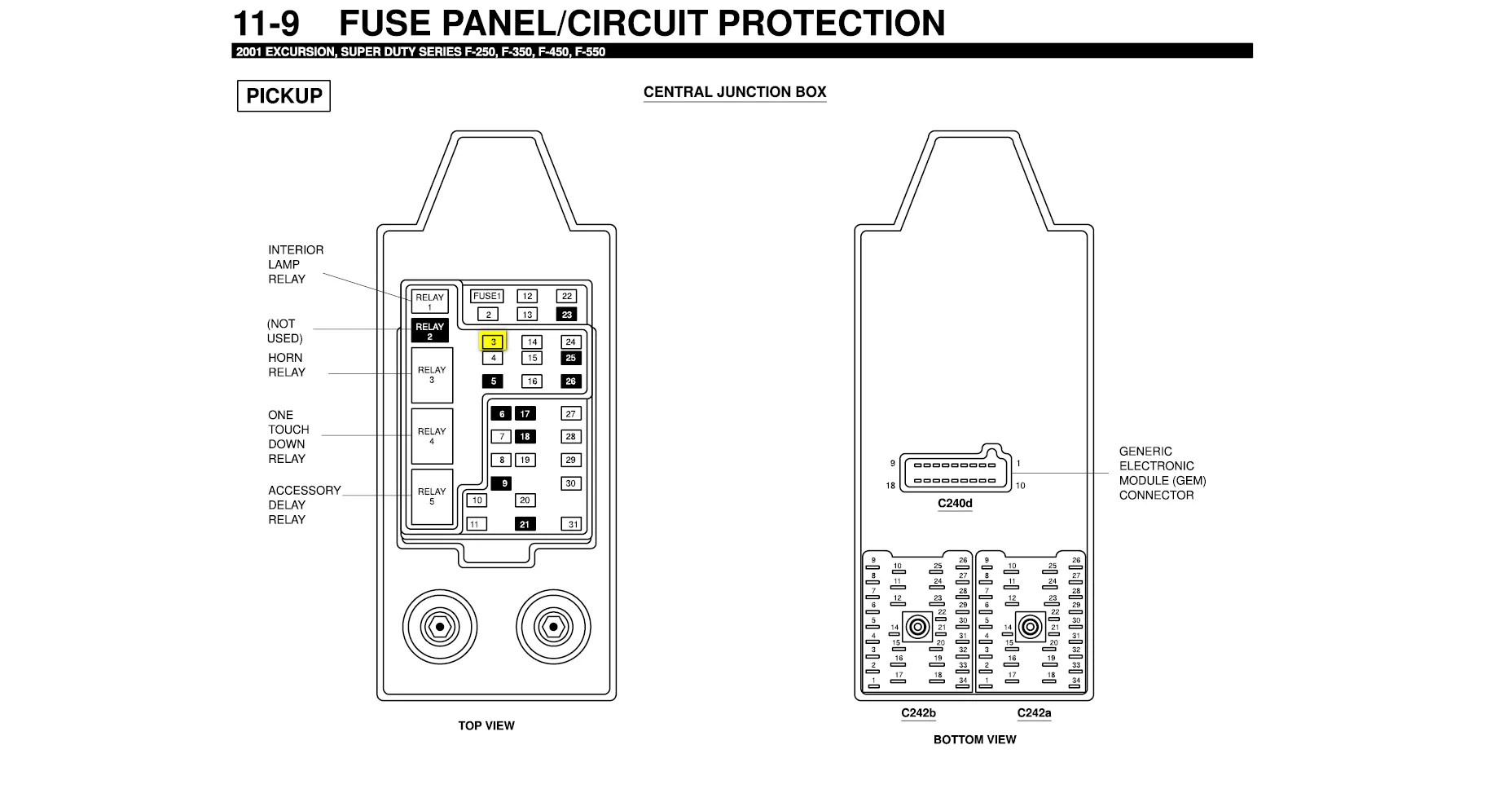

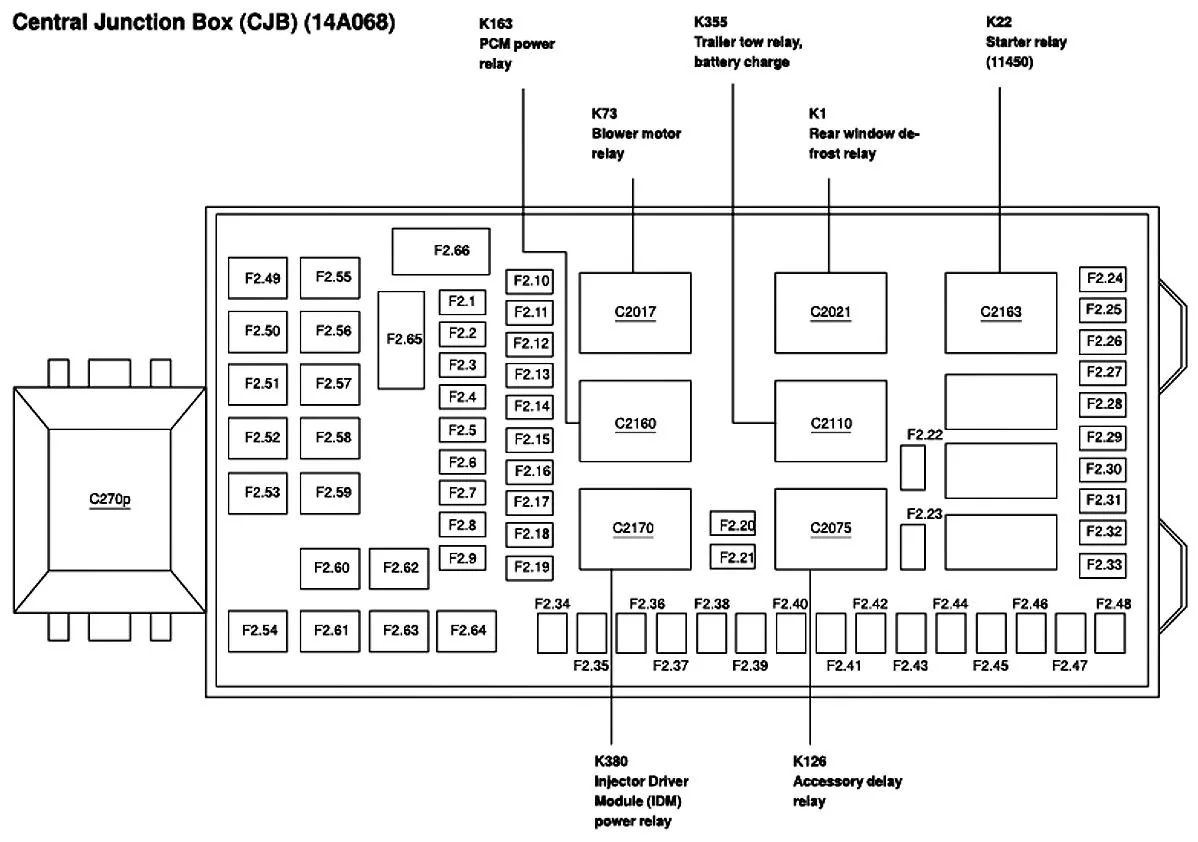

F250 Super Duty Fuse Diagram
The F250 Super Duty fuse diagram is a map of the fuses that are located in the fuse box of the vehicle. It shows the location and function of each fuse, and it’s an essential tool for troubleshooting electrical problems in the F250 Super Duty.
How to Read the F250 Super Duty Fuse Diagram
The F250 Super Duty fuse diagram is usually located inside the fuse box cover. It’s important to read the diagram carefully to understand which fuse corresponds to which electrical component. Each fuse is labeled with a number or letter that corresponds to its location on the diagram.
For example, if your headlights are not working, you can refer to the F250 Super Duty fuse diagram to find the corresponding fuse. Once you’ve located the fuse, you can check if it’s blown by looking at the wire inside the fuse. If the wire is broken, the fuse is blown and needs to be replaced.

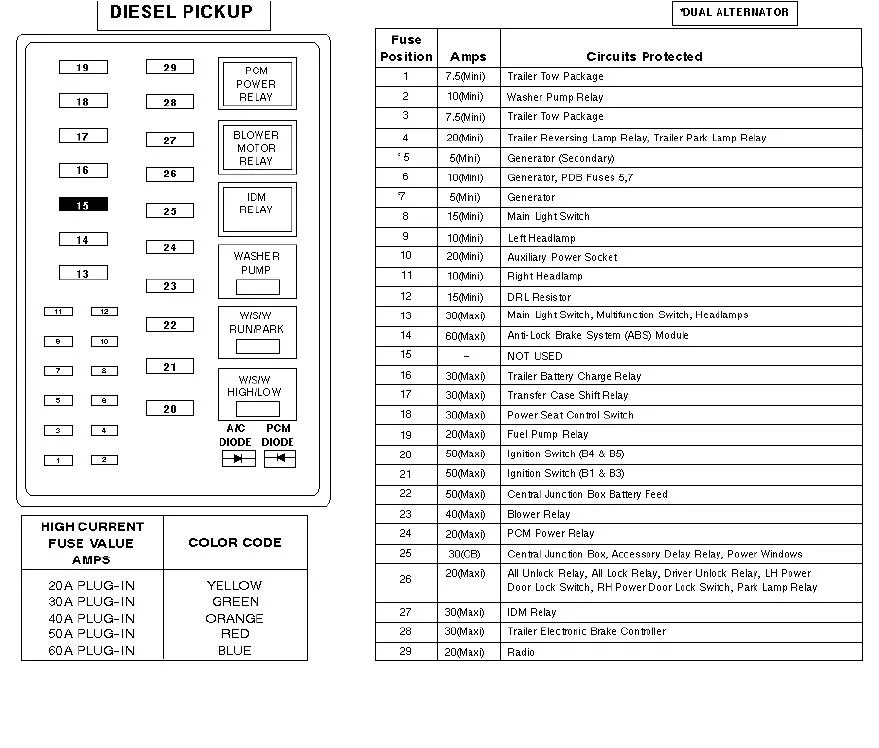

Common Fuses in the F250 Super Duty
Here are some of the most common fuses found in the F250 Super Duty and their functions:
| Fuse | Function |
|---|---|
| Fuse #5 | Trailer tow backup lamps relay coil, Reverse lamps and daytime running lamps (DRL) relay coil |
| Fuse #6 | Trailer tow right turn/stop lamps |
| Fuse #11 | Air conditioning clutch relay, Battery charge |
| Fuse #22 | Trailer tow left turn/stop lamps |
| Fuse #30 | Anti-lock brake system (ABS) module, Brake pedal position switch |
Frequently Asked Questions (FAQ)
Q: How do I replace a blown fuse in the F250 Super Duty?
A: To replace a blown fuse in the F250 Super Duty, you’ll need to locate the fuse box and find the corresponding fuse. Once you’ve found the fuse, use a fuse puller or pliers to remove it from the fuse box. Check the wire inside the fuse to see if it’s broken. If it is, replace the fuse with a new one of the same amperage rating.
Q: What should I do if the same fuse keeps blowing?
A: If the same fuse keeps blowing, it’s a sign of a larger electrical problem in the vehicle. You should take your F250 Super Duty to a mechanic to diagnose and fix the problem. Continuing to replace the blown fuse without addressing the underlying issue can cause further damage to the vehicle’s electrical system.
Q: Can I use a fuse with a higher amperage rating than what’s recommended?
A: No, you should never use a fuse with a higher amperage rating than what’s recommended. Doing so can cause damage to the vehicle’s electrical system or even start a fire. Always use a fuse with the recommended amperage rating for the specific circuit.
Q: Can I use a fuse with a lower amperage rating than what’s recommended?
A: No, you should never use a fuse with a lower amperage rating than what’s recommended. Doing so can cause the fuse to blow prematurely or not provide enough protection for the electrical system. Always use a fuse with the recommended amperage rating for the specific circuit.
Conclusion
The F250 Super Duty fuse diagram is an important tool for troubleshooting electrical problems in the vehicle. Understanding how to read the diagram and locate the corresponding fuse can save you time and money in repairs. Remember to always use the recommended amperage rating for fuses and seek professional help if the same fuse keeps blowing.
