If you own a Chevrolet Cavalier and are experiencing issues with your headlights, you may need to refer to a wiring diagram schematic. This article will help guide you through understanding the different components of the Cavalier headlight wiring diagram and how to troubleshoot common problems.
What is a Wiring Diagram Schematic?
A wiring diagram schematic is a visual representation of the electrical system and wiring connections in a particular vehicle. It shows the different components and how they are connected, allowing for easier troubleshooting and repair.
Why Use a Wiring Diagram Schematic?
Using a wiring diagram schematic can save time and money when troubleshooting electrical issues in your vehicle. It can also help prevent further damage by identifying the root cause of the problem.
Where to Find a Wiring Diagram Schematic?
A wiring diagram schematic can typically be found in a vehicle’s service manual or obtained online through various sources. It’s important to ensure that the schematic matches your vehicle’s year, make, and model before use.

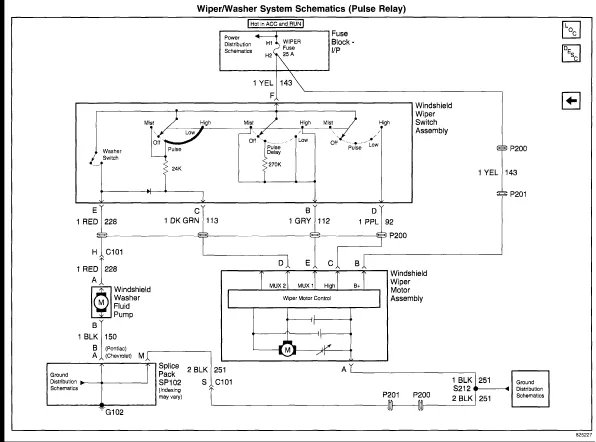

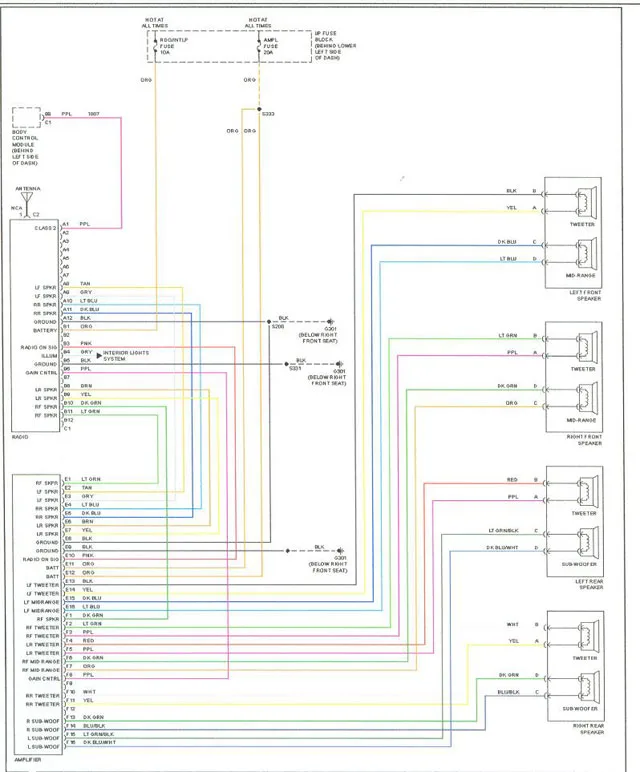

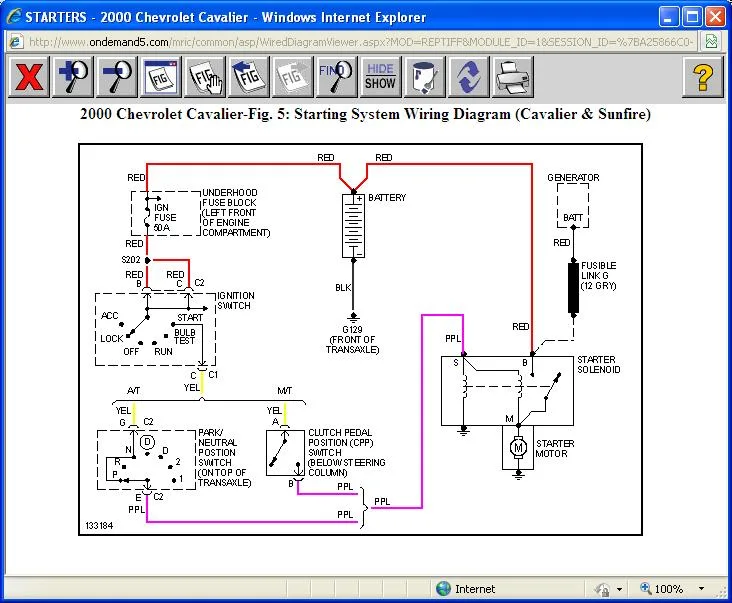

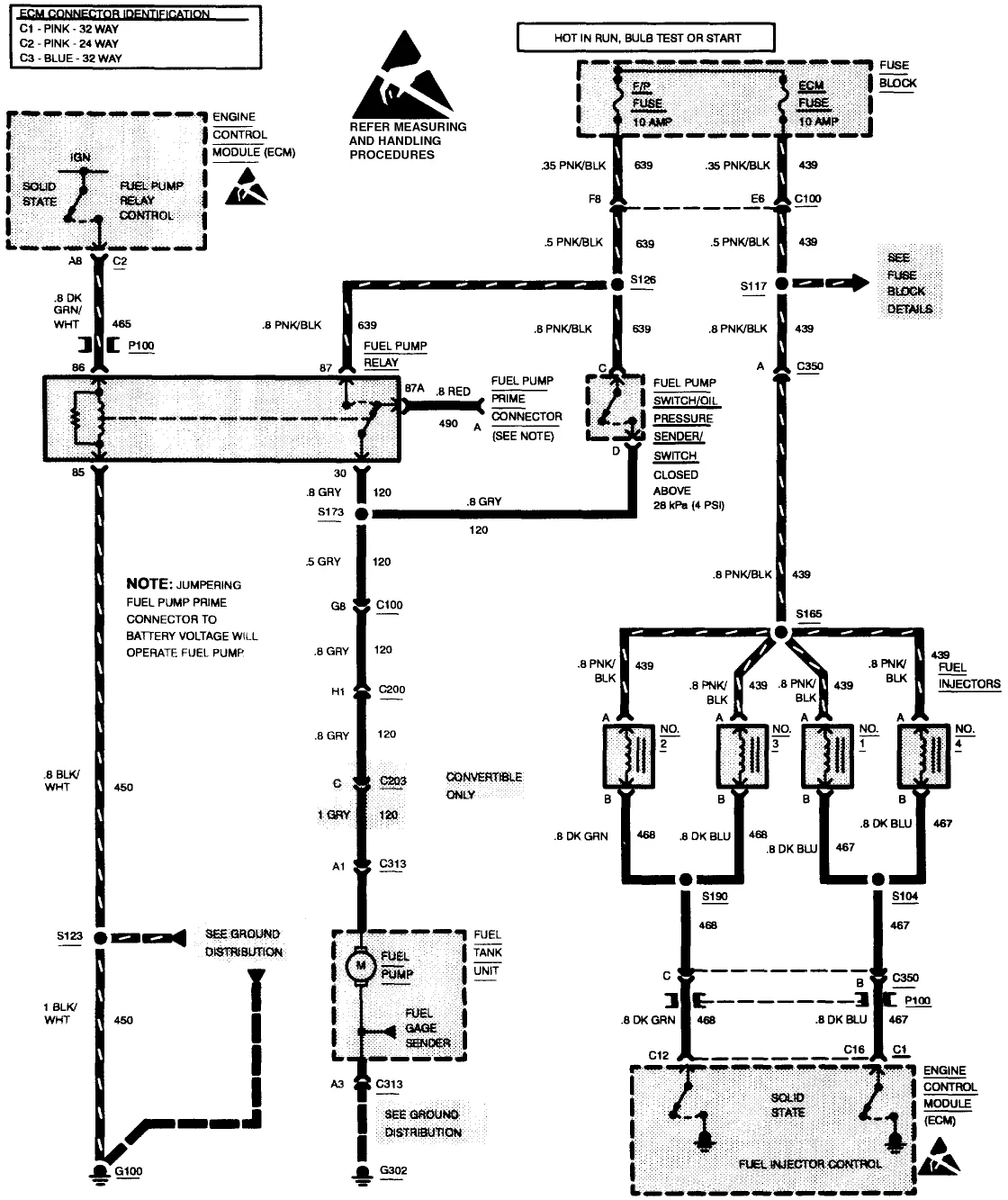

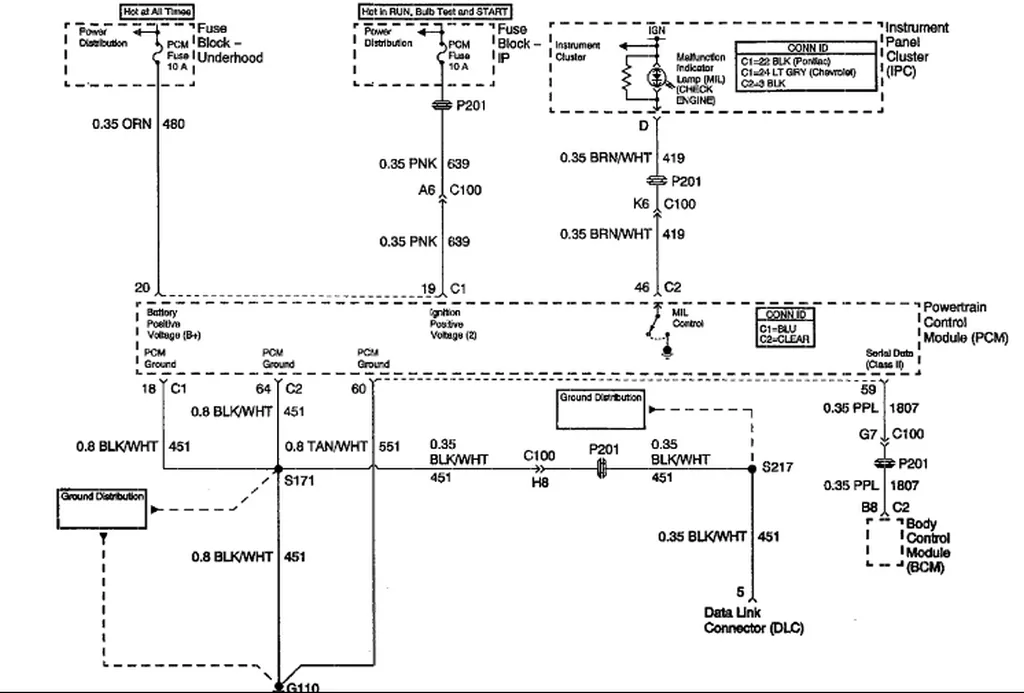

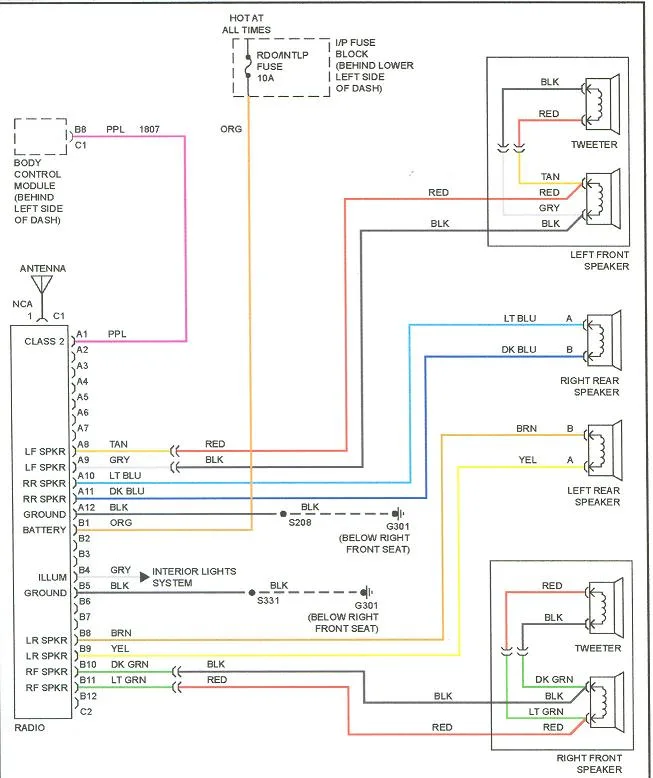

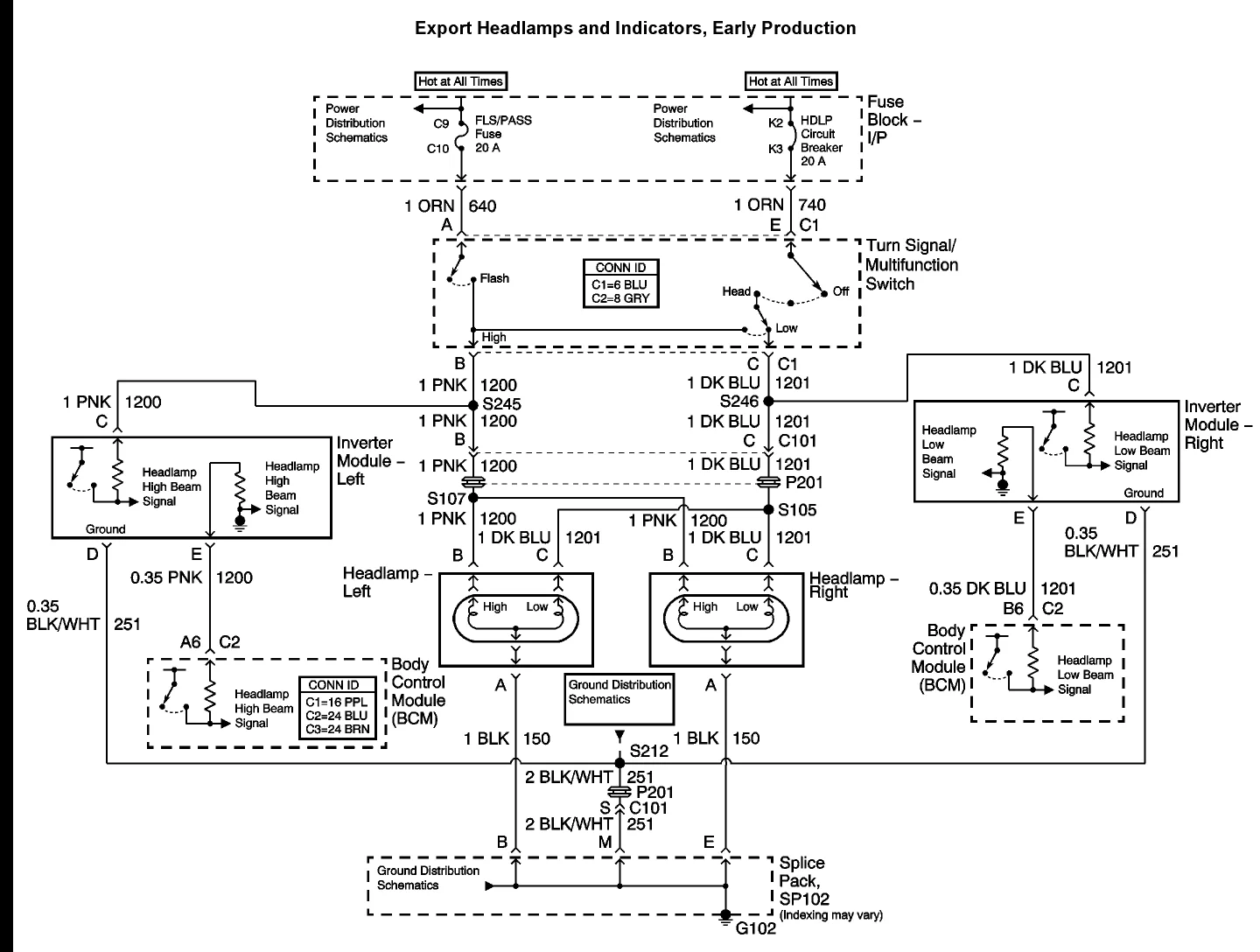

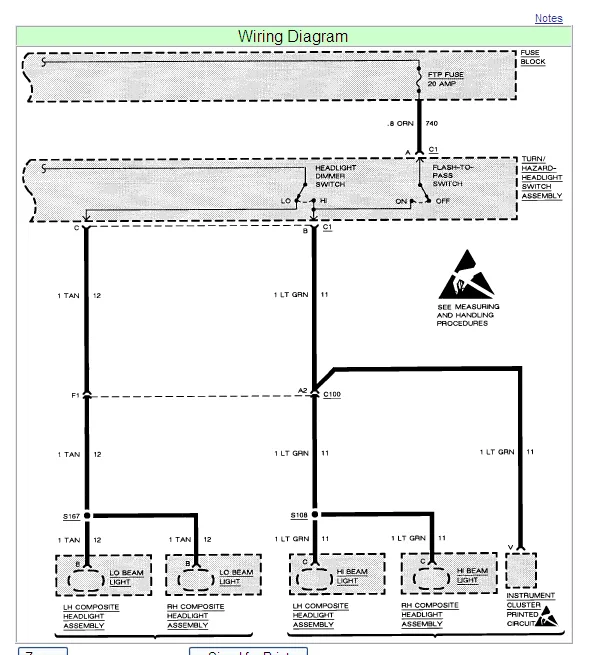

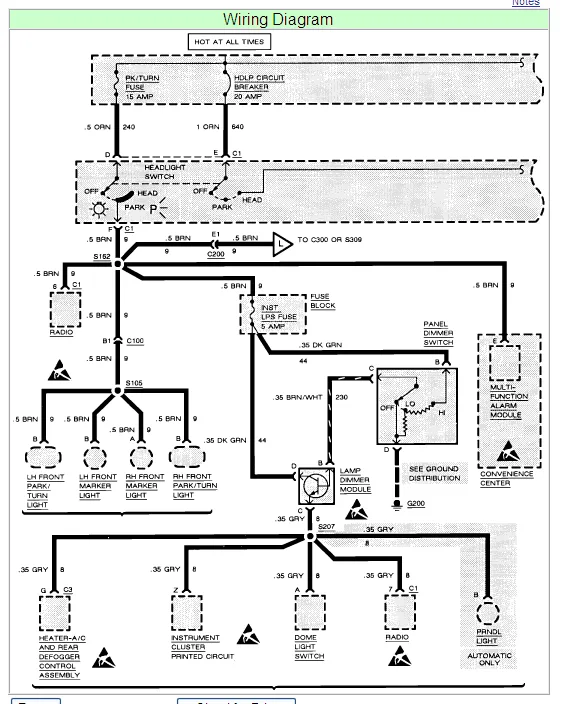

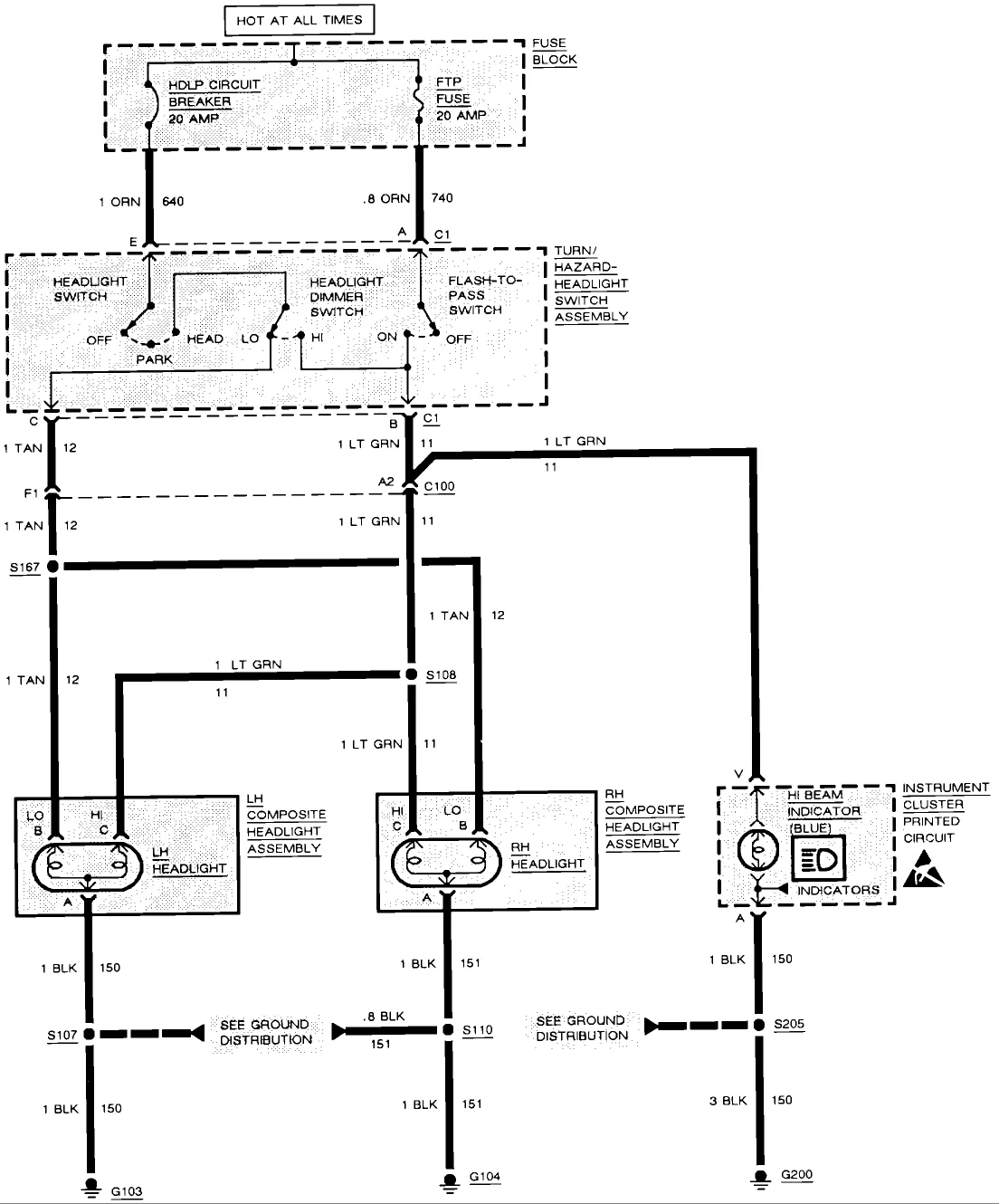

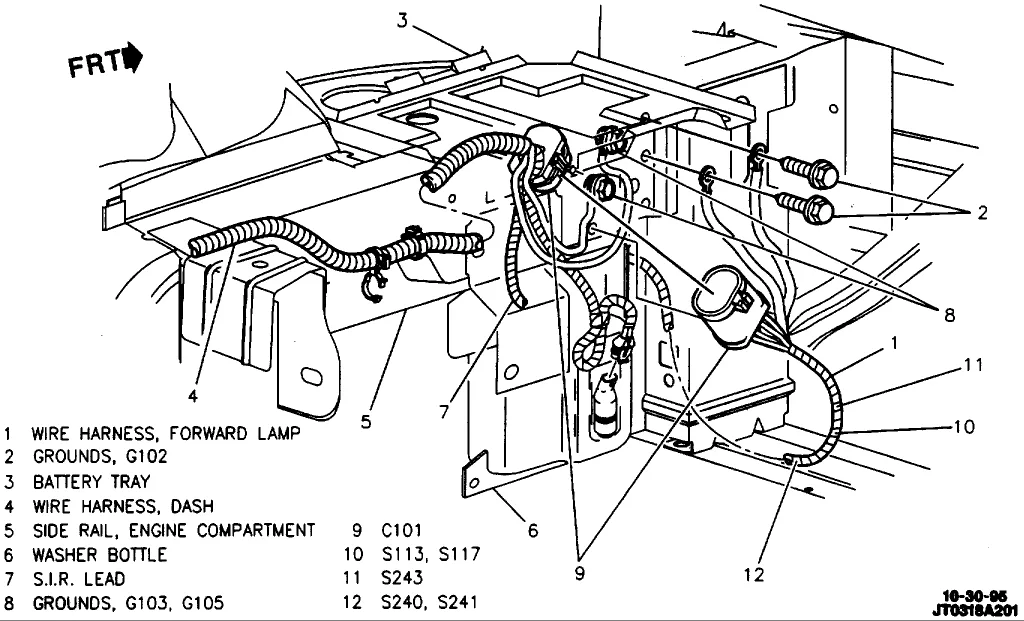

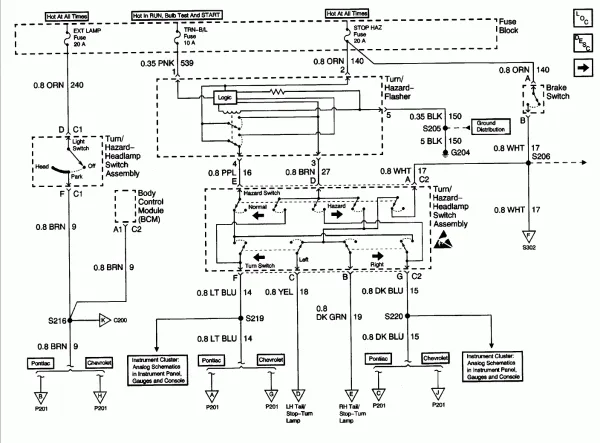

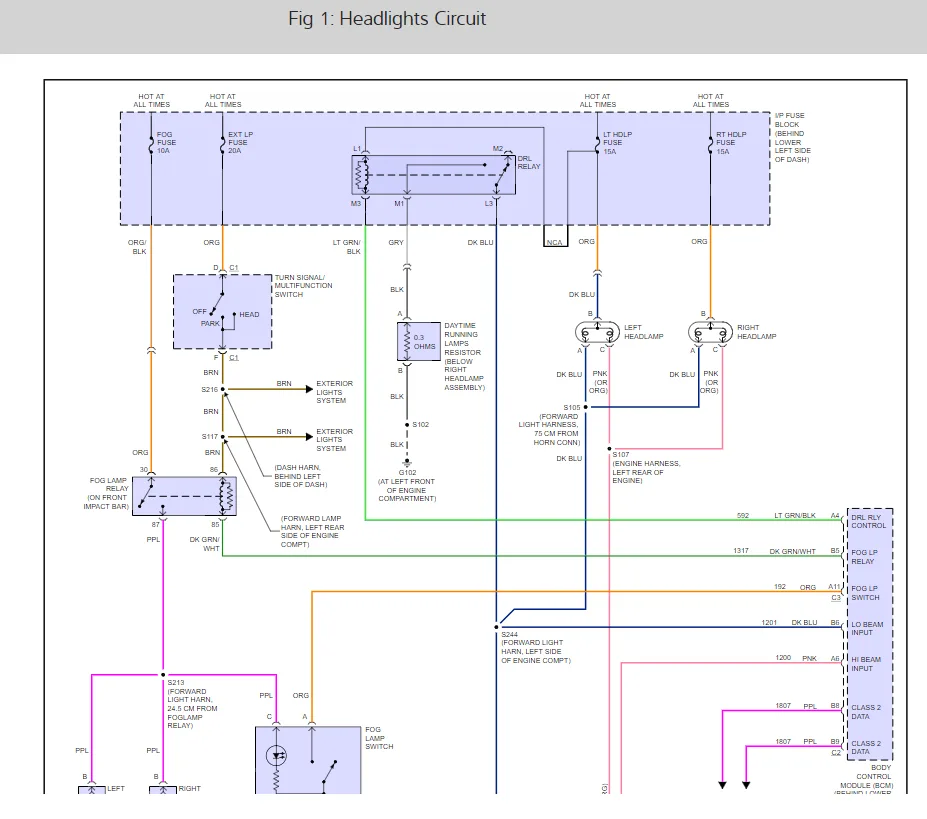

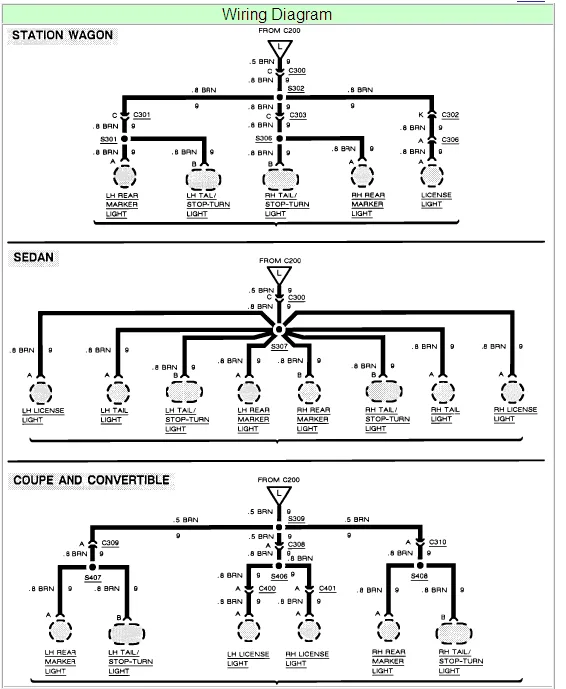

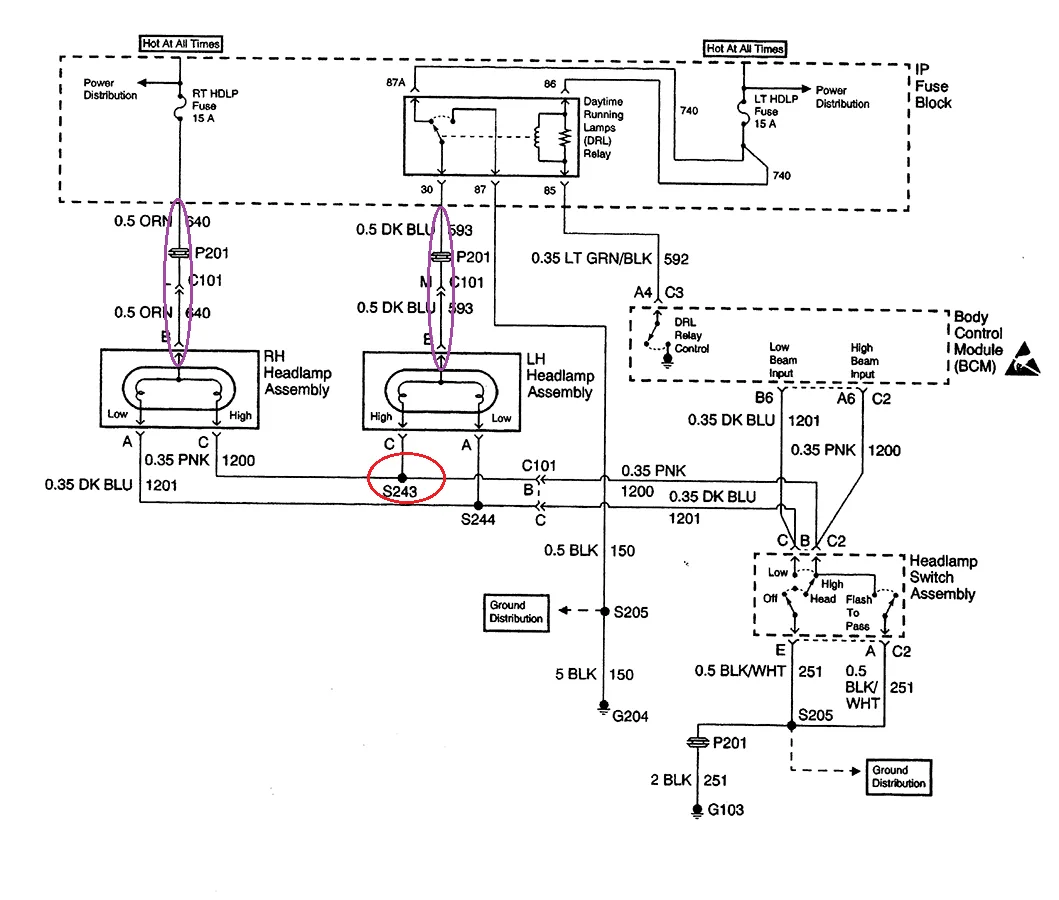

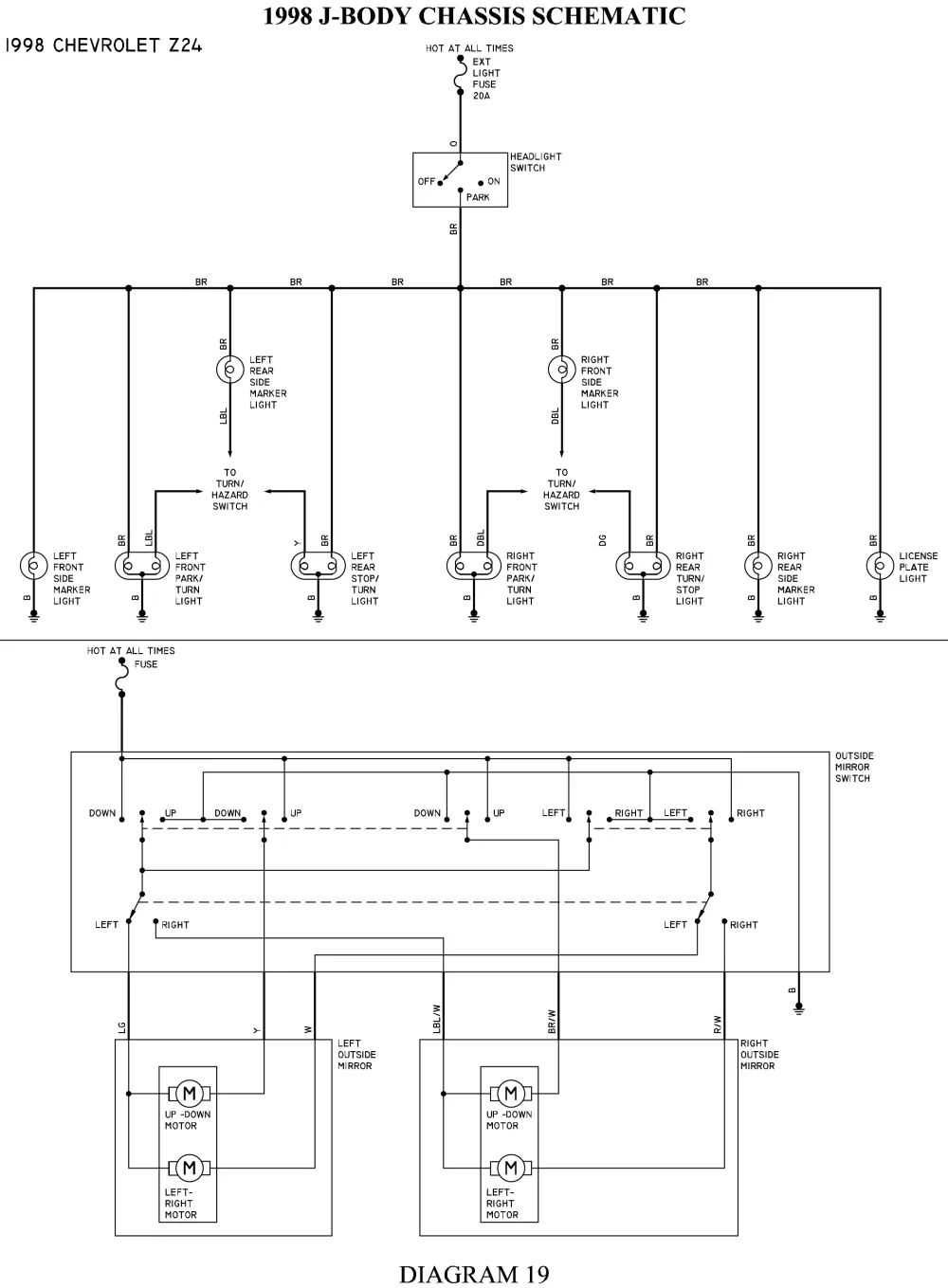

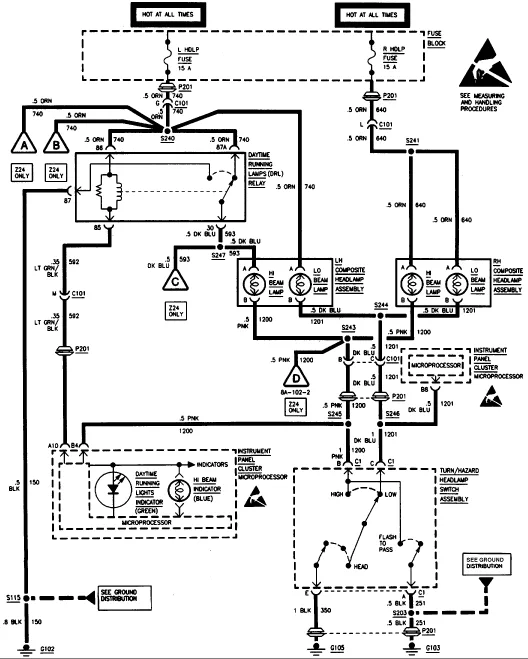

Understanding the Cavalier Headlight Wiring Diagram Schematic
The Cavalier headlight wiring diagram schematic consists of various components, including the headlight switch, dimmer switch, relay, and different fuses. Here’s a breakdown of how they all work together.
Headlight Switch
The headlight switch is the primary control for the headlights. When turned on, it sends power to the relays and fuses that control the headlights.
Dimmer Switch
The dimmer switch controls the brightness of the headlights. It is typically located on the steering column and can be turned up or down to adjust the brightness of the headlights.
Relay
The relay is an electrical switch that allows a low-power signal to control a high-power circuit. In the Cavalier headlight wiring diagram schematic, the relay is responsible for turning the headlights on and off.

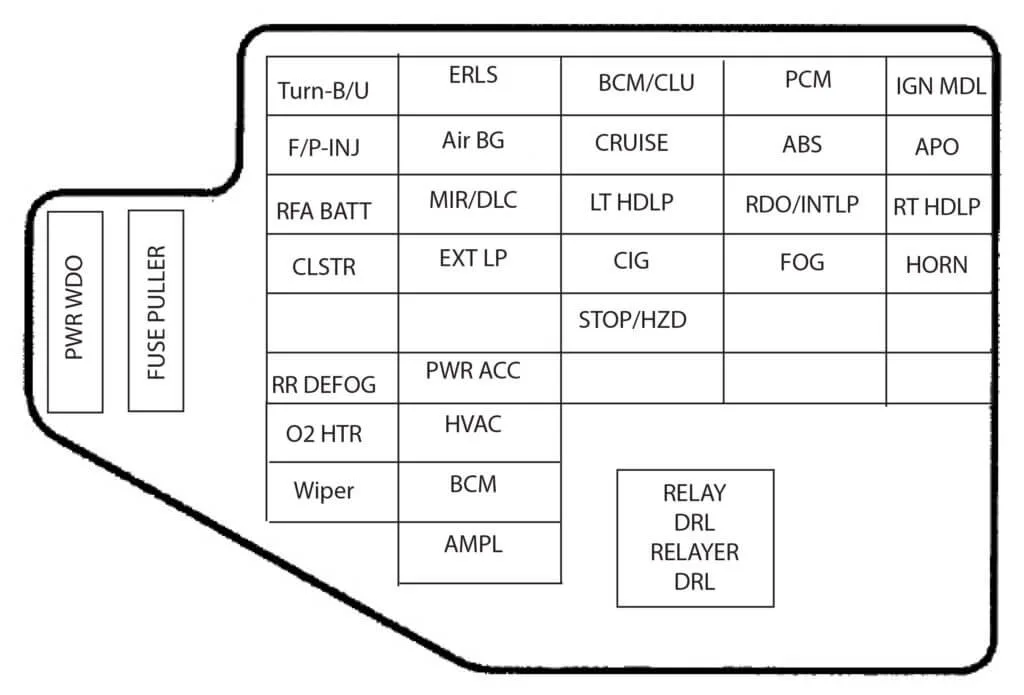

Fuses
Fuses are devices that protect electrical circuits from damage caused by excess current. In the Cavalier headlight wiring diagram schematic, there are multiple fuses that protect different components of the headlight system.
Troubleshooting the Cavalier Headlight Wiring Diagram Schematic
If you’re experiencing issues with your Cavalier headlights, the wiring diagram schematic can help guide you through the troubleshooting process. Here are some common problems and how to fix them.
Headlights Not Turning On
If your headlights are not turning on, it could be a problem with the headlight switch, relay, or fuses. Check the headlight switch to ensure it’s properly turned on and sending power to the relays and fuses. If that doesn’t fix the problem, check the relays and fuses to ensure they’re not blown.
Headlights Flickering
If your headlights are flickering, it could be a problem with the dimmer switch or a loose connection. Check the dimmer switch to ensure it’s properly adjusted and sending the correct voltage to the headlights. Also, check the connections to ensure they’re tight and secure.
One Headlight Not Working
If one of your headlights is not working, it could be a problem with the bulb or a loose connection. Check the bulb to ensure it’s not burnt out, and check the connection to ensure it’s properly connected.
FAQ
| Question | Answer |
|---|---|
| What is a wiring diagram schematic? | A visual representation of the electrical system and wiring connections in a particular vehicle. |
| Why use a wiring diagram schematic? | To save time and money when troubleshooting electrical issues in your vehicle. |
| Where can I find a wiring diagram schematic for my Cavalier? | In the service manual or online through various sources. |
| What should I check if my headlights are not turning on? | The headlight switch, relay, and fuses. |
| What should I check if one of my headlights is not working? | The bulb and the connection. |
In conclusion, understanding the Cavalier headlight wiring diagram schematic can help guide you through troubleshooting common issues with your vehicle’s headlights. By familiarizing yourself with the different components and how they work together, you can save time and money by identifying and fixing the root cause of the problem. Always refer to the correct schematic for your vehicle’s year, make, and model to ensure accurate troubleshooting.
