If you own an RV, you may know the importance of having a reliable and safe electrical system. One of the essential components of this system is the 50A RV plug. In this article, we’ll discuss the 50A RV plug wiring diagram and give you a comprehensive guide on how to wire it correctly. Keep reading to find out more.
What is a 50A RV Plug?
A 50A RV plug is a type of electrical plug that is designed to provide a high level of power to an RV. It is also known as a 14-50 RV plug, NEMA 14-50P, or RV 50A plug. This plug can handle up to 50 amps of current and is commonly found in larger RVs or those with multiple air conditioning units.
What are the Different Types of 50A RV Plugs?
There are two types of 50A RV plugs: the straight-blade plug and the twist-lock plug. The straight-blade plug has four prongs with two flat blades and two round pins, while the twist-lock plug has four prongs with two flat blades and two curved pins that lock into place. Both types of plugs are designed to handle the same amount of power.
What are the Benefits of using a 50A RV Plug?
Using a 50A RV plug has many benefits, such as:
- Providing more power to your RV
- Faster charging of your RV’s batteries
- Ability to run more appliances and electronics at once
- Less chance of overloading your RV’s electrical system
- Increased safety due to the higher amperage capacity
How to Wire a 50A RV Plug?
Wiring a 50A RV plug is not a complicated process, but it does require some knowledge of electrical wiring. Follow the steps below to wire your 50A RV plug:
Step 1: Turn off the Power
Before starting any electrical work, make sure to turn off the power source to the RV. This will prevent any electrical shock or damage to the RV’s electrical system.
Step 2: Remove the Cover
Remove the cover from the 50A RV plug to access the wiring terminals. Make sure to keep the screws and cover safe for later use.
Step 3: Strip the Wires
Strip about 1 inch of insulation from the end of each wire that you will connect to the RV plug. Make sure to use the right wire size and color for each terminal.
Step 4: Connect the Wires
Connect the wires to the corresponding terminals on the RV plug using a screwdriver. The black wire goes to the X terminal, the white wire goes to the Y terminal, and the green or bare wire goes to the G terminal. Make sure to tighten the screws securely.
Step 5: Secure the Wiring
After connecting the wires, make sure to secure them with cable ties or a wire clamp to prevent any movement or damage during travel.
Step 6: Test the Wiring
After wiring and securing the RV plug, test it with a multimeter to ensure that the connections are correct and there are no shorts or open circuits.
FAQs
| Question | Answer |
|---|---|
| What is the voltage of a 50A RV plug? | The voltage of a 50A RV plug is 120/240 volts. |

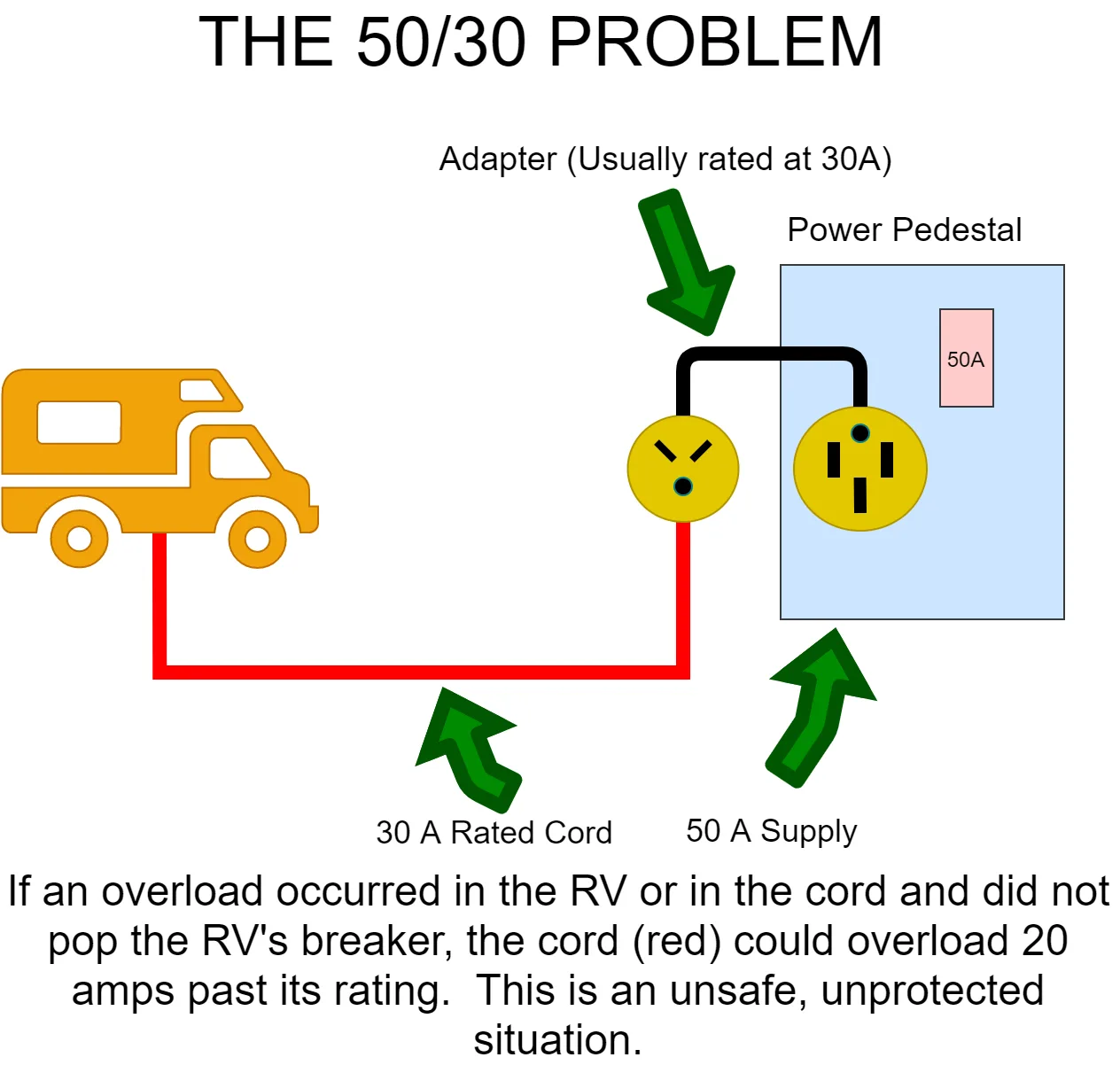

| Can I use a 50A RV plug for my 30A RV? | Yes, you can use a 50A RV plug for your 30A RV, but you will need to use a 30A to 50A adapter. |
| What is the difference between a 30A and 50A RV plug? | The main difference between a 30A and 50A RV plug is the amount of power they can handle. A 30A RV plug can handle up to 30 amps of current, while a 50A RV plug can handle up to 50 amps of current. |
| Can I wire a 50A RV plug myself? | If you have some knowledge of electrical wiring, you can wire a 50A RV plug yourself. However, it is recommended to seek professional help if you are not confident in your abilities. |
| How do I know if my RV needs a 50A plug? | If your RV has multiple air conditioning units or requires a high level of power for your appliances and electronics, it may need a 50A plug. Consult your RV’s owner’s manual or an electrician for guidance. |
Conclusion
Wiring a 50A RV plug is an essential task for ensuring a safe and reliable electrical system in your RV. By following the steps outlined in this article and using the right tools and materials, you can wire a 50A RV plug correctly. If you have any doubts or questions, it is always best to seek professional help from an electrician.
