Lighting plays a vital role in our everyday lives. It enhances the beauty of our homes, offices and surroundings. 3 phase power systems are commonly used in large enterprises, industries and commercial buildings. In this article, we will discuss the 3 phase lighting wiring diagram in depth.
What is 3 Phase Power System?
Before we move on to the 3 phase lighting wiring diagram, it is essential to understand what a 3 phase power system means. A 3 phase power system supplies electricity in three phases, hence its name. It is widely used in industrial, commercial and residential areas. The three phases have a voltage difference of 120 degrees and provide a constant supply of electricity.
Advantages of 3 Phase Power System
There are numerous advantages of a 3 phase power system. Some of them are as follows:
| Advantages | Explanation |
|---|---|
| Efficient Power Transmission | Provides a constant and reliable power supply |
| Cost-effective | Cuts down on energy bills and saves money in the long run |
| Provides High Power Output | 3 phase power systems can handle heavy loads and high power consumption |
| Less Voltage Drop | 3 phase power systems have a lower voltage drop as compared to single phase systems |

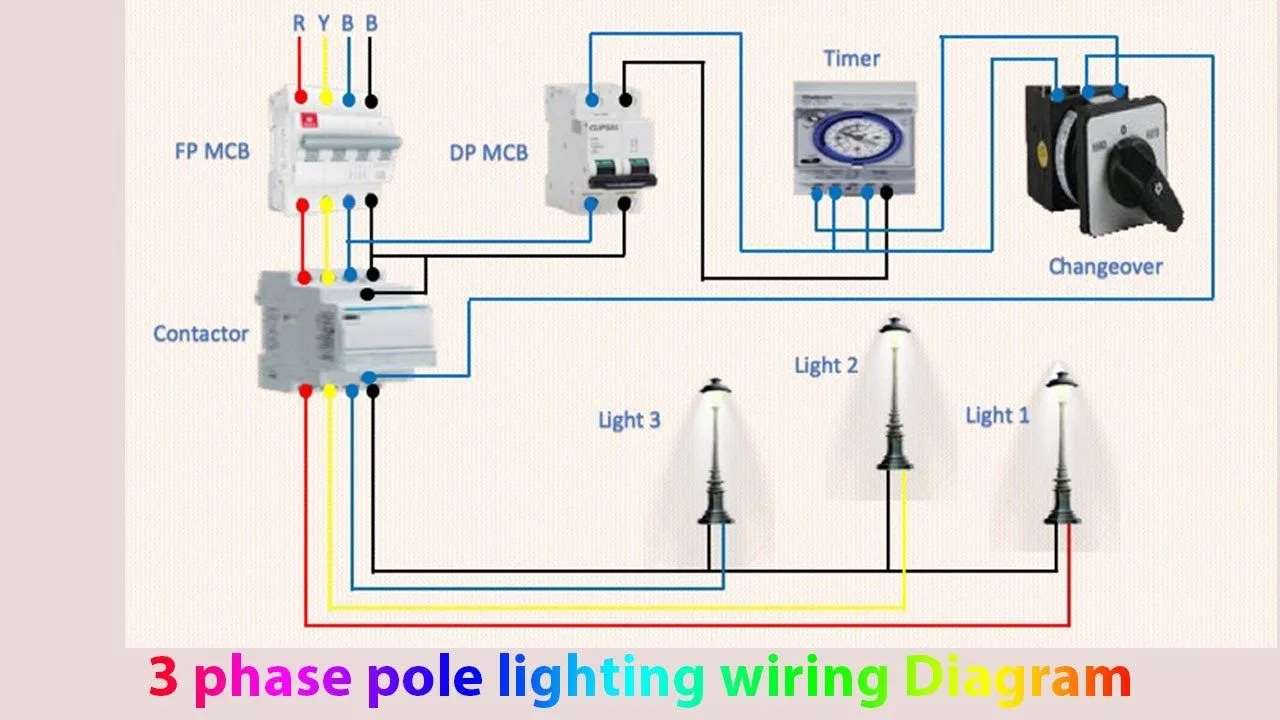

3 Phase Lighting Wiring Diagram
The 3 phase lighting wiring diagram is a crucial aspect of designing lighting systems in commercial and industrial buildings. It is essential to follow safety standards and regulations while installing a 3 phase lighting system. In this section, we will discuss the 3 phase lighting wiring diagram step by step.
Step 1
Determine the total wattage of the lighting system you want to install. It is essential to calculate the total wattage to determine the size of the circuit breaker and wires you need for the system.
Step 2
Select the appropriate circuit breaker size based on the total wattage of the lighting system. The circuit breaker should have a rating that is 20% higher than the total wattage of the lighting system.
Step 3
Determine the wire size you need based on the total wattage of the system and the length of the wire. The wire size should be chosen to match the rating of the circuit breaker and prevent overheating and fire hazards.
Step 4
Choose the appropriate lighting fixtures and calculate the total number of fixtures you need based on the total wattage of the system.
Step 5
Connect the lighting fixtures to the wires and install them in the designated areas. Make sure to follow safety standards and regulations while installing the fixtures.
FAQs
Q1. How many wires are required for a 3 phase lighting system?
A 3 phase lighting system requires four wires- three phase wires and one neutral wire.
Q2. Can I use a single-phase circuit breaker for a 3 phase lighting system?
No, a single-phase circuit breaker is not suitable for a 3 phase lighting system. You need to use a 3 phase circuit breaker for a 3 phase lighting system.
Q3. Can I connect different types of lighting fixtures to a 3 phase lighting system?
Yes, you can connect different types of lighting fixtures to a 3 phase lighting system. However, make sure to follow safety standards and regulations while installing the fixtures.
Q4. What is the maximum voltage for a 3 phase lighting system?
The maximum voltage for a 3 phase lighting system is 415 volts in most countries.
Q5. What is the difference between a single-phase and 3 phase lighting system?
A single-phase lighting system supplies electricity in a single phase, while a 3 phase lighting system supplies electricity in three phases. The 3 phase lighting system is more efficient and can handle heavy loads.
Conclusion
The 3 phase lighting wiring diagram is an important aspect of designing lighting systems in commercial and industrial buildings. It is essential to follow safety standards and regulations while installing the system. By following the steps discussed in this article, you can install a safe and reliable 3 phase lighting system.
