Electrical wiring can be intimidating, especially for those who are not familiar with it. However, with the right information and guidance, it can be easily understood and implemented. In this article, we will discuss everything you need to know about wiring your 240V light.
What is 240V Light Wiring?
240V light wiring refers to the process of connecting a light fixture to a 240-volt power source. In the United States, most homes have a 120-volt power supply, but some appliances and larger light fixtures require a higher voltage to operate efficiently.

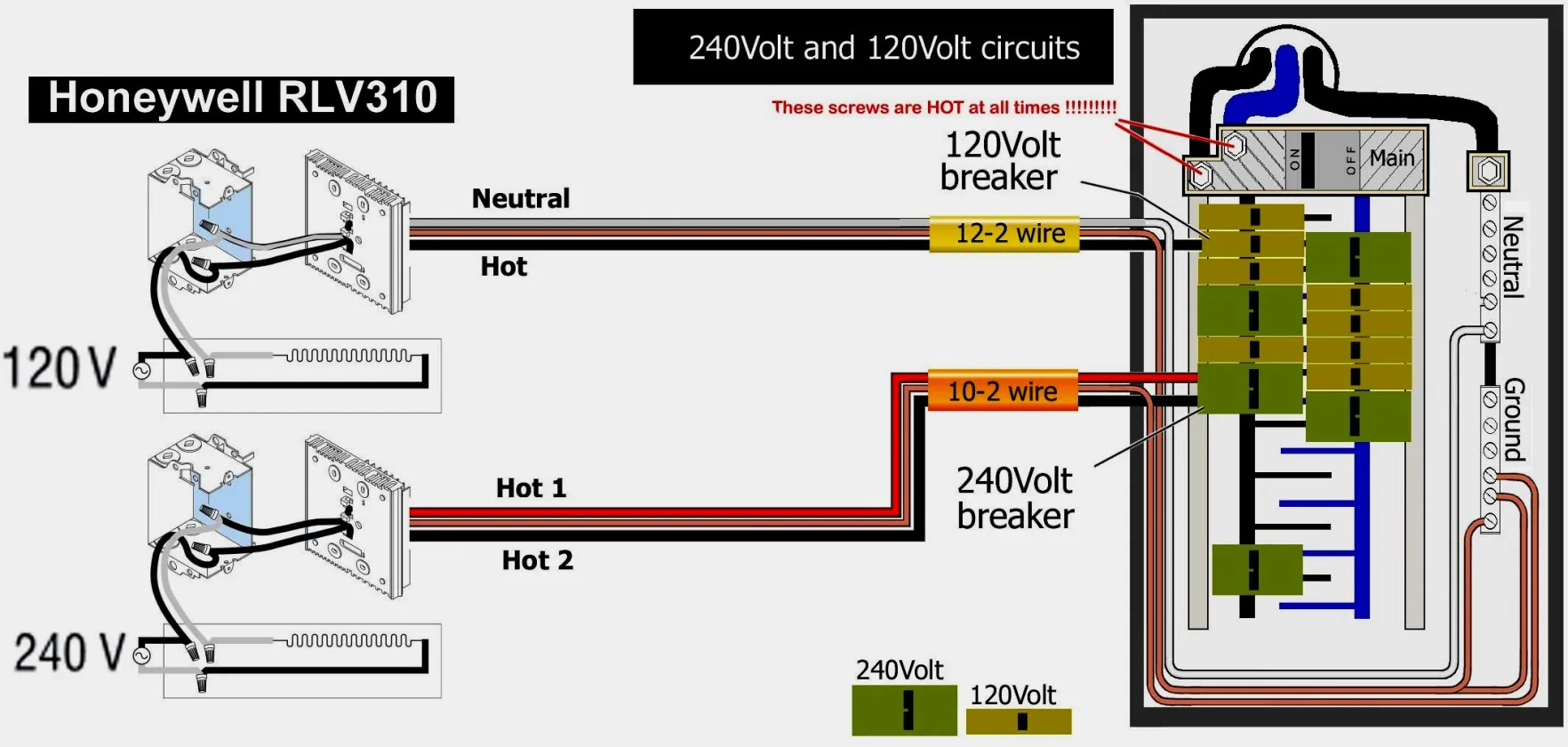

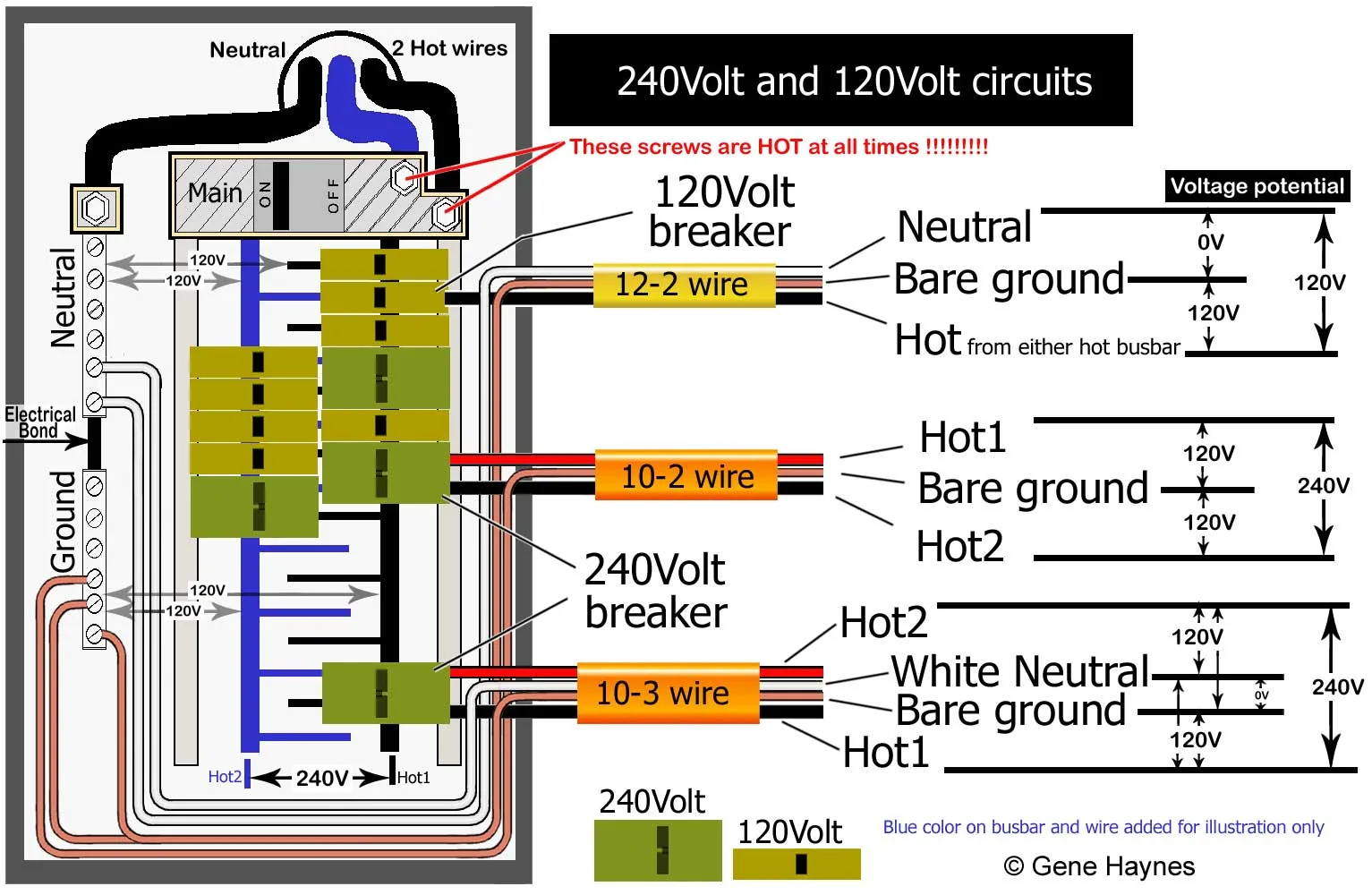

A 240V circuit consists of two hot wires and a ground wire. The hot wires carry the electricity from the power source to the light fixture, while the ground wire provides a path for any excess electricity to flow safely away from the circuit.
Why Use 240V Wiring for Lighting?
There are a few reasons why you might choose to use 240V wiring for your lighting. Firstly, it allows you to use larger light fixtures that require a higher voltage to operate. Secondly, it can reduce the number of circuits needed to power your home, which can save you money on installation costs.
What Tools and Materials Do You Need?
Before you begin your wiring project, there are a few tools and materials that you will need:
| Tools | Materials |
|---|---|
| Wire strippers | 240V light fixture |
| Wire nuts | 240V wire |
| Screwdrivers | Circuit breaker |
| Electric drill | Romex cable |
Step-by-Step Guide for Wiring Your 240V Light
Step 1: Turn Off the Power
The first step in any electrical project is to turn off the power to the circuit you will be working on. Locate the circuit breaker that controls the circuit you will be working on and turn it off.
Step 2: Install the Circuit Breaker

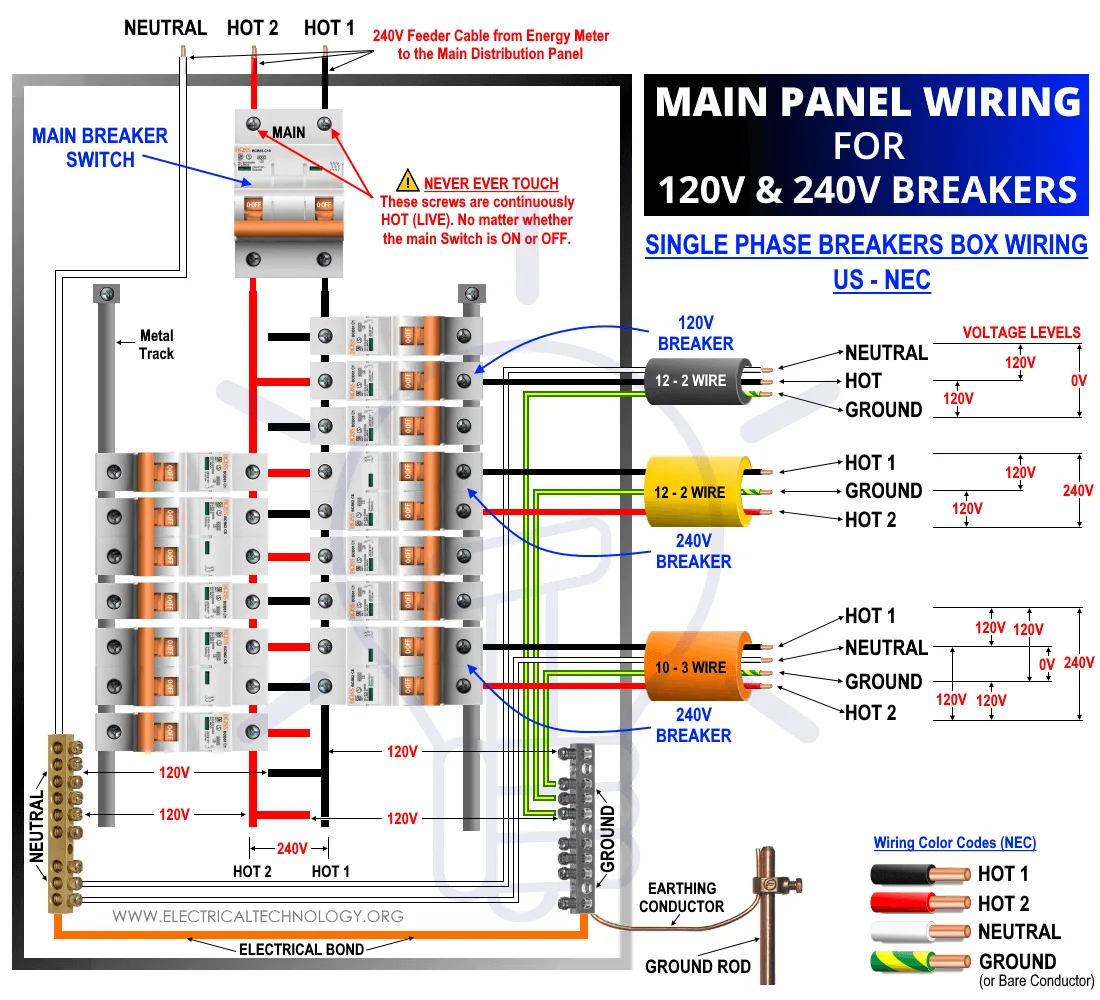

If you do not already have a 240V circuit, you will need to install one. This will require the installation of a 240V circuit breaker in your main electrical panel. Consult a licensed electrician if you are unsure about how to do this.
Step 3: Run the Wiring
Using your electric drill, drill a hole in the framing where your light fixture will be installed. Run the Romex cable from the electrical panel to the location where the light fixture will be installed. Strip the ends of the wires and connect them to the light fixture using wire nuts.
Step 4: Connect the Ground Wire
The ground wire should be connected to the green screw on the 240V light fixture. This will provide a safe path for any excess electricity to flow away from the circuit.
Step 5: Turn On the Power
Once you have completed the installation and double-checked all of your connections, you can turn the power back on. Test the light to make sure it is working properly before finishing up.
FAQ
What is the maximum wattage for a 240V light?
The maximum wattage for a 240V light will depend on the circuit breaker and wiring used. Check the manufacturer’s specifications for your specific light fixture to determine the maximum wattage.
What type of wire should I use for a 240V light?
You should use 240V wire for your light fixture. This wire is specifically designed for high-voltage applications and will provide the necessary insulation and protection.
Can I use a 240V light on a 120V circuit?
No, you cannot use a 240V light on a 120V circuit. The light fixture requires a higher voltage to operate properly and doing so can be dangerous.
What size circuit breaker do I need for a 240V light?
The size of the circuit breaker you need will depend on the wattage of your light fixture and the size of the wiring used. Consult a licensed electrician to determine the proper size for your specific installation.
Is it safe to install a 240V light fixture myself?
While it is possible to install a 240V light fixture yourself, it is recommended that you consult a licensed electrician to ensure that the installation is done safely and correctly.
Conclusion
Wiring your 240V light fixture may seem daunting at first, but with the right information and tools, it can be done safely and efficiently. Follow the steps outlined in this article and consult a licensed electrician if you are unsure about any aspect of the installation process.
