Are you looking to upgrade your 2014 Dodge Ram’s stereo system? Before you do, it’s important to have a good understanding of the wiring system. In this article, we will provide you with a comprehensive guide to the 2014 Dodge Ram stereo wiring diagram. From the different color codes to common questions, we’ve got you covered.
Understanding Color Codes
Before you start wiring your new stereo system, it’s important to be familiar with the different color codes. Here’s a breakdown:
| Wire Color | Function |
|---|---|
| Yellow | Battery |
| Red | Accessory |
| Black | Ground |
| Blue | Power antenna |
| Orange | Illumination |
| White | Front left speaker (+) |
| White/Black stripe | Front left speaker (-) |
| Gray | Front right speaker (+) |
| Gray/Black stripe | Front right speaker (-) |
| Green | Rear left speaker (+) |
| Green/Black stripe | Rear left speaker (-) |
| Purple | Rear right speaker (+) |
| Purple/Black stripe | Rear right speaker (-) |
Keep in mind that these color codes may vary depending on the specific model of your 2014 Dodge Ram, so be sure to refer to the wiring diagram for your exact vehicle.
FAQs

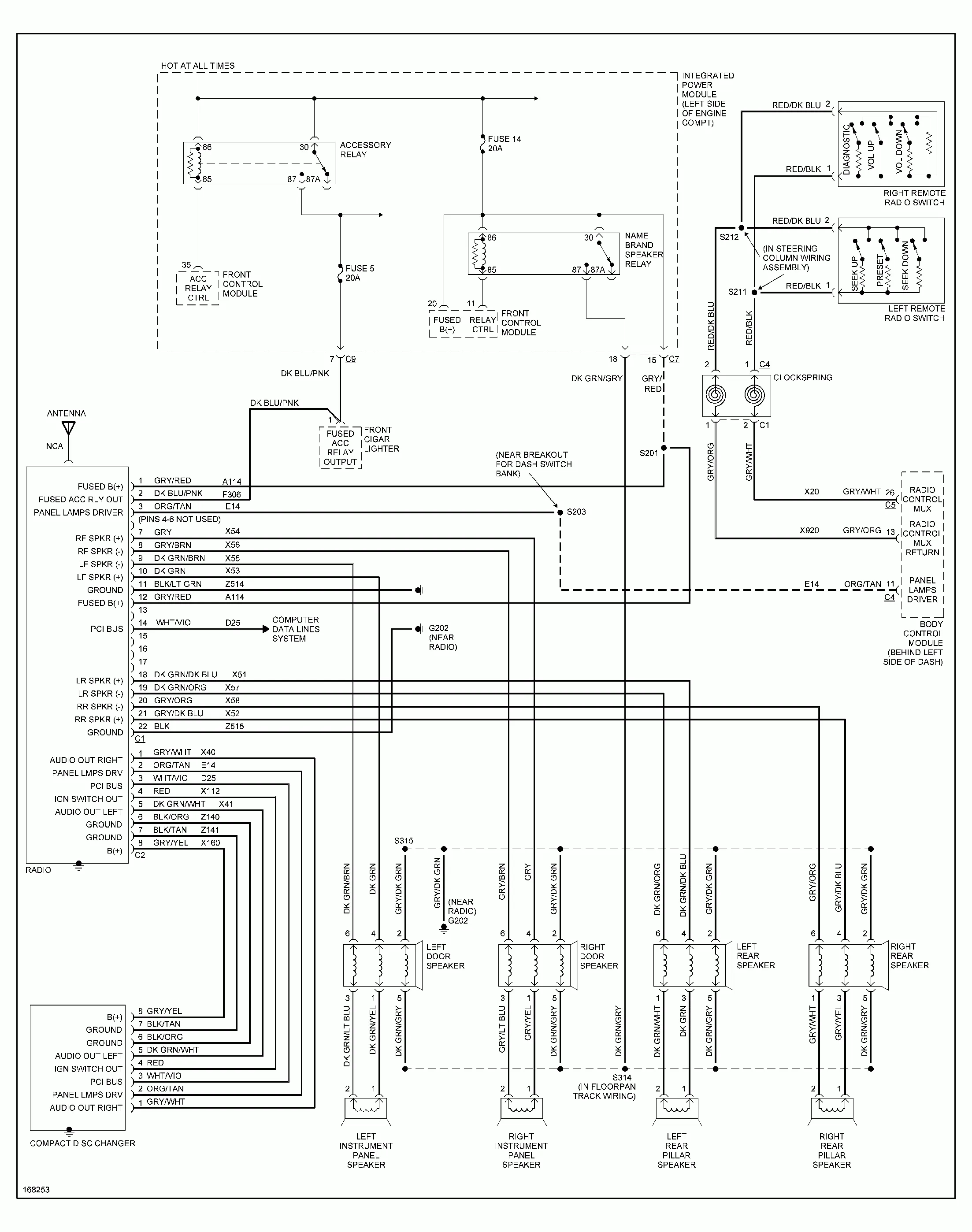

What is the Wiring Diagram for a 2014 Dodge Ram Stereo?
The wiring diagram for the 2014 Dodge Ram stereo varies depending on the specific model of your vehicle. However, most models follow the same color codes for the wires. Refer to our color code breakdown for a general idea on how to wire your stereo.
Is it Difficult to Install a New Stereo System in a 2014 Dodge Ram?
It can be difficult to install a new stereo system in a 2014 Dodge Ram if you’re not familiar with car audio installations. However, with the right tools and knowledge, it can be a straightforward process. We recommend consulting with a professional audio installer if you’re not confident in your abilities.
What Tools Do I Need to Install a New Stereo System in a 2014 Dodge Ram?
You will need a few tools to install a new stereo system in a 2014 Dodge Ram. Here’s a list of the essential tools:
- Wire cutters/strippers
- Screwdrivers
- Crimping tool
- Tape

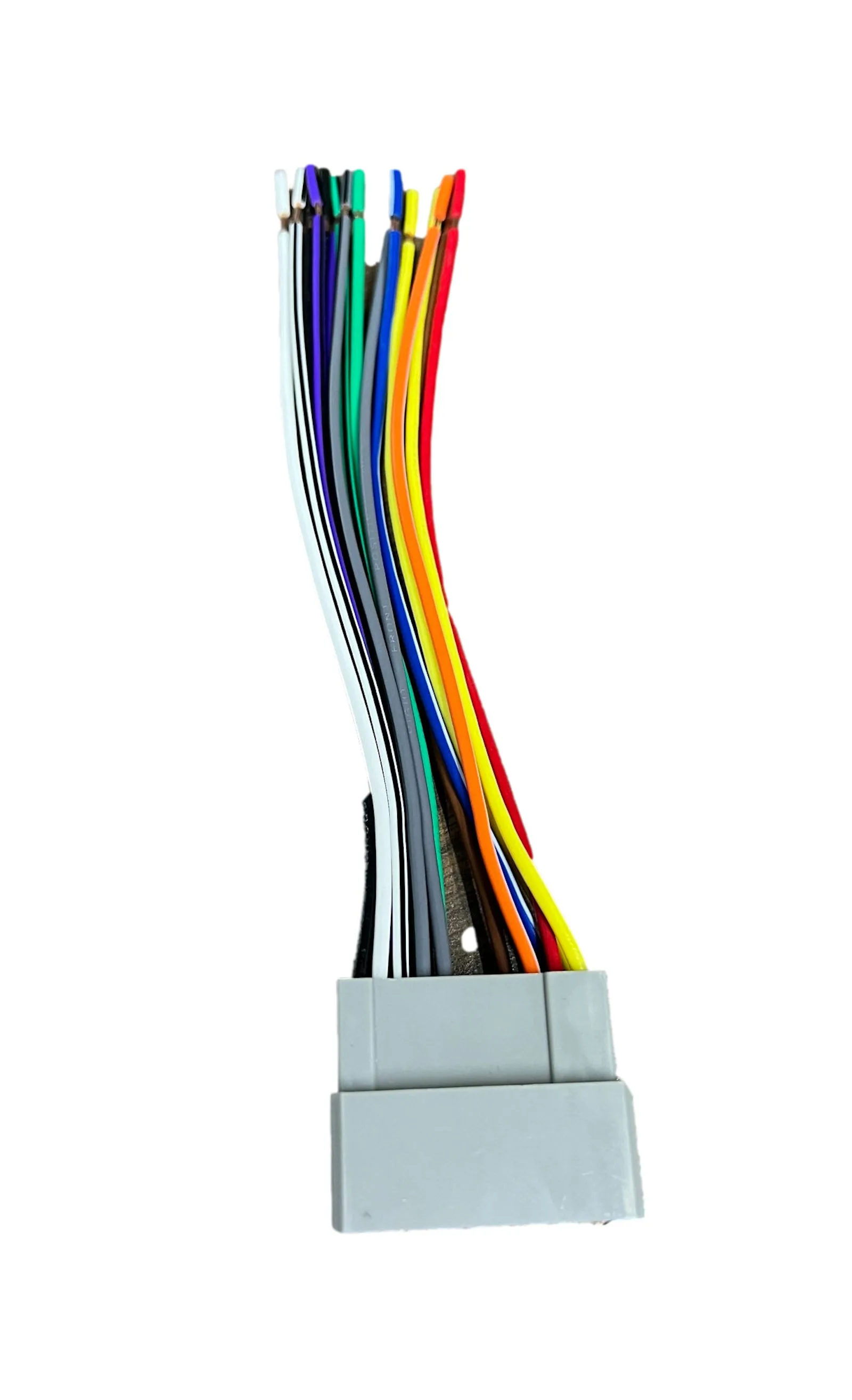

- Wiring harness adapter
How Do I Connect the Wires to the New Stereo?
Connect the wires to the new stereo by following these steps:
- Strip the end of each wire to reveal the metallic core.
- Connect each wire to the corresponding wire on the wiring harness adapter.
- Cramp the wires together using a crimping tool.
- Wrap each crimped wire with tape to secure it in place.
Conclusion
Upgrading the stereo system in your 2014 Dodge Ram can improve the overall listening experience. By referring to our comprehensive guide to the 2014 Dodge Ram stereo wiring diagram, you can confidently install your new system. Keep in mind that if you’re unsure about any step of the installation process, it’s always best to consult with a professional audio installer for assistance.
