Are you looking for a wiring diagram for your 2008 Mustang’s radio? Look no further! In this article, we will provide you with all of the information you need to properly wire your Mustang’s radio. From the wiring diagram to frequently asked questions, we have you covered.
The Wiring Diagram

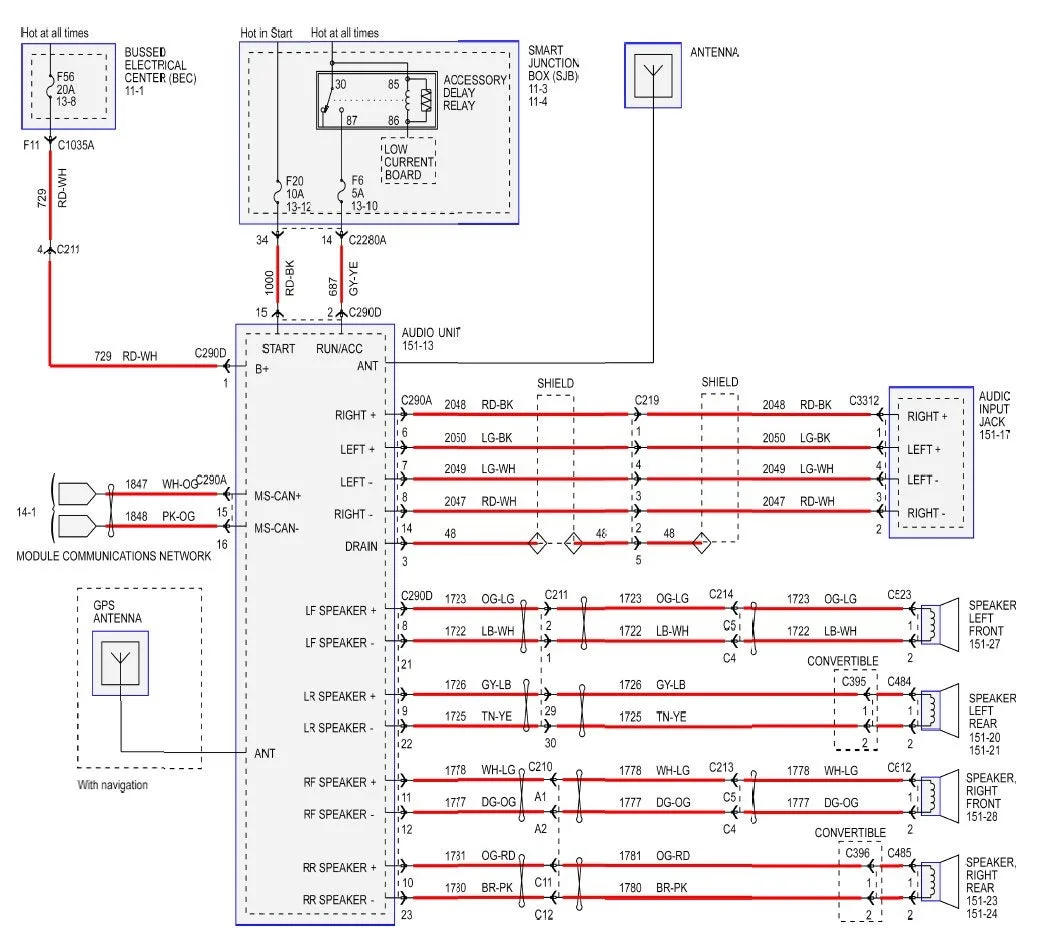

The first step in properly wiring your 2008 Mustang’s radio is to utilize a wiring diagram. This diagram will show you which wires connect to which components, ensuring that you wire your radio correctly. Below is the wiring diagram for the 2008 Mustang radio:
| Wire Color | Function |
|---|---|
| White | Left Front Speaker Positive Wire (+) |
| White/Brown | Left Front Speaker Negative Wire (-) |
| Green | Right Front Speaker Positive Wire (+) |
| Green/Brown | Right Front Speaker Negative Wire (-) |
| Yellow | Left Rear Speaker Positive Wire (+) |
| Yellow/Brown | Left Rear Speaker Negative Wire (-) |
| Purple | Right Rear Speaker Positive Wire (+) |
| Purple/Brown | Right Rear Speaker Negative Wire (-) |
| Blue/Red | Amplifier Turn-On Wire |
| White/Yellow | Auxiliary Input |
| White/Red | Speed Sensor Wire |
| Black/Orange | Ground Wire |
Make sure to use this diagram when wiring your radio to ensure that you wire everything correctly.
Frequently Asked Questions
1. Can I install an aftermarket radio in my 2008 Mustang?
Yes, you can install an aftermarket radio in your 2008 Mustang. However, you will need to use a wiring harness adapter to ensure that the aftermarket radio is properly wired.
2. Can I install a subwoofer in my 2008 Mustang?
Yes, you can install a subwoofer in your 2008 Mustang. However, you will need to use a subwoofer wiring kit to ensure that the subwoofer is properly wired.
3. What is the purpose of the amplifier turn-on wire?
The amplifier turn-on wire is used to turn on an aftermarket amplifier when the radio is turned on. This wire must be connected to the amplifier’s remote turn-on input.
4. What is the purpose of the speed sensor wire?
The speed sensor wire is used to provide the radio with information about the vehicle’s speed. This information is used for certain radio features, such as the speed-sensitive volume control.
5. What is the purpose of the ground wire?
The ground wire is used to provide a ground connection for the radio. Without a proper ground connection, the radio will not function properly.
Conclusion
Now that you have all of the information you need to properly wire your 2008 Mustang’s radio, you can get started on your installation. Remember to use the wiring diagram and frequently asked questions to ensure that your radio is wired correctly. If you have any additional questions, feel free to reach out to a professional for assistance.
