If you own a 2007 Chevrolet Silverado, you may need to replace or upgrade your radio at some point. This can be a daunting task, especially if you don’t have a wiring diagram to guide you. In this article, we’ll provide you with a detailed 2007 Silverado radio wiring diagram to help you make the process easier.
What is a wiring diagram?
Before we dive into the wiring diagram, let’s talk about what it is and why it’s important. A wiring diagram is a visual representation of the electrical circuitry in a vehicle. It shows the location and function of each wire, as well as the connections between them. Having a wiring diagram is important because it allows you to troubleshoot and repair electrical issues in your vehicle. It can also help you install new components, like a radio, without damaging your vehicle’s electrical system.

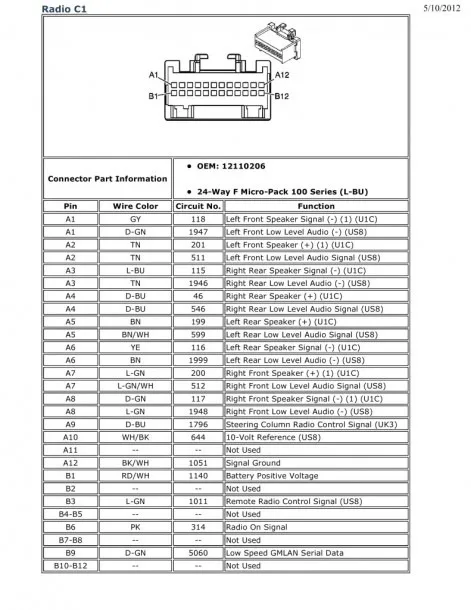

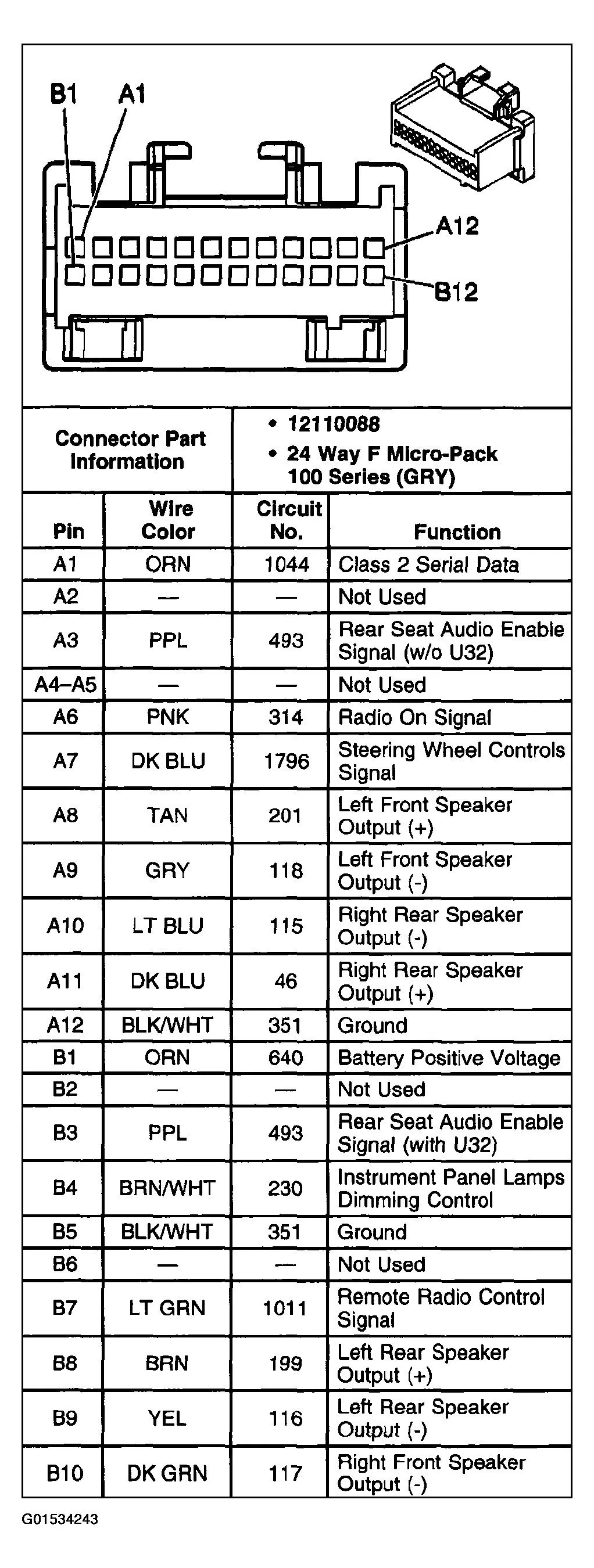

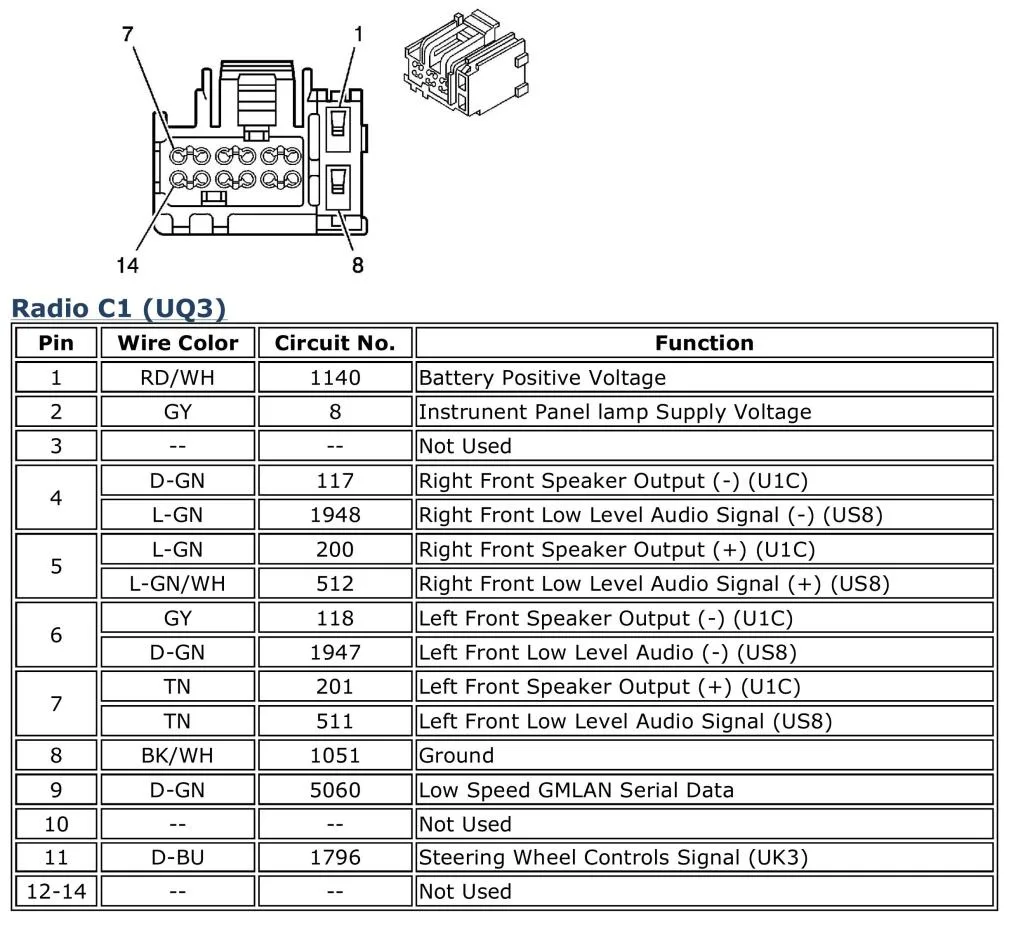

2007 Silverado Radio Wiring Diagram
Here is the 2007 Silverado radio wiring diagram:
| Wire Color | Function | Location |
|---|---|---|
| Yellow | 12V Constant | Radio Harness |
| Red/White | Ignition Switched | Radio Harness |
| Dark Green | Left Rear Speaker (+) | Radio Harness |
| Light Green | Left Rear Speaker (-) | Radio Harness |
| Brown | Left Front Speaker (+) | Radio Harness |
| Yellow | Left Front Speaker (-) | Radio Harness |
| Dark Blue | Right Front Speaker (+) | Radio Harness |
| Light Blue | Right Front Speaker (-) | Radio Harness |
| Tan | Right Rear Speaker (+) | Radio Harness |
| Gray | Right Rear Speaker (-) | Radio Harness |
| Orange | 12V Switched | Radio Harness |
| Black | Ground | Radio Harness |
What do the wires do?
Now that you have the wiring diagram, you may be wondering what each wire does. Here’s a breakdown of each wire’s function: – Yellow: 12V Constant – provides a constant power source to the radio, even when the vehicle is turned off. – Red/White: Ignition Switched – provides power to the radio when the ignition is turned on. – Dark Green/Light Green: Left Rear Speaker – these wires connect to the left rear speaker. The green wire is positive (+), and the light green wire is negative (-). – Brown/Yellow: Left Front Speaker – these wires connect to the left front speaker. The brown wire is positive (+), and the yellow wire is negative (-). – Dark Blue/Light Blue: Right Front Speaker – these wires connect to the right front speaker. The dark blue wire is positive (+), and the light blue wire is negative (-). – Tan/Gray: Right Rear Speaker – these wires connect to the right rear speaker. The tan wire is positive (+), and the gray wire is negative (-). – Orange: 12V Switched – provides power to the radio when the key is in the accessory position. – Black: Ground – provides a ground connection for the radio.
FAQ
Here are some frequently asked questions about the 2007 Silverado radio wiring diagram:
Can I install an aftermarket radio using this wiring diagram?
Yes, this wiring diagram will work for installing an aftermarket radio in your 2007 Silverado. Just make sure to match up the wire colors correctly.
What if my wire colors don’t match the diagram?
It’s possible that your vehicle’s wiring has been modified or the colors have faded over time. If this is the case, you’ll need to use a multimeter to test the wires and determine their function.
Can I use this diagram for other GM vehicles?
This wiring diagram is specific to the 2007 Silverado. While some of the wire functions may be the same in other GM vehicles, we recommend using a wiring diagram specific to your vehicle for the best results.
Conclusion
We hope this article has been helpful in understanding the 2007 Silverado radio wiring diagram. Remember, having a wiring diagram can make all the difference when it comes to installing or troubleshooting electrical components in your vehicle. If you have any questions, don’t hesitate to leave a comment below.
