Are you looking for a stereo wiring diagram for your 1994 Toyota Camry? Look no further! In this article, we will provide you with all the information you need to install a new stereo in your Toyota Camry. We will also include frequently asked questions and tables to help you understand the wiring process better.
Why do you need a stereo wiring diagram?
Installing a new stereo in your car can be a great way to upgrade your sound system. However, it can be challenging to figure out which wires go where. This is where a stereo wiring diagram comes in handy. It provides you with a guide on how to connect the wires correctly, ensuring that you don’t damage your car’s electrical system.
Before we get started, please note that the stereo wiring diagram provided below is for a 1994 Toyota Camry with a standard audio system. If your car has a premium audio system, the wiring may differ slightly. Therefore, we recommend double-checking your car’s wiring diagram or consulting a professional.
What you’ll need
Before you start wiring your new stereo, you’ll need a few tools and materials. Here’s a list of things you’ll need:
| Item | Description |
|---|---|
| Wire strippers | A tool to strip the insulation off the wires |
| Crimping tool | A tool to connect wires together |
| Electrical tape | To protect and insulate wires |
| Stereo wiring harness | A plug and play wiring harness that connects to your car’s factory wiring |
| Stereo mounting kit | A kit that allows you to mount your new stereo into your car’s dashboard |
Step-by-step guide
Step 1: Disconnect the battery
Before you start working on your car’s electrical system, it’s essential to disconnect the battery. This will prevent any electrical shocks or damage to your car’s electrical system. Locate your car’s battery and disconnect the negative cable.
Step 2: Remove the factory stereo
To install a new stereo in your car, you need to remove the factory stereo first. This involves removing any screws or clips that hold the stereo in place. Once the stereo is loose, unplug the wiring harness and antenna cable from the back of the stereo.
Step 3: Connect the wiring harness
Connect the wiring harness that came with your stereo to the wiring harness in your car using the crimping tool. Make sure you connect the wires according to the wiring diagram provided below. Once you’ve connected all the wires, use electrical tape to protect and insulate them.
Step 4: Mount the new stereo
Mount your new stereo into the stereo mounting kit. This will allow you to mount the stereo into your car’s dashboard. Once the stereo is mounted, plug in the wiring harness and antenna cable.
Step 5: Test the stereo
Before you reassemble the dashboard, test the stereo to ensure everything is working correctly. Reconnect the negative cable to the battery and turn on the stereo. Make sure all the speakers are working correctly, and the stereo can play music from all sources.
Wiring Diagram

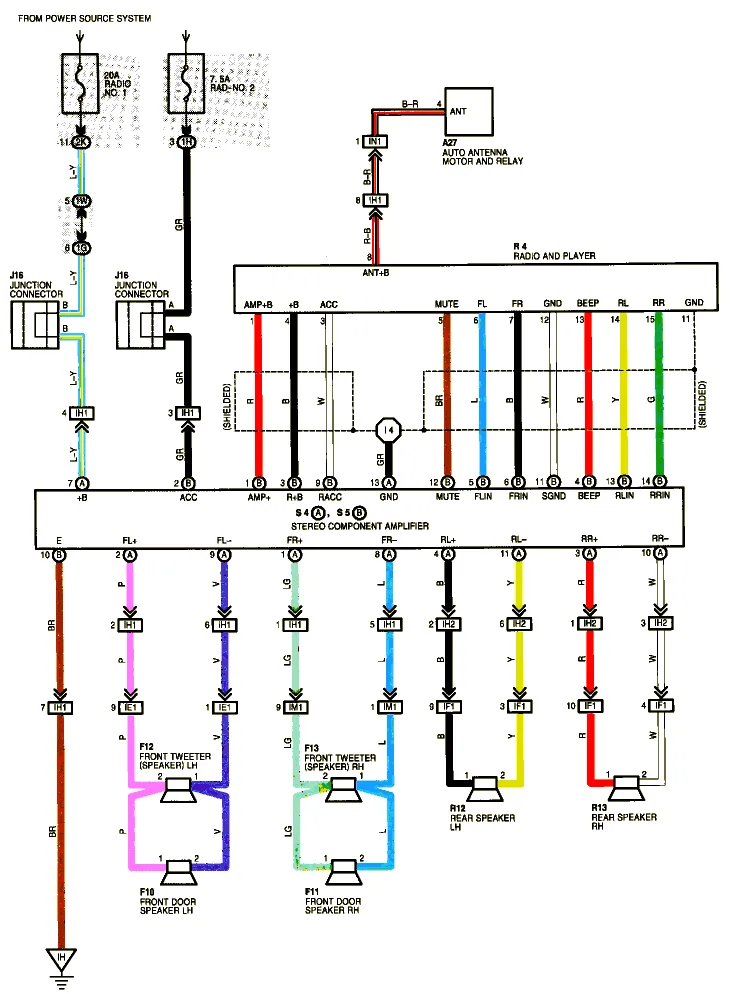

Here’s a wiring diagram for a 1994 Toyota Camry with a standard audio system:
| Wire Color | Function |
|---|---|
| White | Front Left Speaker (+) |
| White with Black Stripe | Front Left Speaker (-) |
| Gray | Front Right Speaker (+) |
| Gray with Black Stripe | Front Right Speaker (-) |
| Green | Rear Left Speaker (+) |
| Green with Black Stripe | Rear Left Speaker (-) |
| Purple | Rear Right Speaker (+) |
| Purple with Black Stripe | Rear Right Speaker (-) |
| Blue | Power Antenna |
| Red | Accessory |
| Yellow | Battery |
| Black | Ground |
Frequently Asked Questions
How do I find the wiring diagram for my car?
The wiring diagram for your car can usually be found in the owner’s manual or online. You can also contact your car’s manufacturer or a professional installer for assistance.
Do I need a wiring harness to install a new stereo?
While it’s possible to wire your new stereo directly to your car’s wiring, we recommend using a wiring harness. A wiring harness allows you to connect your new stereo to your car’s wiring quickly and easily without damaging your car’s electrical system.
Can I install a new stereo myself?
Yes. Installing a new stereo in your car can be done yourself with the right tools and materials. However, if you’re unsure about your abilities, we recommend consulting a professional.
What should I do if my new stereo doesn’t work?
If your new stereo doesn’t work, double-check your wiring connections and ensure you’ve connected all the wires correctly. If you’re still having issues, consult your stereo’s manual or contact the manufacturer for assistance.
If your car has a premium audio system, the wiring may differ slightly from the standard audio system. We recommend double-checking your car’s wiring diagram or consulting a professional before installing a new stereo.
Conclusion
Installing a new stereo in your 1994 Toyota Camry is a great way to upgrade your sound system. With the help of this article, you now have all the information you need to install a new stereo correctly. Remember to use a wiring harness and follow the wiring diagram provided to ensure your car’s electrical system is not damaged. If you have any questions or concerns, please consult a professional installer or contact your car’s manufacturer.
