If you are looking to install LED lights in your vehicle or any other application, it is important to know how to wire them correctly to ensure they work properly and safely. This article will provide you with a step-by-step guide on how to wire 12V LED lights and includes a wiring diagram and frequently asked questions.
What You’ll Need
Before we get started, you’ll need to gather a few essential tools and materials:
- 12V LED lights
- A power source (such as a car battery)
- Wire cutters/strippers
- Electrical tape
- A fuse
- A switch (optional)
Wiring Diagram

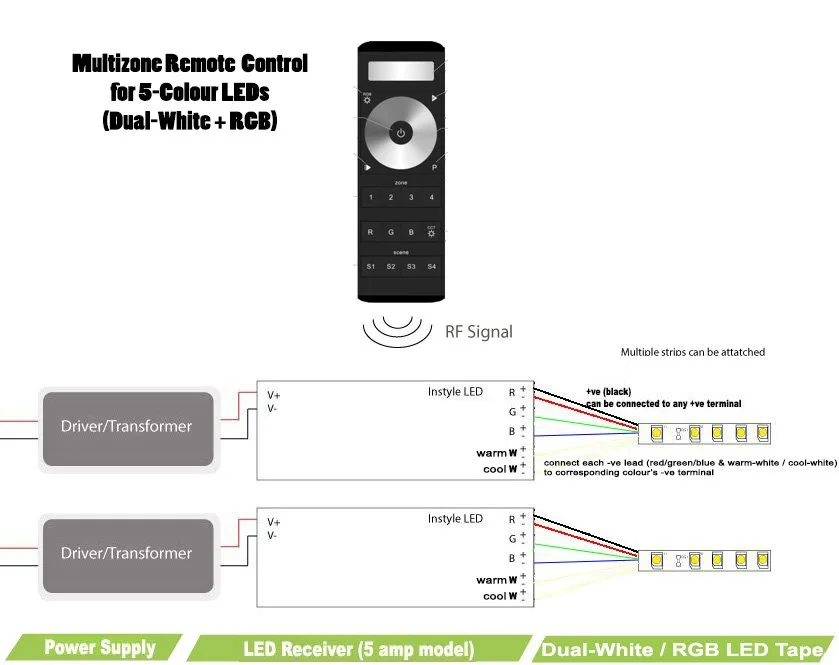

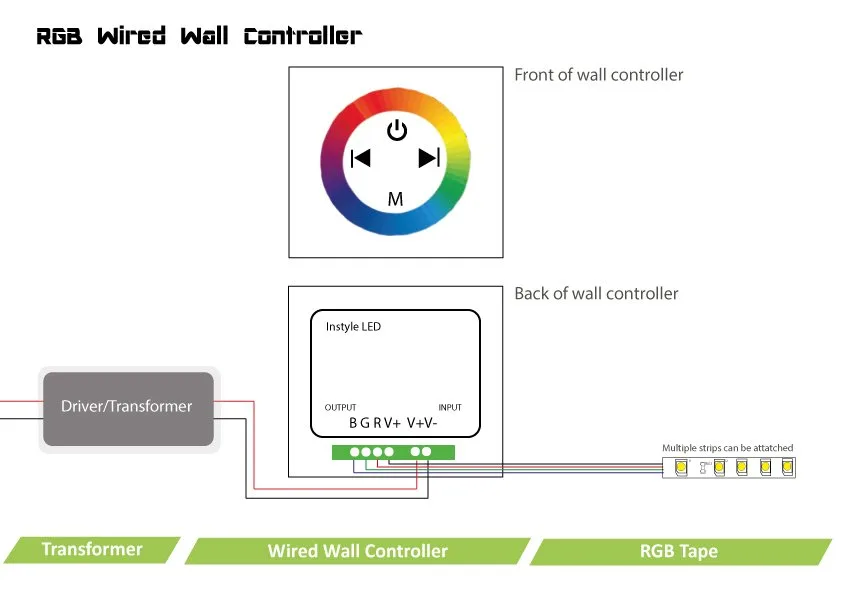

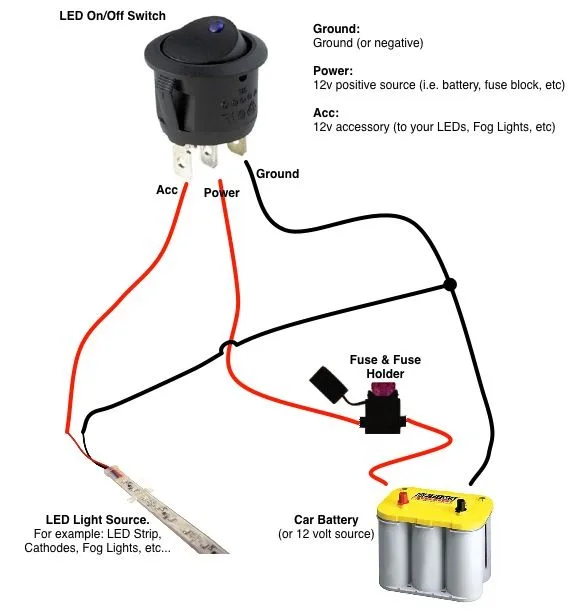

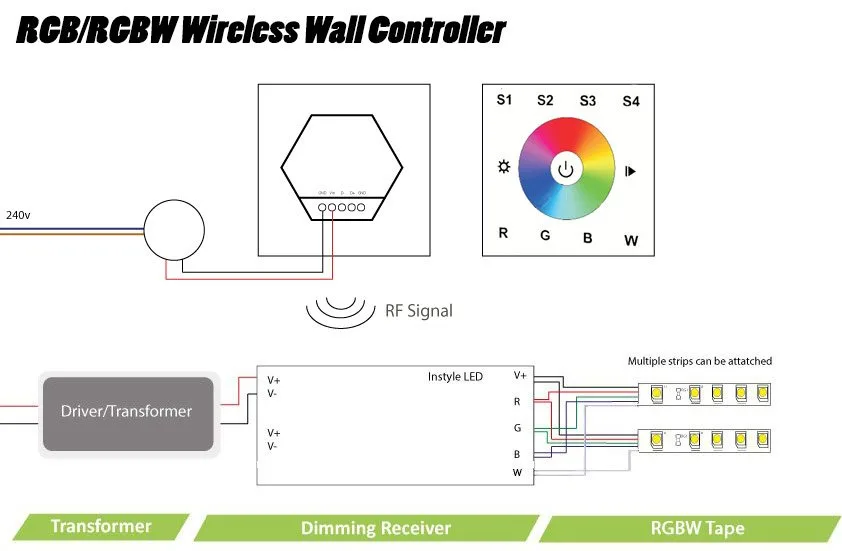

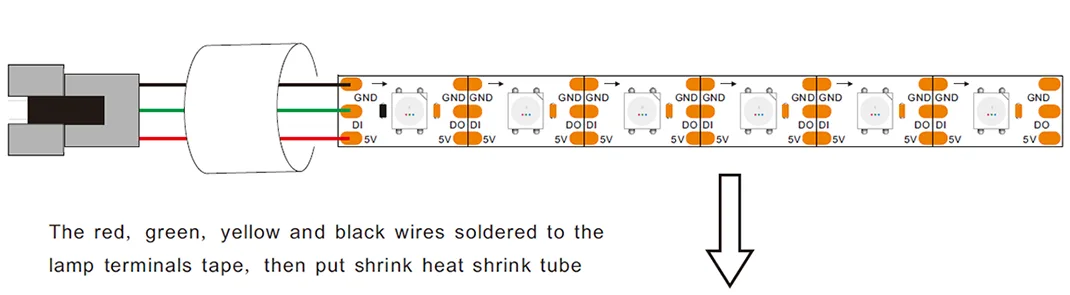

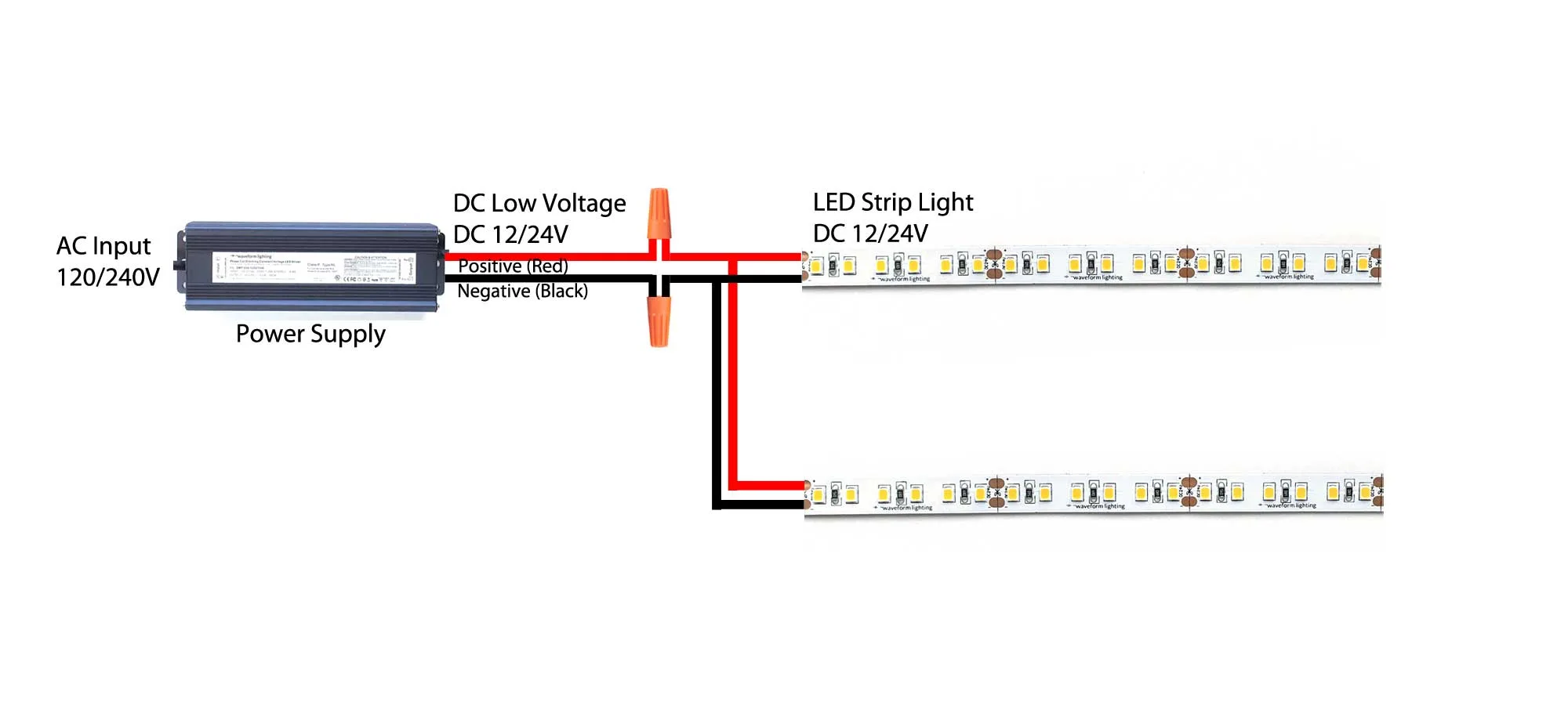

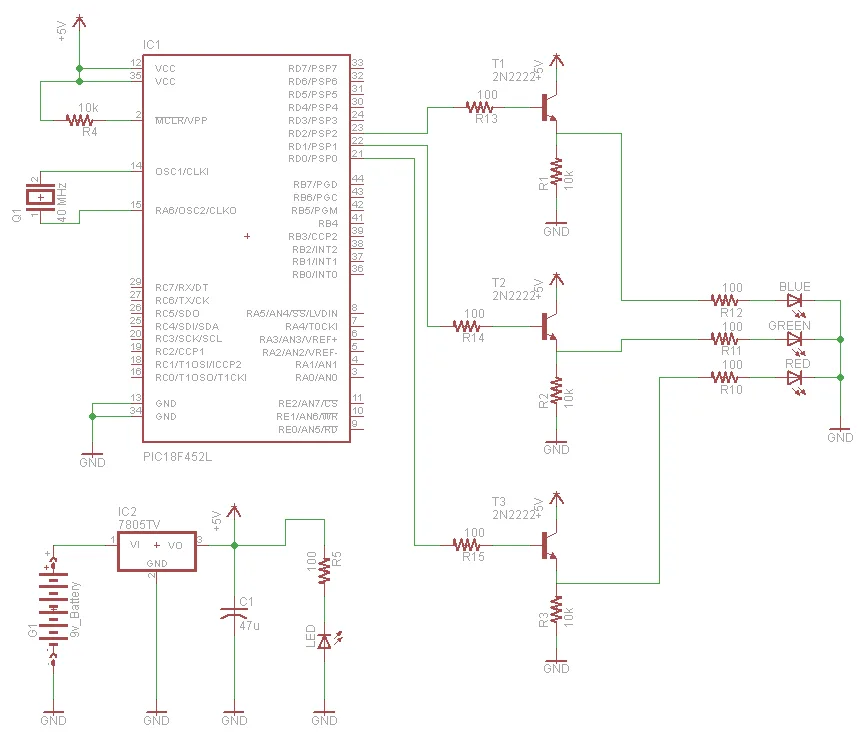

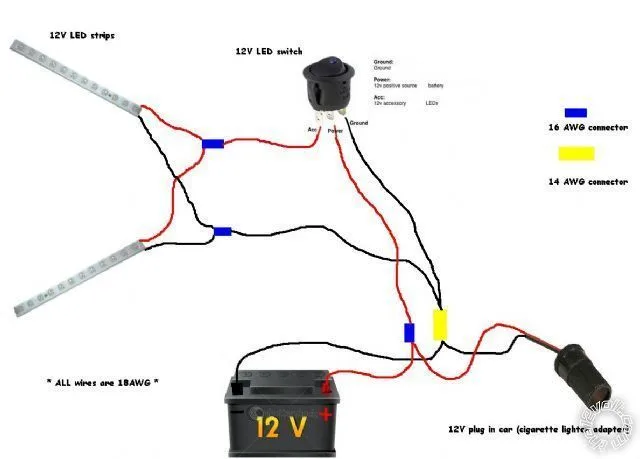

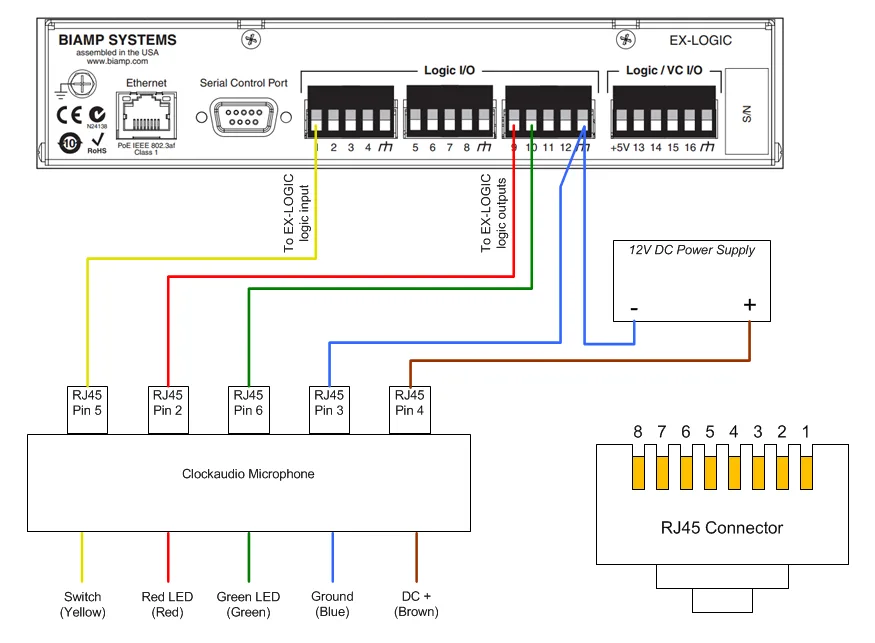

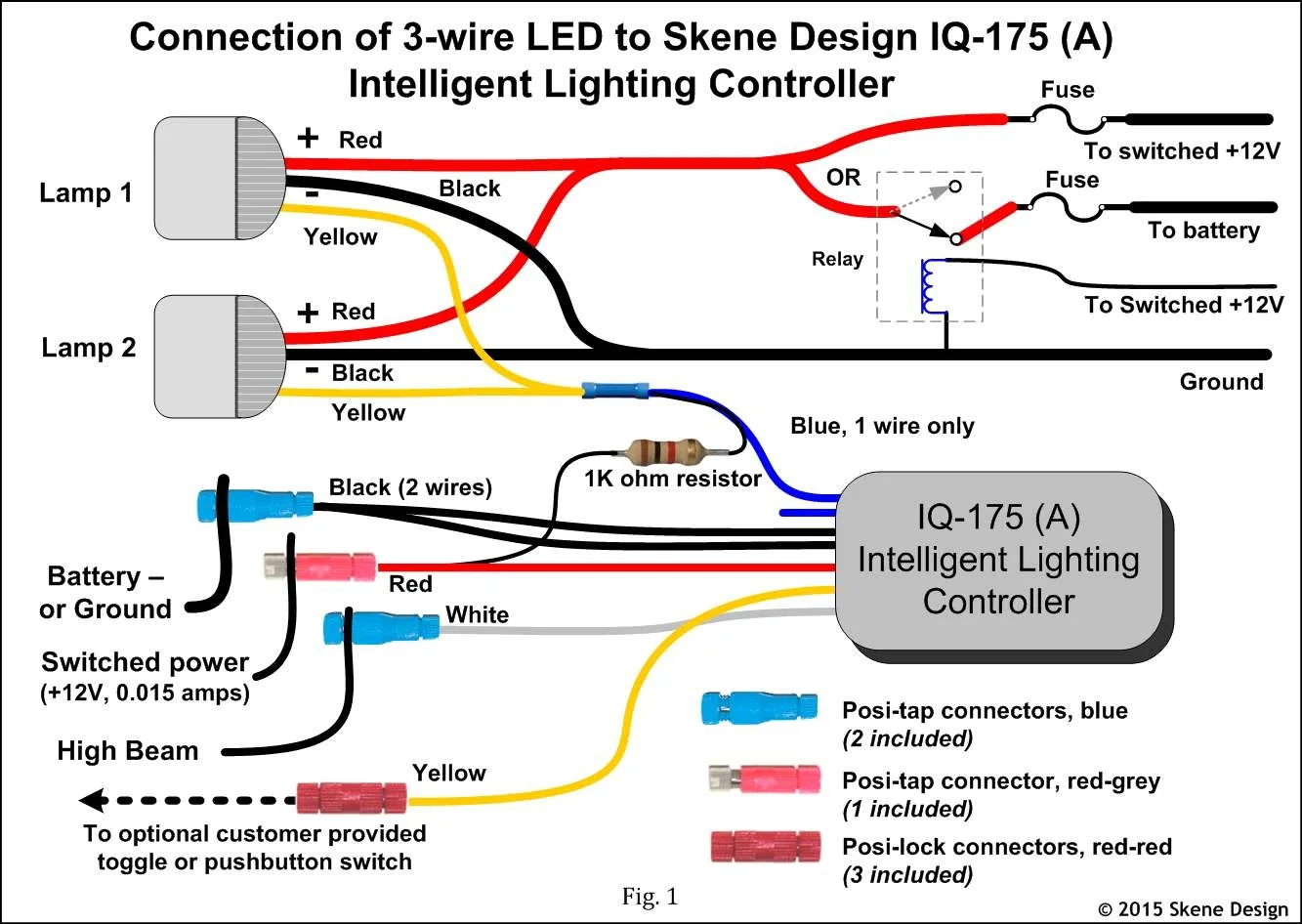

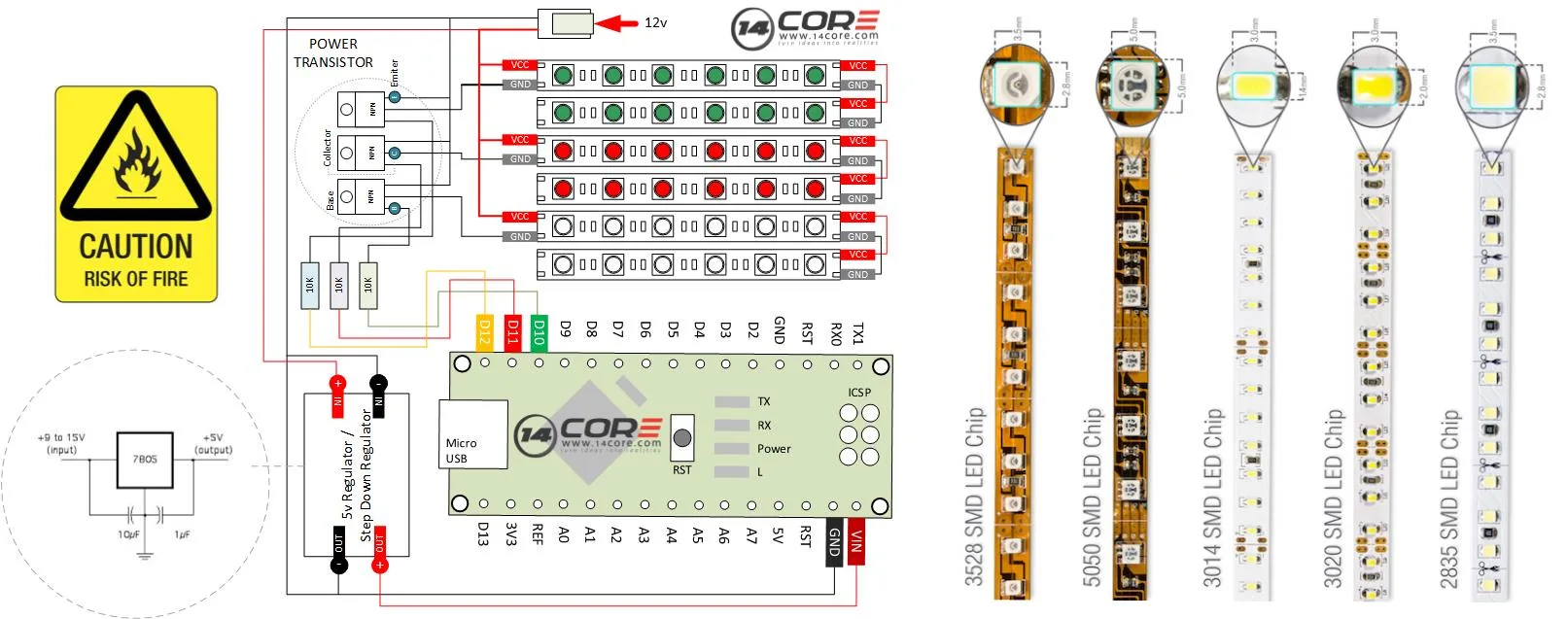

Below is a basic wiring diagram for 12V LED lights:
| Wire Color | Function |
| Red | Positive (+) |
| Black | Negative (-) |
Keep in mind this is just a starting point for wiring 12V LED lights. Wiring can be more complex depending on the number of LEDs and the type of LED lights you are using.
Step-by-Step Guide
Step 1: Determine Power Source
The first step is to determine the power source for your LED lights. Most commonly, people use a 12V car battery. If you are unsure about how to connect the LED lights to your specific power source, refer to the manufacturer’s instructions.
Step 2: Plan Your Wiring Route
Before you start wiring, plan your wiring route. Determine where your LED lights and switch will be located and where you want the wiring to run. This will help you determine how much wiring you need and where to connect your LED lights.
Step 3: Connect Positive Wires
First, connect the positive wires of your LED lights to the positive terminal of your power source. This is typically done by attaching one end of a wire to the positive terminal of the battery and the other end to the positive wire of the LED light. Be sure to use electrical tape to secure the connection.
Step 4: Connect Negative Wires
Next, connect the negative wires of your LED lights to the negative terminal of your power source. Again, this is typically done by attaching one end of a wire to the negative terminal of the battery and the other end to the negative wire of the LED light. Use electrical tape to secure the connection.
Step 5: Add a Fuse
It is important to add a fuse in line with the positive wire of your LED lights. This will protect your lights from overloading and potentially causing a fire. Connect the fuse holder to the positive wire and then connect the fuse to the holder. Be sure to choose the correct amperage for your LED lights.

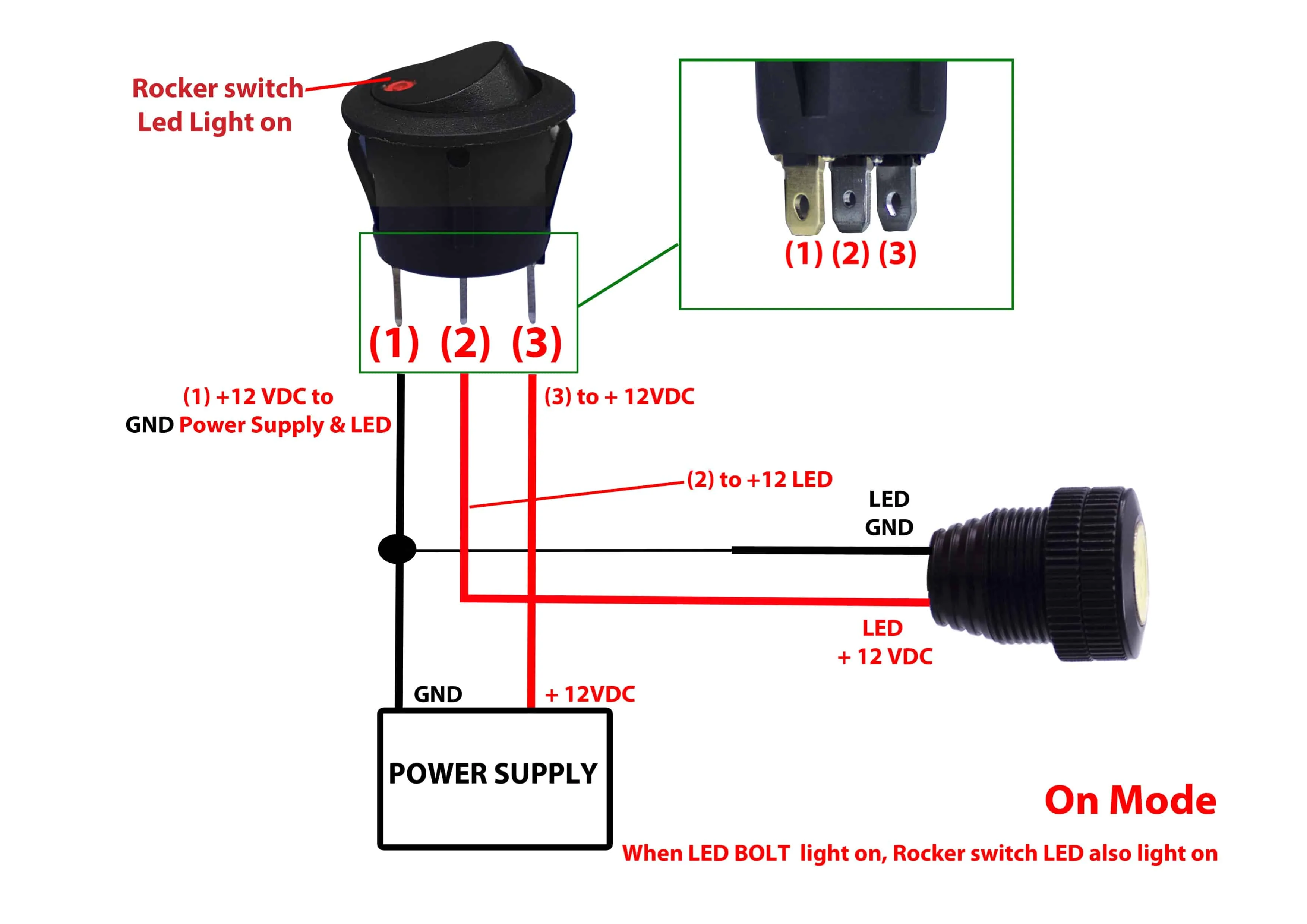

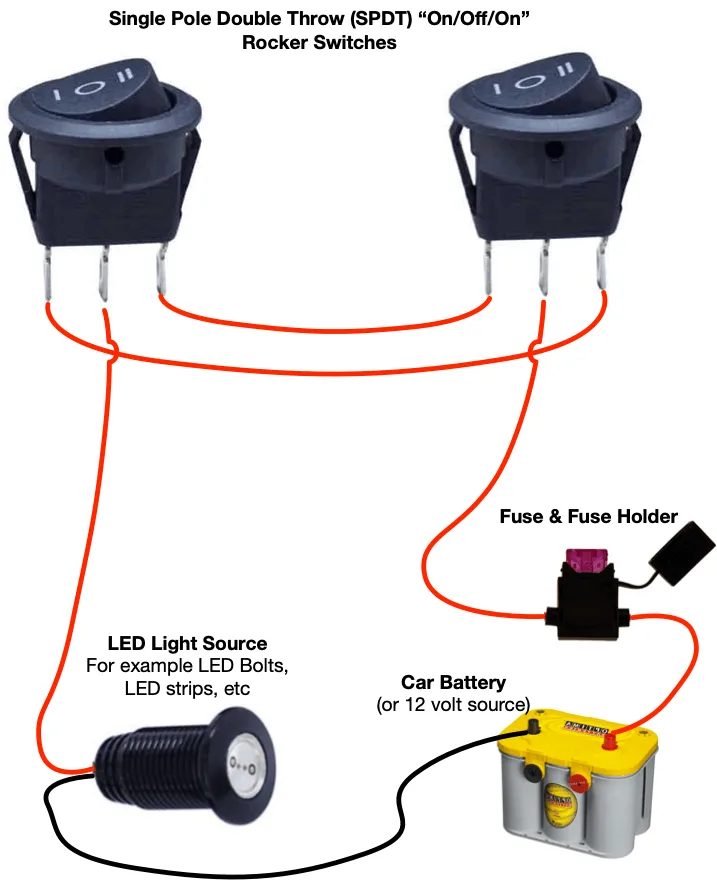

Step 6: Add a Switch (Optional)

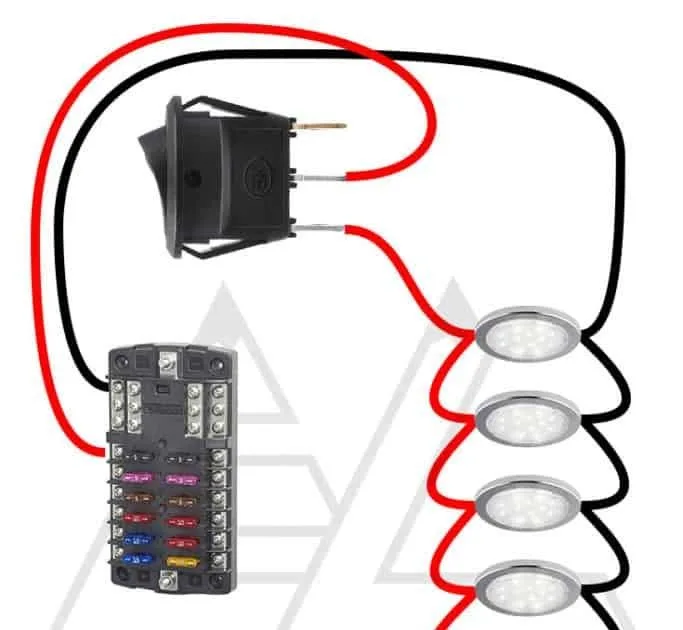

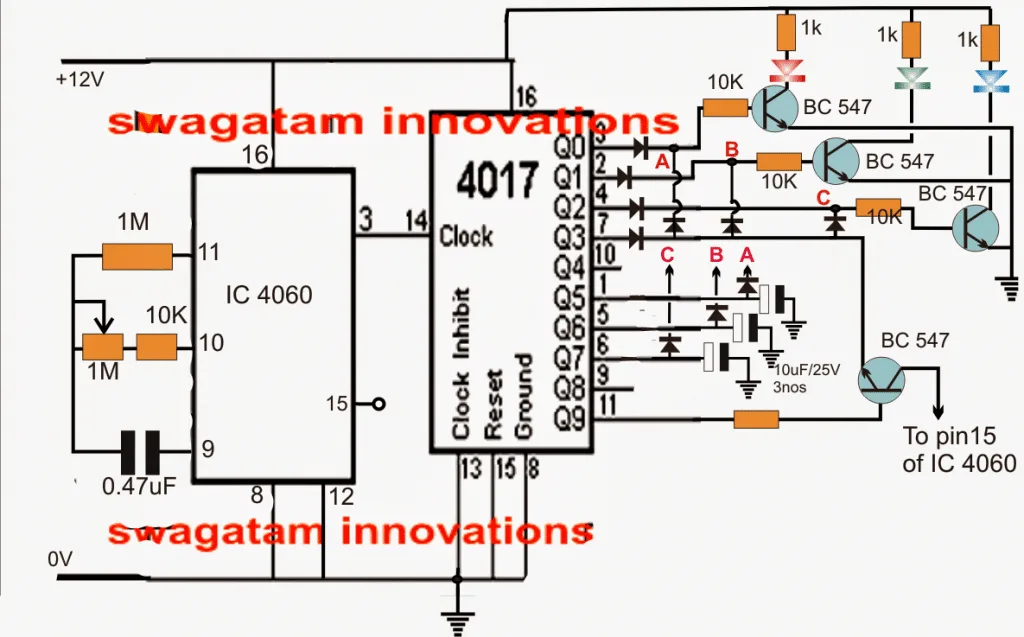

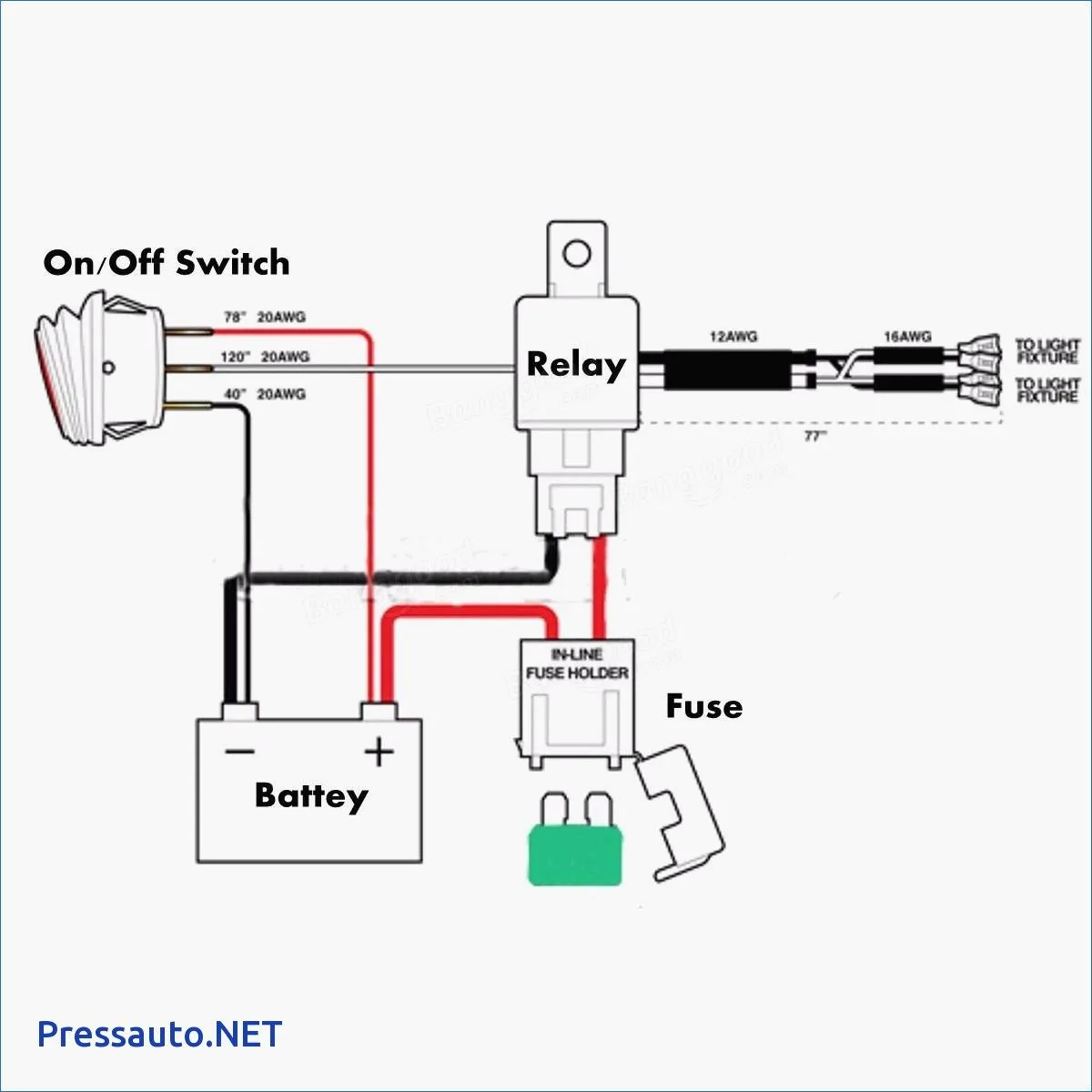

If you want to control your LED lights with a switch, you can add one in-line with the positive wire. Connect one end of the switch to the positive wire and the other end to the fuse holder. This will allow you to turn your LED lights on and off as needed.
FAQ
Q: Can I wire multiple LED lights together?

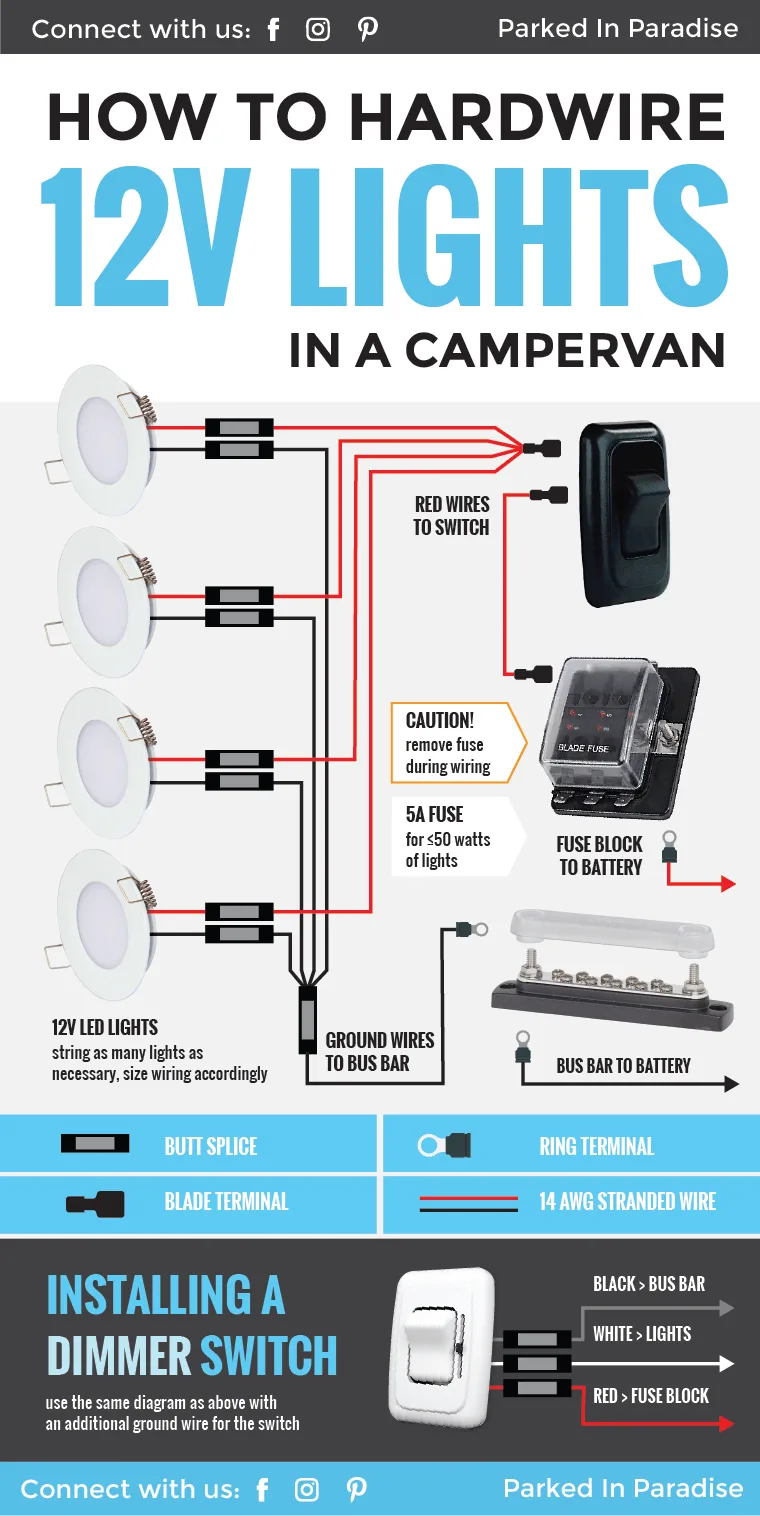

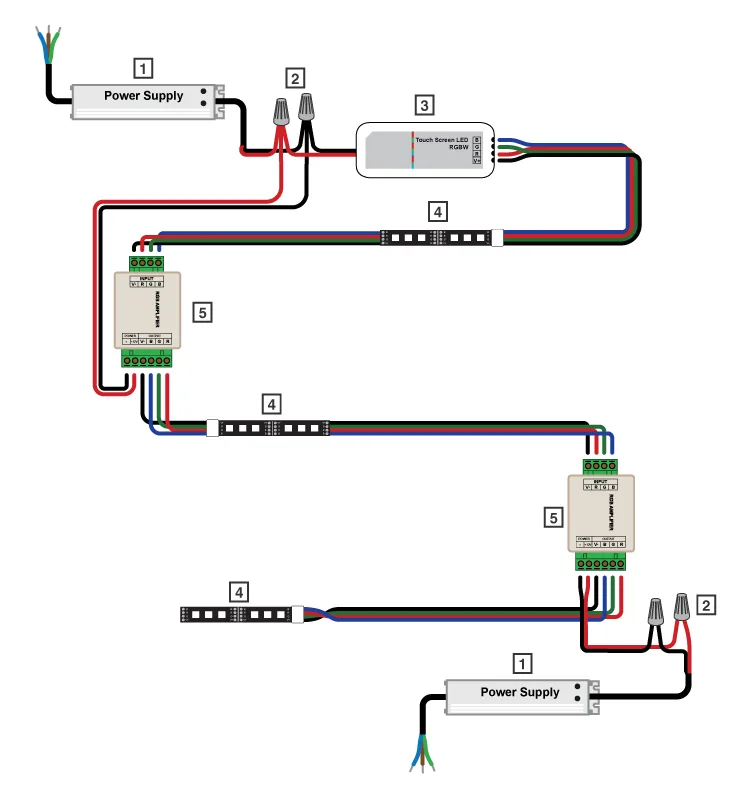

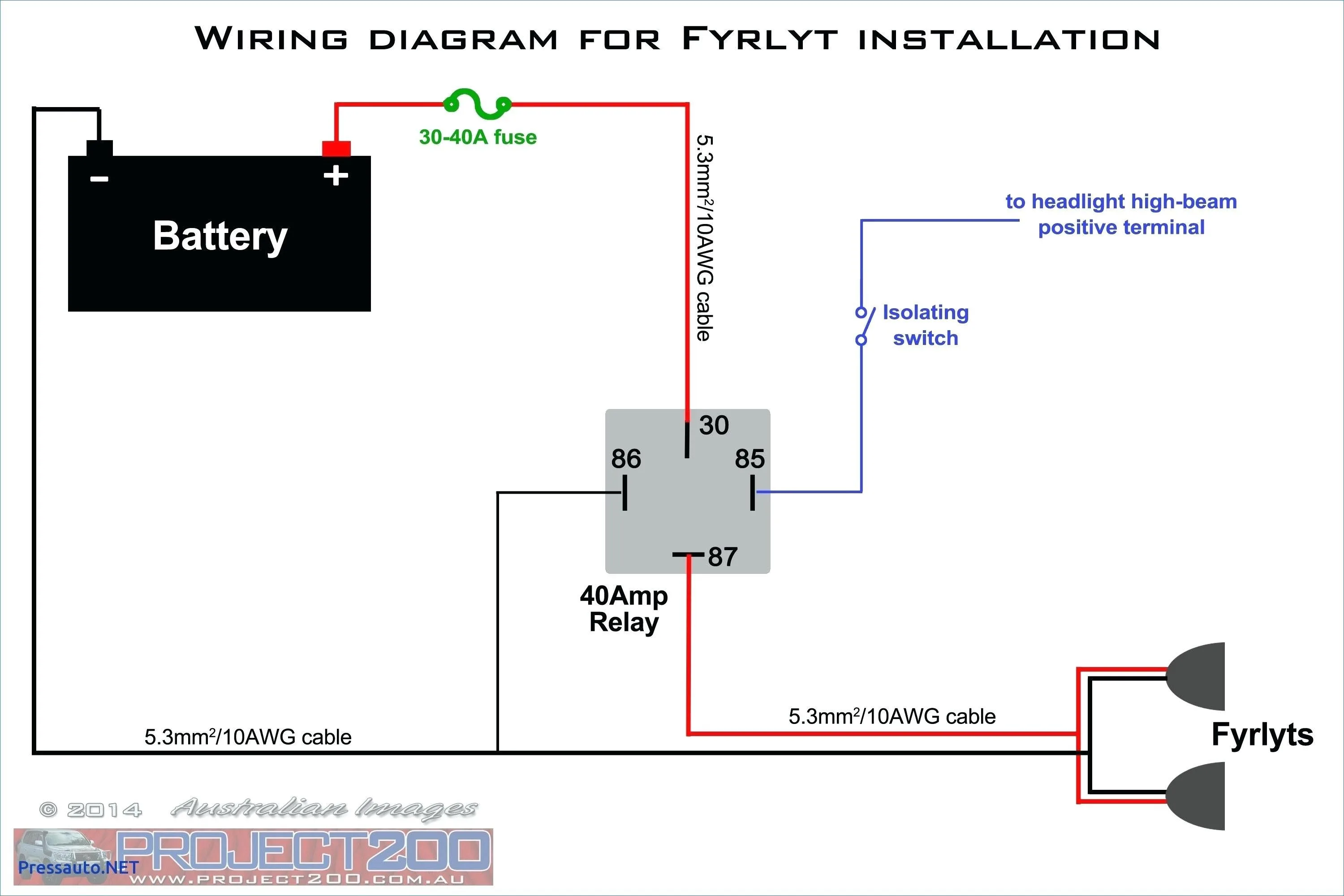

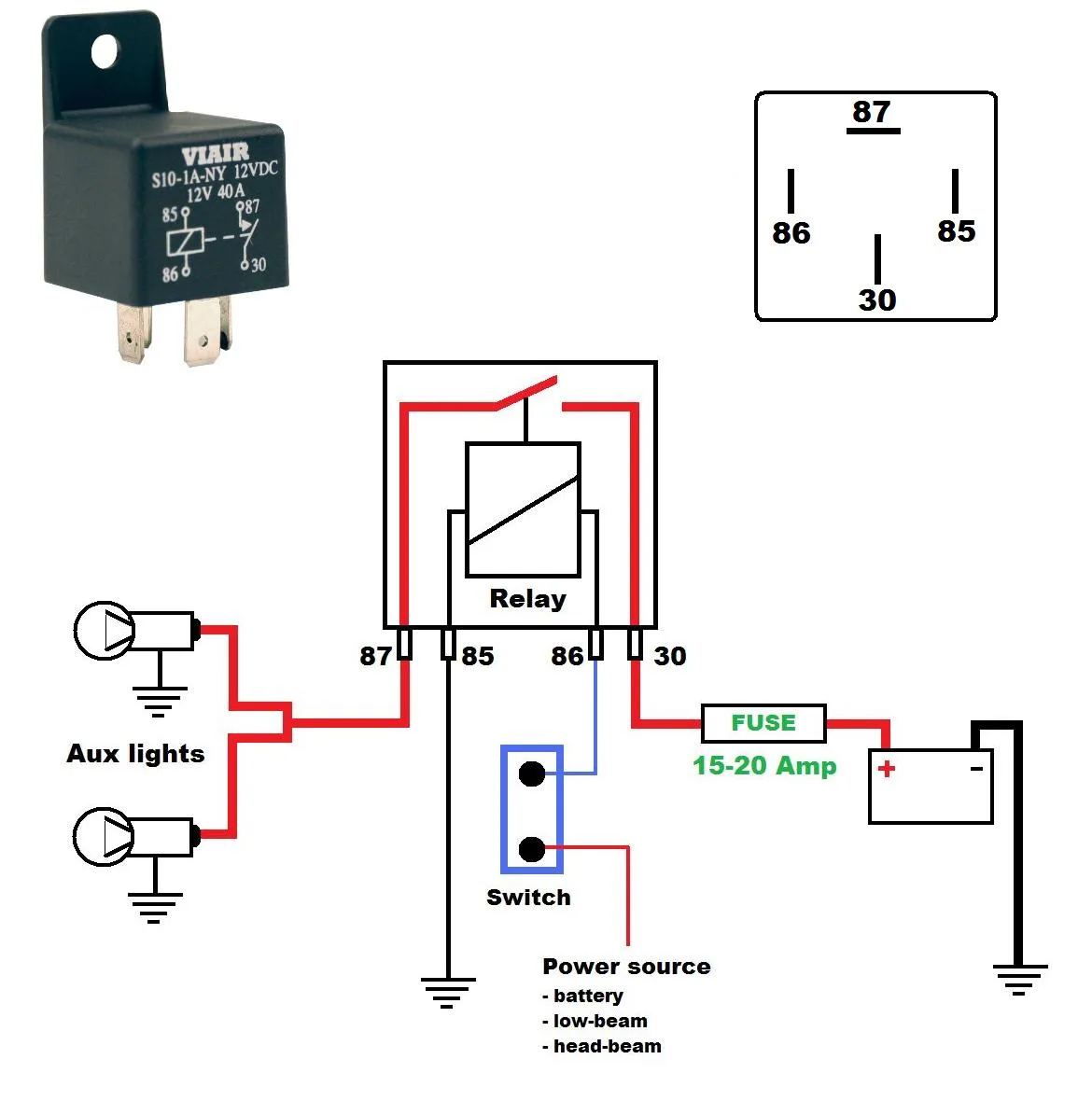

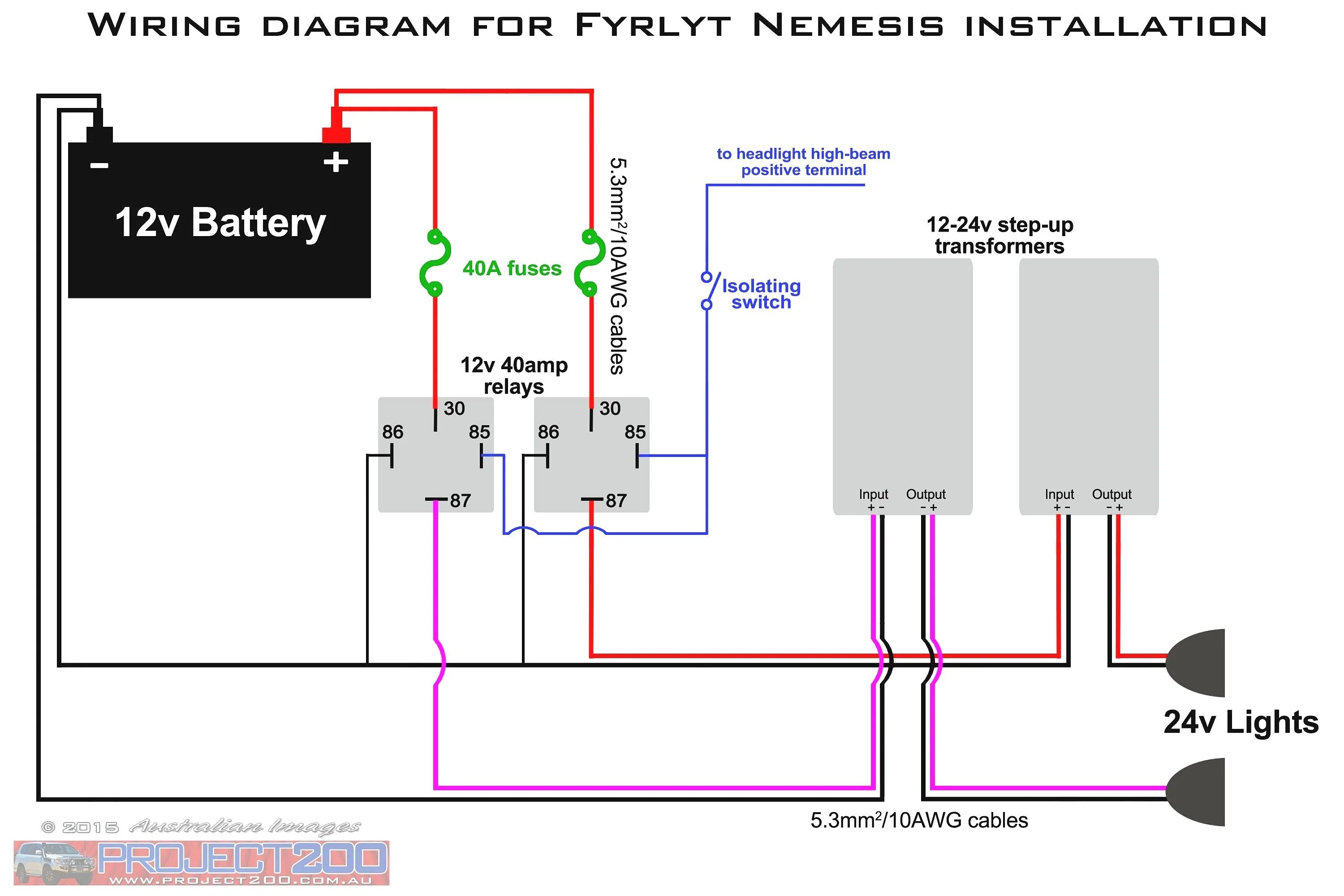

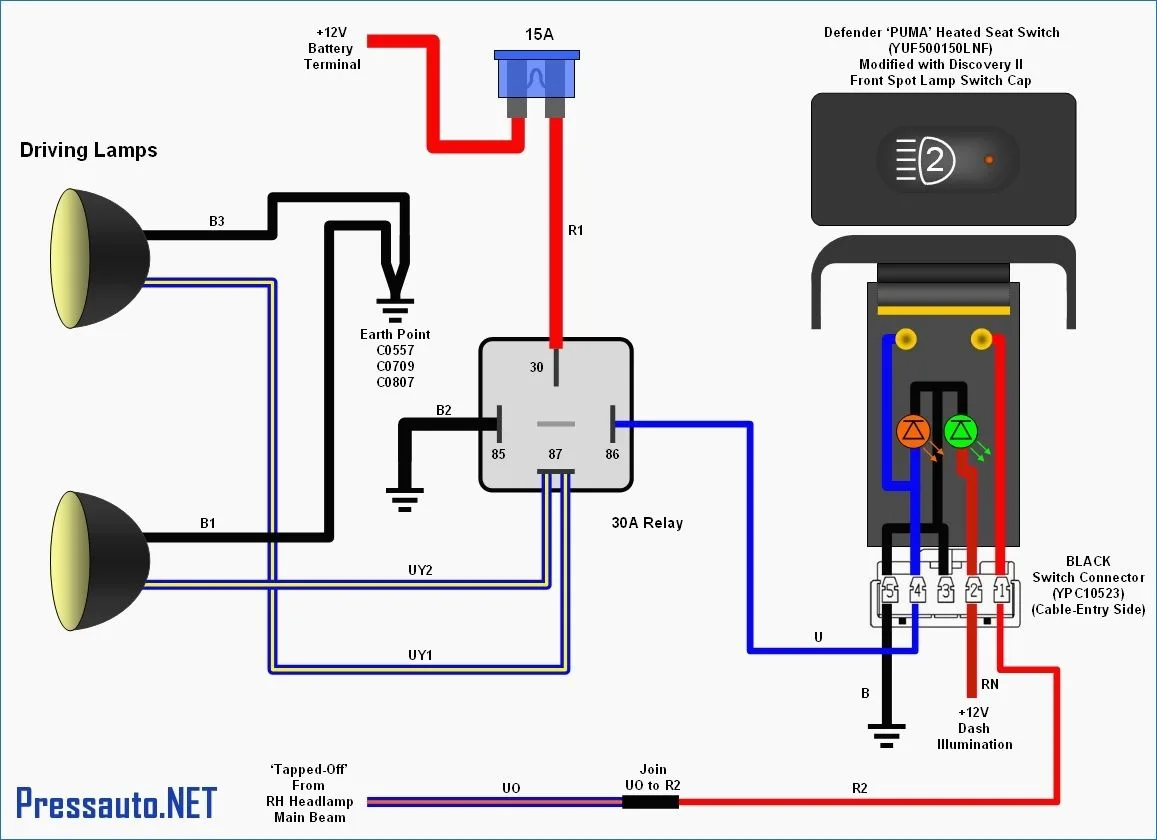

A: Yes, you can wire multiple LED lights together. However, you’ll need to make sure you don’t exceed the maximum amperage of your power source or the fuse. You can do this by adding a relay, which will allow you to control multiple LED lights without overloading your system.

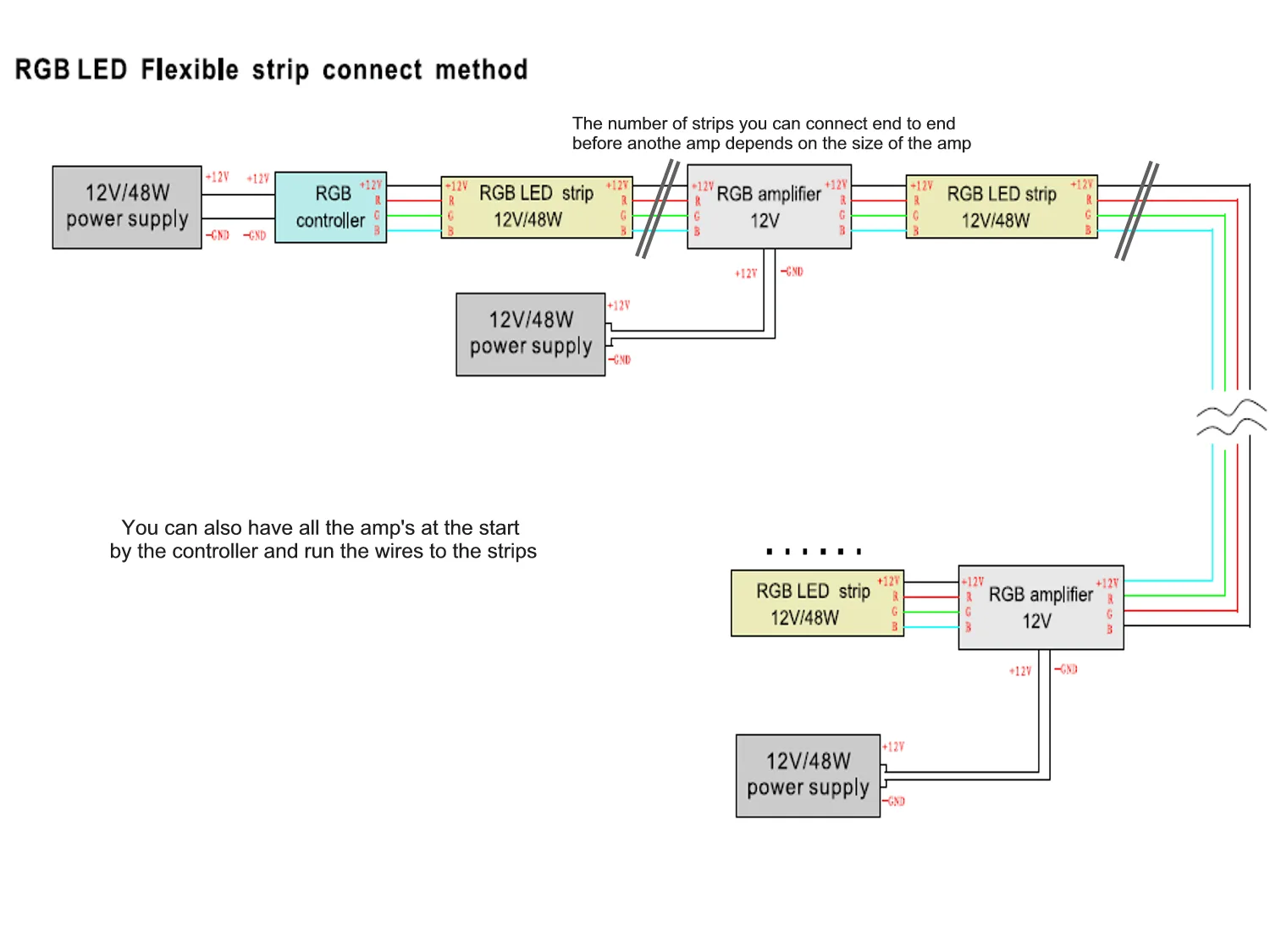

Q: Can I cut LED strips to fit my application?
A: Yes, most LED strips can be cut to fit your specific application. However, you’ll need to make sure you cut the strip in the correct place to avoid damaging the lights. Refer to the manufacturer’s instructions for specific cutting guidelines.
Q: How can I troubleshoot if my LED lights aren’t working?
A: If your LED lights aren’t working, there are several things you can check. First, make sure the wiring is correct and all connections are secure. Next, check the fuse and replace if necessary. If everything looks good, your LED lights may be faulty and you’ll need to replace them.

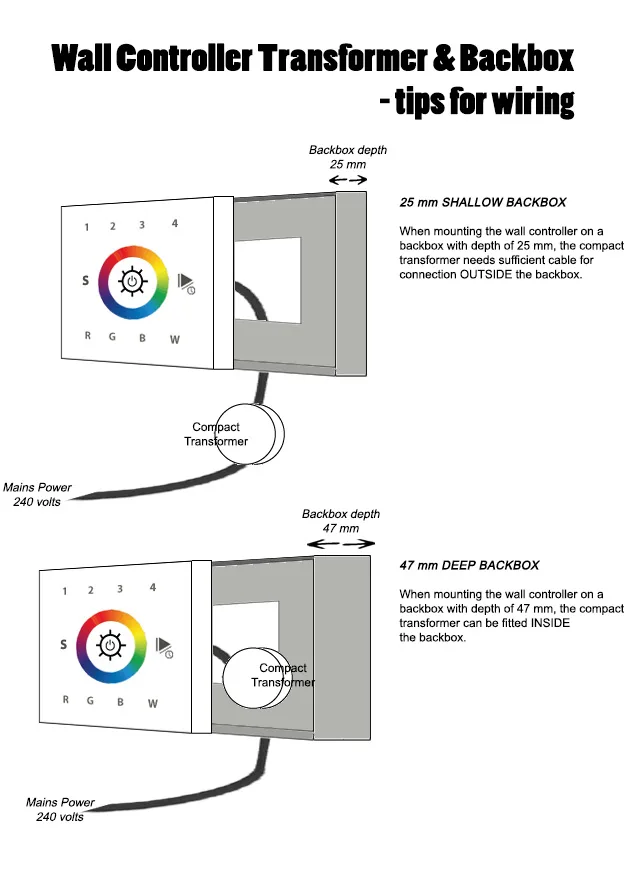

Q: Can I connect my LED lights to my home power source?
A: It is possible to connect your LED lights to your home power source. However, you’ll need to use a 12V power supply and make sure the wiring is correct. We recommend consulting a professional electrician if you’re unsure about home wiring.
Q: Can I dim my LED lights?
A: Yes, you can dim your LED lights using a dimmer switch. However, you’ll need to make sure your LED lights are compatible with a dimmer switch before attempting to use one.
Follow this guide to ensure safe and proper wiring of your 12V LED lights. Remember to always consult manufacturer instructions and seek professional help if needed.
