Fog lights are a crucial addition to any vehicle, especially for those who frequently drive in low-visibility conditions. Having LED fog lights offers numerous benefits, including better illumination, longer lifespan, and lower energy consumption. However, installing these lights can be daunting for those without technical experience. This article provides a step-by-step guide on how to wire 12v LED fog lights and answers frequently asked questions about the process.
Materials Needed
Before starting, gather the following materials:
| Materials | Quantity |
|---|---|
| 12v LED fog lights | 2 |
| Wiring harness with switch | 1 |
| Wire crimper | 1 |
| Electrical tape | 1 roll |
| Zip ties | 10 |
Note: It is important to choose high-quality materials to ensure the longevity and safety of the LED fog lights.
Step-by-Step Guide
Step 1: Mount the Fog Lights
First, mount the LED fog lights onto the desired location on the vehicle using the provided screws and brackets. Ensure that they are secure and positioned correctly before moving on to the next step.

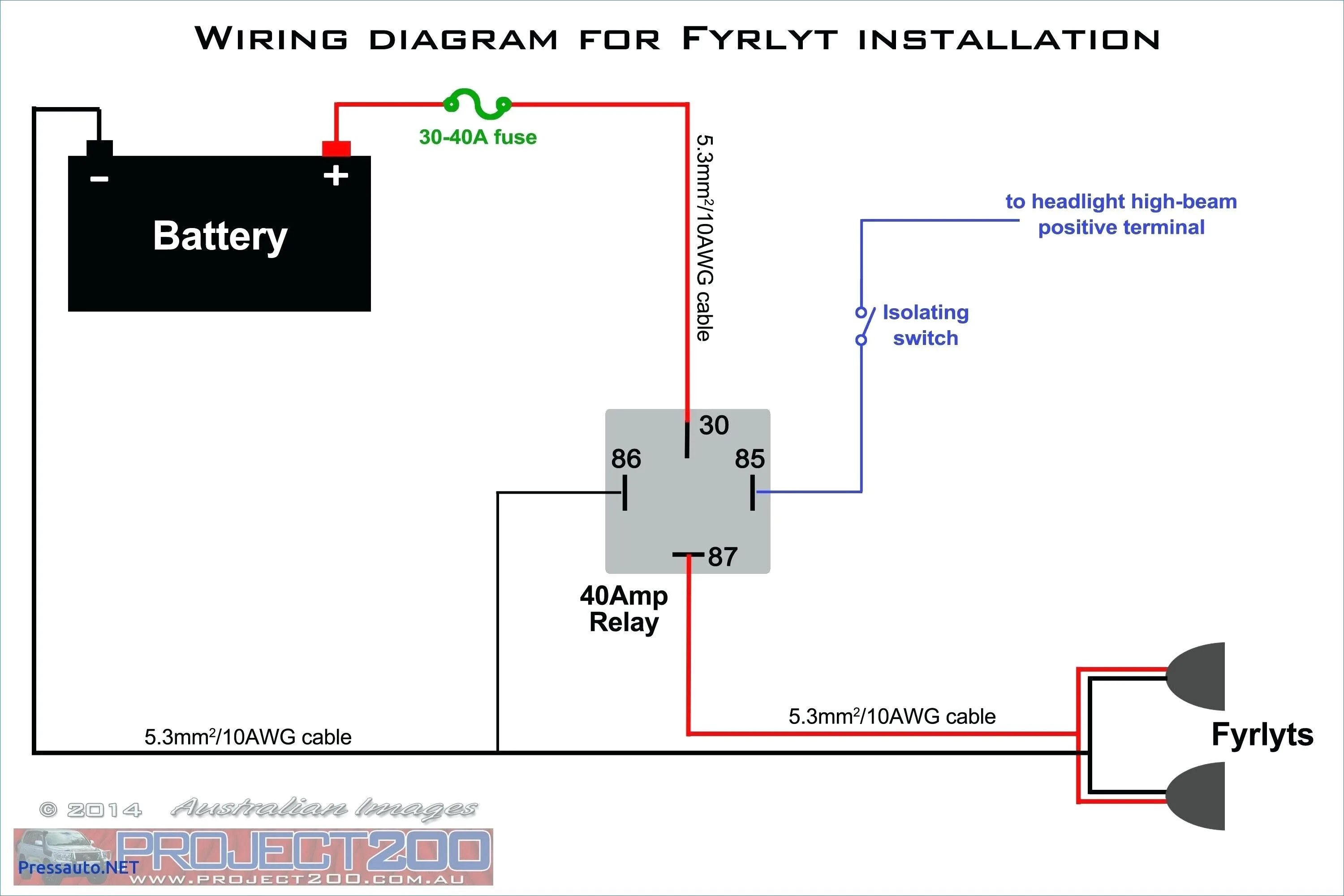

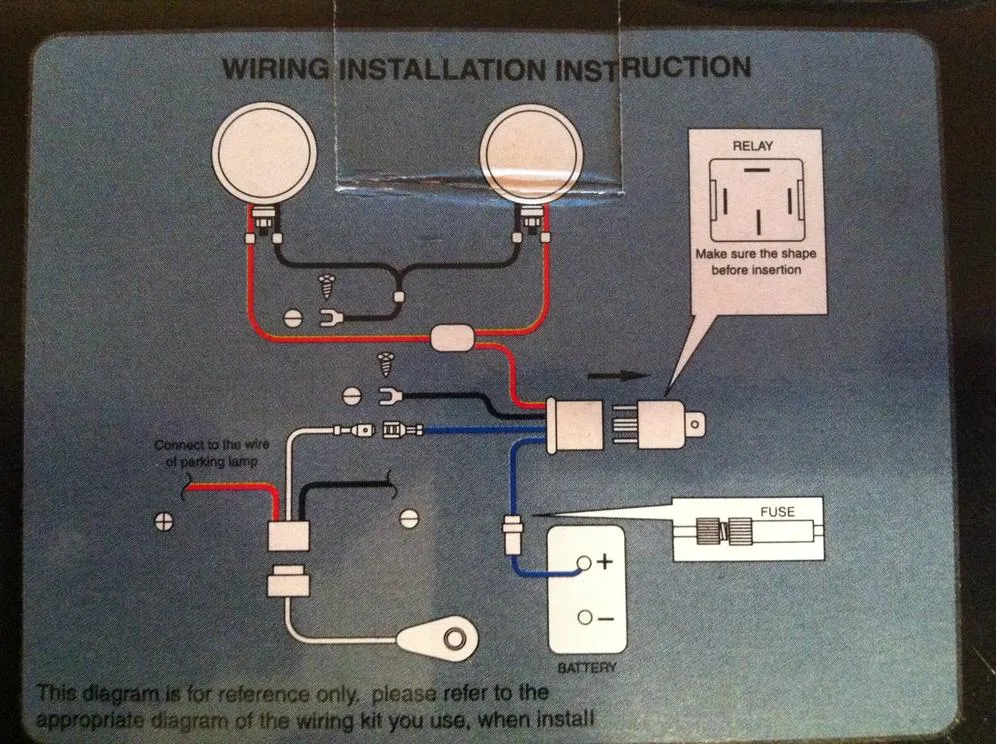

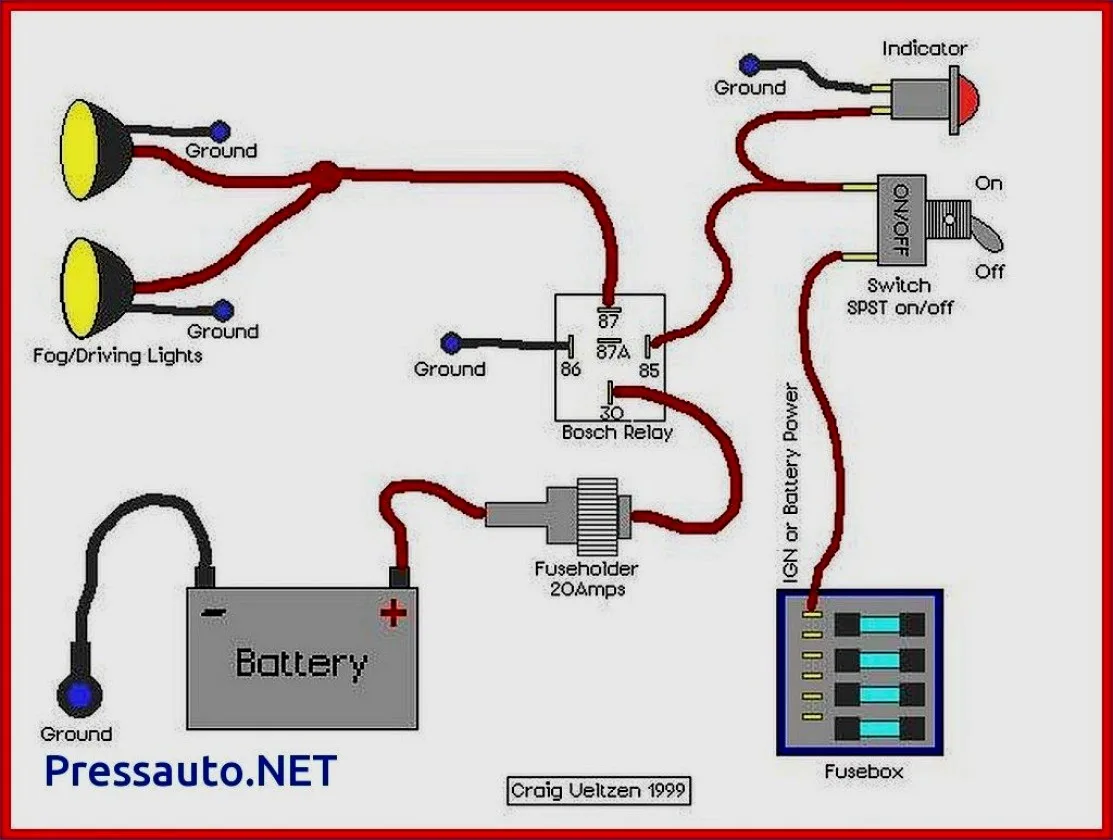

Step 2: Connect the Wiring Harness to the Battery
The wiring harness should come with two wires: red and black. Connect the red wire to the positive terminal of the battery, and the black wire to the negative terminal. Use a wire crimper to strip the ends of the wires and attach them securely to the battery terminals.
Step 3: Connect the Wiring Harness to the Fog Lights
Connect the wiring harness to the LED fog lights. Each fog light should have two wires: red and black. Connect the red wire from the wiring harness to the red wire on the fog light, and the black wire from the harness to the black wire on the fog light. Use a wire crimper to strip the ends of the wires and attach them securely.
Step 4: Install the Switch
Find a suitable location to install the switch, such as the dashboard. Drill a hole for the switch and insert it. Connect the wiring harness to the switch, ensuring that the red wire is connected to the power terminal and the black wire to the ground terminal. Test the switch to ensure that it is working correctly.
Step 5: Secure the Wires
Using zip ties, secure the wires from the fog lights and wiring harness to prevent them from rubbing against any sharp edges or hot surfaces. Ensure that the wires are neatly organized and do not obstruct any other parts of the vehicle.
FAQs
Q: What is the purpose of fog lights?
A: Fog lights are designed to cut through low-visibility conditions, such as fog, rain, or snow. They emit a wide beam of light that illuminates the road ahead and enhances visibility for the driver.
Q: Can I install LED fog lights without a wiring harness?
A: It is not recommended to install LED fog lights without a wiring harness, as it can lead to safety issues and damage to the vehicle. The wiring harness ensures that the correct amount of power is supplied to the fog lights and protects the electrical system from overload.
Q: How do I know if my LED fog lights are wired correctly?
A: After completing the wiring process, test the fog lights to ensure that they turn on and off correctly using the switch. If the fog lights do not turn on, check the connections and ensure that the wiring is correctly installed.
Q: Can I install LED fog lights myself or should I seek professional help?
A: Installing LED fog lights requires technical knowledge and experience, and if not done correctly, it can lead to safety hazards and damage to the vehicle. It is recommended to seek professional help if you are not confident in your ability to install the fog lights.
Q: Can I use an existing switch for my LED fog lights?
A: It is possible to use an existing switch for your LED fog lights, but it is important to ensure that the switch can handle the additional power load. It is recommended to use a switch that is compatible with LED fog lights and the wiring harness.
With this step-by-step guide, you can now easily wire 12v LED fog lights onto your vehicle. By following the instructions and using the right materials, you can enhance your driving experience and stay safe in low-visibility conditions.
