Wiring diagrams are essential in many electrical installations, including when converting a single-phase power supply from 120 volts to 230 volts. In this article, we will provide a step-by-step guide on how to complete this process successfully, as well as some FAQ and tables to help you understand the process better.
Section 1: Understanding Single-Phase Power
Before we begin, it is essential to understand what single-phase power is and how it works. Single-phase power refers to a two-wire alternating current (AC) electrical power supply that uses one phase of a multi-phase power supply. In North America, the standard single-phase voltage is 120 volts, while in other parts of the world, it is typically 230 volts.
A single-phase power supply is used in many residential homes and small businesses because it is simple and cost-effective. However, if you need to power equipment that requires 230 volts, you will need to convert your single-phase power supply from 120 volts to 230 volts.
Subsection 1:1: Understanding the Need for Conversion
Converting your single-phase power supply from 120 volts to 230 volts is necessary if you want to power equipment that requires this higher voltage. Some examples of equipment that may require 230 volts include air compressors, welders, and other heavy-duty machinery.
Converting your power supply from 120 volts to 230 volts will require you to rewire your electrical system. This process can be complex, but with the right information and tools, it is possible for you to do it successfully.
Subsection 1:2: Understanding the Different Types of Single-Phase Power
There are two types of single-phase power: split-phase and capacitor start. Split-phase power is the most common type of single-phase power supply in North America, and it uses a transformer to split the power into two separate phases. This type of power supply is used for most residential and small business applications.

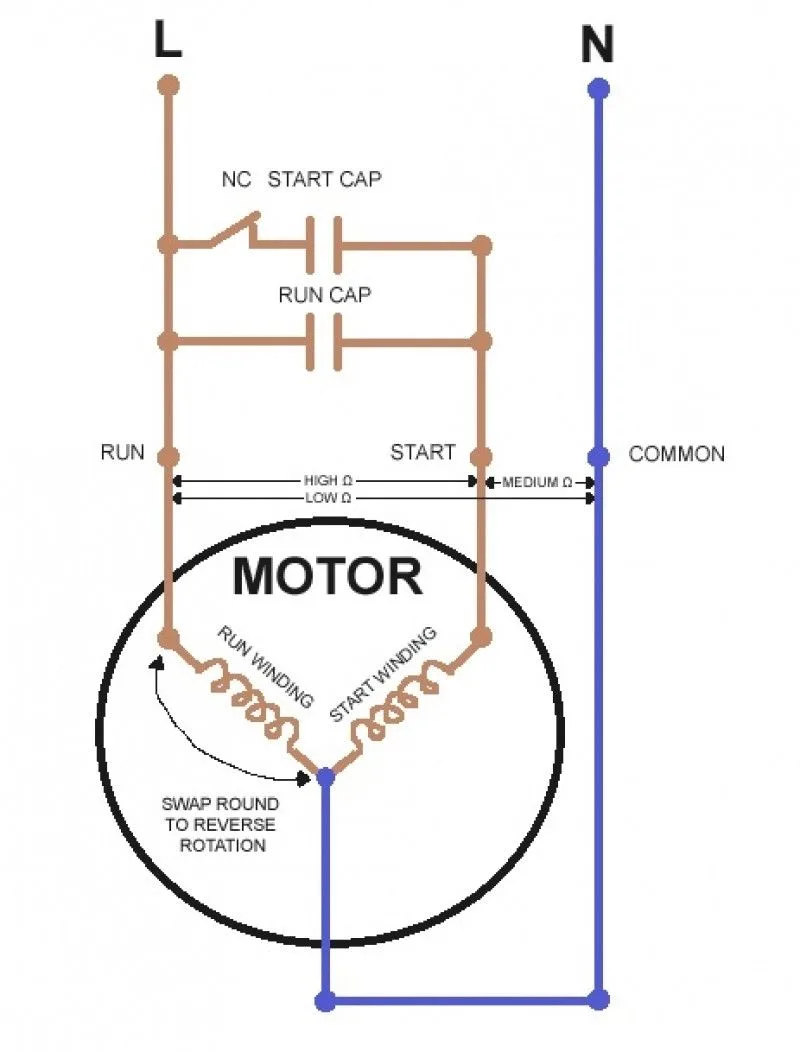

Capacitor start single-phase power is used for equipment that requires more starting torque than split-phase power can provide. This type of power supply uses a capacitor to create a phase shift in the electrical current, which provides additional starting torque. Capacitor start single-phase power is commonly used for equipment such as air compressors and other heavy machinery.
Section 2: How to Convert from 120V to 230V
Converting your single-phase power supply from 120 volts to 230 volts requires a few steps. Below is a step-by-step guide on how to complete this process successfully:
Subsection 2:1: Materials Needed
Before you begin the conversion process, you will need to gather the following materials:
| Item | Quantity |
|---|---|
| Step-up transformer | 1 |
| New circuit breaker | 1 |
| New wiring | As needed |
| New outlet | 1 |
| Wire stripper | 1 |
| Wire nuts | As needed |
| Electrical tape | As needed |
| Wire connectors | As needed |
Subsection 2:2: Step-by-Step Conversion Process
Once you have gathered all the necessary materials, you can begin the conversion process. Below are the steps to follow:
- Shut off power to the electrical system.
- Install the new circuit breaker and wiring for the 230-volt outlet.
- Install the step-up transformer, making sure to follow the manufacturer’s instructions.
- Connect the step-up transformer to the electrical system, following the manufacturer’s instructions.
- Connect the new 230-volt outlet to the step-up transformer.
- Turn on the power to the electrical system and test the new outlet.
It is crucial to follow each step in the process carefully to ensure that your conversion is successful. If you are unsure about any step, consult with a qualified electrician to help you complete the process safely.
Section 3: FAQ

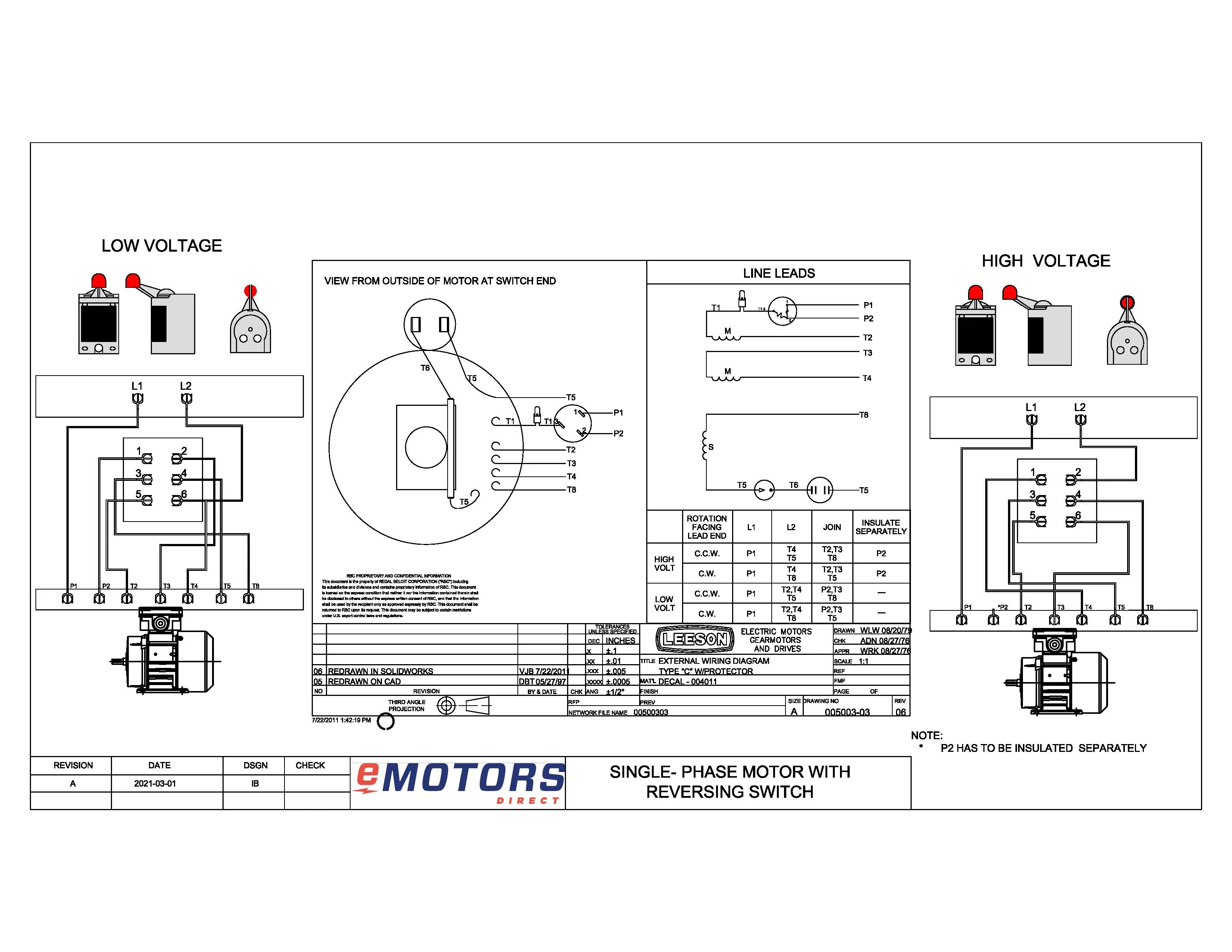

Subsection 3:1: Can I Convert a 120-Volt Motor to 230 Volt?
Yes, it is possible to convert a 120-volt motor to 230 volts. However, the process can be complex, and it is recommended that you seek the assistance of a qualified electrician to ensure that the conversion is completed safely and correctly.
Subsection 3:2: Can I Use a Step-Down Transformer Instead of a Step-Up Transformer?
No, you cannot use a step-down transformer to convert your single-phase power supply from 120 volts to 230 volts. A step-down transformer is designed to decrease the voltage, while a step-up transformer is designed to increase the voltage.
Subsection 3:3: Can I Use a Different Voltage in My Single-Phase Power Supply?
In North America, the standard single-phase voltage is 120 volts. In other parts of the world, it is typically 230 volts. If you need to use a different voltage, you will need to consult with a qualified electrician to ensure that your electrical system can handle the new voltage and that the conversion is completed safely and correctly.
Conclusion
Converting your single-phase power supply from 120 volts to 230 volts can be a challenging process, but with the right tools, materials, and information, it is possible to complete the conversion successfully. Remember to follow each step in the process carefully, and if you are unsure about any step, consult with a qualified electrician to help you complete the conversion safely.
