Electricity is an essential part of our daily lives. It powers up the gadgets and appliances we use, making our work and lives easier. However, electrical circuits can be dangerous and cause severe accidents if not handled with caution. Understanding the 110v plug diagram is crucial to safely handle electrical appliances and circuits. In this article, we will discuss everything you need to know about the 110v plug diagram in relaxed English language, including tables and FAQs.
What is a 110v Plug?

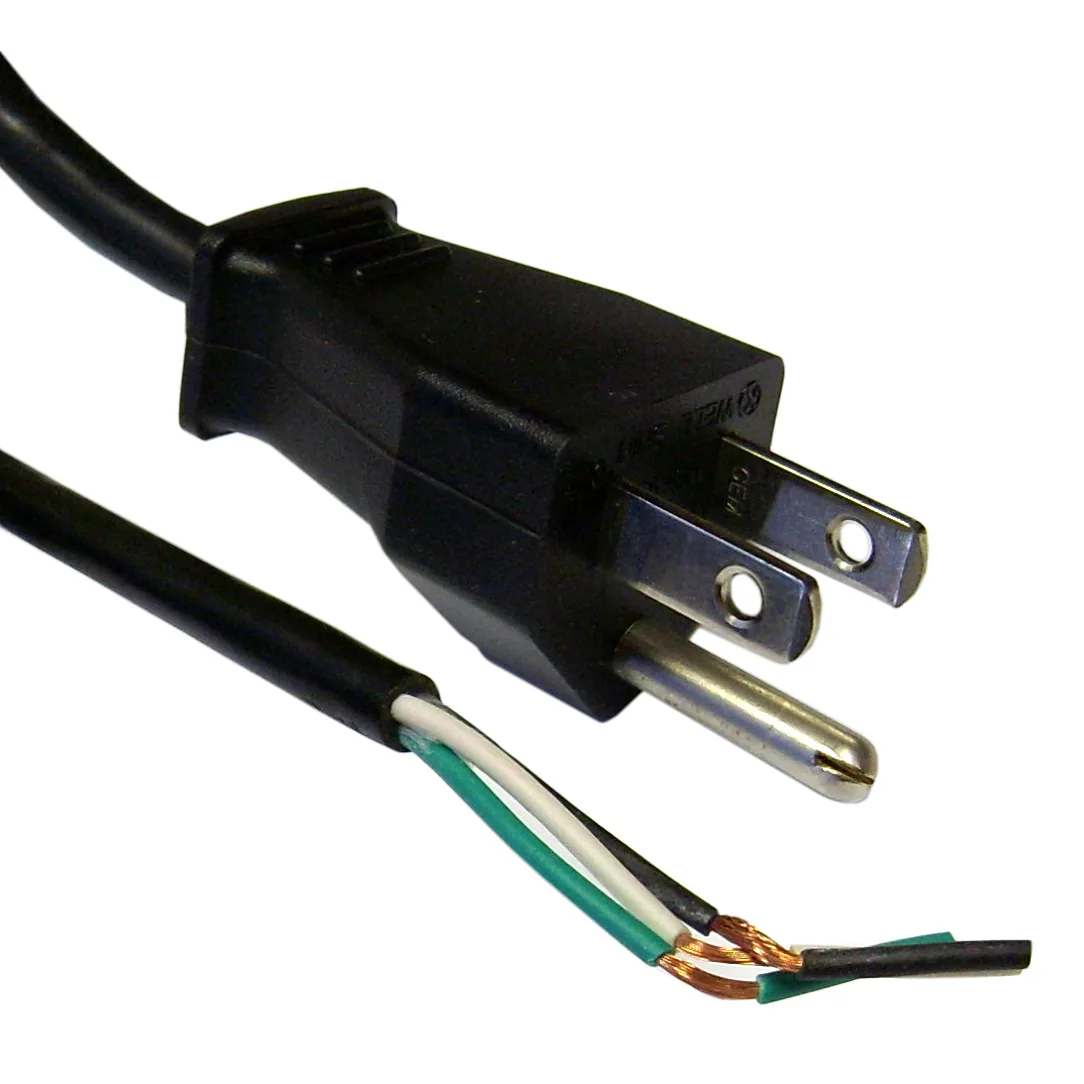

A 110v plug, also known as a three-prong plug or grounded plug, is a type of electrical plug with three pins designed to carry a current of 110 volts. It is commonly used in North America, and also in some parts of Central and South America, Asia, and Africa. A 110v plug has two flat blades and a round or U-shaped grounding pin. The grounding pin is longer than the blades and is designed to connect to the ground wire in an electrical circuit.
How Does a 110v Plug Work?
A 110v plug works by connecting to an electrical socket or outlet. The two flat blades of the plug fit into the two slots of the socket, while the grounding pin connects to the third slot, which is the ground wire. The ground wire is connected to the earth or a grounding system, which provides protection against electrical shock and fire hazards. When an electrical appliance is connected to a 110v plug and turned on, it draws 110 volts of electrical current from the circuit to run the device.
What are the Types of 110v Plugs?
There are many types of 110v plugs, each with a different configuration of pins and shapes. The most common types of 110v plugs are:
| Type | Configuration | Usage |
|---|---|---|
| NEMA 1-15 | Two flat blades | Small appliances, lamps, and electronics |
| NEMA 5-15 | Two flat blades and a grounding pin | Most household appliances and electronics |
| NEMA 5-20 | Two flat blades and a T-shaped grounding pin | Large appliances and industrial equipment |
110v Plug Diagram Explained
A 110v plug diagram is a graphical representation of the internal wiring and connections of a 110v plug. It shows how the blades and the grounding pin are connected to the wires and the circuit components inside the plug. Understanding the 110v plug diagram is essential to safely connect and disconnect electrical devices to the plug and to diagnose and fix any faults or issues with the plug or the device.
Parts of a 110v Plug
Before we dive into the 110v plug diagram, let’s understand the different parts of a typical 110v plug:
- Blades – Two flat metal pins that fit into the slots of an electrical socket.
- Grounding Pin – A round or U-shaped metal pin that connects to the grounding wire in the circuit.
- Wires – Electrical wires that connect the blades and the grounding pin to the internal components of the plug and the device.
- Prongs – Metal pins or clips that hold the internal components of the plug together.
- Screws – Small screws that secure the wires to the internal components of the plug.
How to Read a 110v Plug Diagram?
A 110v plug diagram typically shows the following components:
- Blades – Marked as L and N, representing the Live and Neutral wires.
- Grounding Pin – Marked as G or E, representing the Ground wire.
- Wires – Shown by color-coded lines or wires, representing the electrical connections between the components.
- Internal Components – Shown as symbols or shapes, representing the different electrical components inside the plug.
The 110v plug diagram also shows the orientation and alignment of the blades and the grounding pin, which is essential to ensure a safe and secure connection to the electrical socket. It is important to follow the correct orientation and alignment while connecting or disconnecting a 110v plug to avoid any electrical hazards or damage to the device or the circuit.
FAQs
1. Can I Use a 110v Plug in a 220v Socket?
No, you cannot use a 110v plug in a 220v socket. A 110v plug is designed to carry a current of 110 volts, while a 220v socket carries a current of 220 volts. Using a 110v plug in a 220v socket can cause an electrical fire or damage the device.
2. Can I Convert a 110v Plug to a 220v Plug?
No, you cannot convert a 110v plug to a 220v plug. The wiring and components of a 110v plug are not designed to handle the high current and voltage of a 220v circuit. Using a converted 110v plug in a 220v circuit can cause an electrical overload, resulting in an electrical fire or damage to the device.
3. Can I Use a 110v Plug for High-Power Appliances?
No, you should not use a 110v plug for high-power appliances such as air conditioners, heaters, and refrigerators. These appliances require a high current and voltage, which a 110v plug cannot provide. Using a 110v plug for high-power appliances can cause an electrical overload, resulting in an electrical fire, damage to the device, or even injuries.
4. How Do I Choose the Right Type of 110v Plug for My Device?
You should choose the right type of 110v plug for your device based on the voltage and current requirements of the device. Check the device’s manual or the label on the device to find the voltage and current rating. Choose a 110v plug that matches the device’s rating and has the right configuration of blades and grounding pin for the electrical socket. If you are not sure about the right type of 110v plug for your device, consult a qualified electrician or contact the manufacturer for advice.
5. How Do I Safely Connect and Disconnect a 110v Plug?
To safely connect and disconnect a 110v plug, follow these steps:
- Before connecting or disconnecting the plug, turn off the device and unplug it from the electrical socket.
- Hold the plug by the insulated part and avoid touching the blades or the grounding pin.
- Align and insert the blades into the slots of the socket and push the plug in firmly until it clicks into place.
- To remove the plug, hold the insulated part and pull it straight out of the socket. Do not pull the wires or yank the plug.
- Inspect the plug and the wires for any damage or signs of wear and tear. Replace any damaged components before using the plug again.
Conclusion
Understanding the 110v plug diagram is essential to safely handle electrical appliances and circuits. In this article, we discussed everything you need to know about the 110v plug diagram in relaxed English language, including types, parts, and FAQs. Always follow the manufacturer’s instructions and consult a qualified electrician whenever you have doubts or questions about the 110v plug or any other electrical components.
