If you’re looking to install or repair a 110v outlet, having a solid understanding of its diagram is crucial. A 110v outlet is commonly used in the United States and Canada to provide electricity to various household appliances and devices. In this article, we’ll take a more in-depth look at the 110v outlet diagram and the different types of outlets available. We’ll also answer some frequently asked questions to help you better understand your outlet needs.
What is a 110v Outlet?
A 110v outlet, also known as a standard household outlet or a Type A outlet, delivers electricity at 110 volts. It’s commonly used to power small electrical appliances such as lamps, radios, and televisions. The 110v outlet consists of two slots and a grounding hole, which is a small semicircle often located below the two slots.
The two slots on a 110v outlet consist of a wider slot and a narrower slot. The wider slot, which is on the left side, is known as the neutral slot. It’s connected to the neutral wire of your home’s electrical system. The narrower slot, which is on the right side, is known as the hot slot. It’s connected to the hot wire of your home’s electrical system. The grounding hole is connected to the grounding wire of your home’s electrical system.
The Different Types of 110v Outlets
There are several types of 110v outlets available, and each type serves a specific purpose. Some of the commonly used ones include:
| Type of Outlet | Description |
|---|---|
| Standard household outlet | Provides power to small electrical appliances |
| GFCI outlet | Provides protection against electrical shock in damp areas such as bathrooms and kitchens |
| AFCI outlet | Provides protection against electrical fires caused by arcing faults |
You may also come across outlets with different amperage ratings. An amperage rating refers to the amount of electrical current that can safely flow through the outlet. Common amperage ratings for 110v outlets include 15 amps and 20 amps.

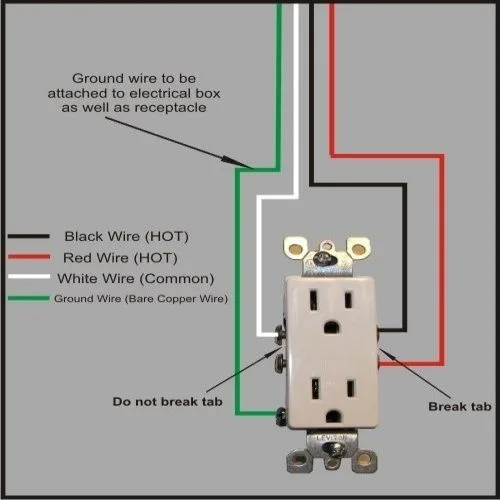

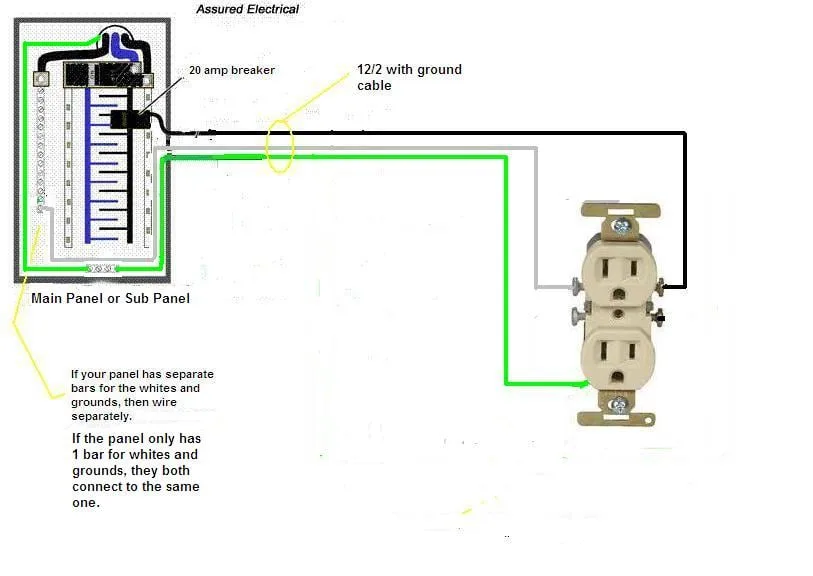

How to Wire a 110v Outlet
Wiring a 110v outlet may seem like a daunting task, but it’s not as complicated as it may seem. Here’s a step-by-step guide to help you wire your outlet:
- Turn off power to the outlet by flipping the appropriate circuit breaker.
- Remove the outlet cover and unscrew the old outlet from the electrical box.
- Attach the ground wire to the grounding hole on the new outlet.
- Attach the white neutral wire to the neutral slot on the new outlet.
- Attach the black hot wire to the hot slot on the new outlet.
- Screw the new outlet into the electrical box and replace the outlet cover.
- Turn on power to the outlet by flipping the circuit breaker back on.
FAQs
Q: What is the difference between a 110v outlet and a 220v outlet?
A: A 110v outlet delivers electricity at 110 volts, while a 220v outlet delivers electricity at 220 volts. 220v outlets are commonly used to power large appliances such as air conditioners and dryers.
Q: Can I plug a 110v appliance into a 220v outlet?
A: No, you cannot plug a 110v appliance into a 220v outlet. Doing so can cause the appliance to short circuit or even catch fire. Always make sure that you’re plugging your appliances into the correct type of outlet.
Q: What is a GFCI outlet?
A: A GFCI (ground-fault circuit interrupter) outlet is designed to protect against electrical shock in damp areas such as bathrooms and kitchens. It monitors the electrical current flowing through the circuit and trips the circuit if it senses a ground fault, which occurs when electrical current escapes from the circuit and flows through an unintended path, such as water or a person.
Q: What is an AFCI outlet?
A: An AFCI (arc-fault circuit interrupter) outlet is designed to protect against electrical fires caused by arcing faults. Arcing faults occur when electricity jumps across a gap in a damaged or worn electrical wire. The AFCI outlet monitors the circuit for this type of fault and trips the circuit if it senses an arc fault.
Q: Can I install a 110v outlet myself?
A: You can install a 110v outlet yourself if you have some basic knowledge of electrical wiring and the appropriate tools. However, if you’re unsure about any part of the process, it’s best to call a licensed electrician to handle the installation for you.
By now, you should have a good understanding of the 110v outlet diagram and the different types of outlets available. Remember to always follow proper safety procedures when working with electricity and never hesitate to call a licensed electrician if you’re unsure about anything.
