If you’re in need of a wiring diagram for your 110cc pocket bike, you’ve come to the right place. In this article, we’ll cover everything you need to know about the wiring of 110cc pocket bikes. From the basics to the more advanced, we’ll go over it all.
Basics of Pocket Bike Wiring
Before we dive into the specifics of wiring a 110cc pocket bike, let’s first discuss the basics of pocket bike wiring. Pocket bikes are run by a small engine that requires electrical power to operate. Without proper wiring, the engine won’t start, or it may run poorly.
One of the most important components of pocket bike wiring is the battery. The battery provides the electrical power needed to start the engine and run the electrical systems of the bike. The battery should be kept fully charged and in good condition for optimal performance.
The wiring on a pocket bike is usually simple and straightforward, with only a few key components. These include the battery, ignition switch, starter relay, and spark plug. With the right wiring diagram, anyone can wire a 110cc pocket bike like a pro.
Now that we’ve covered the basics, let’s move on to the specifics of wiring a 110cc pocket bike.

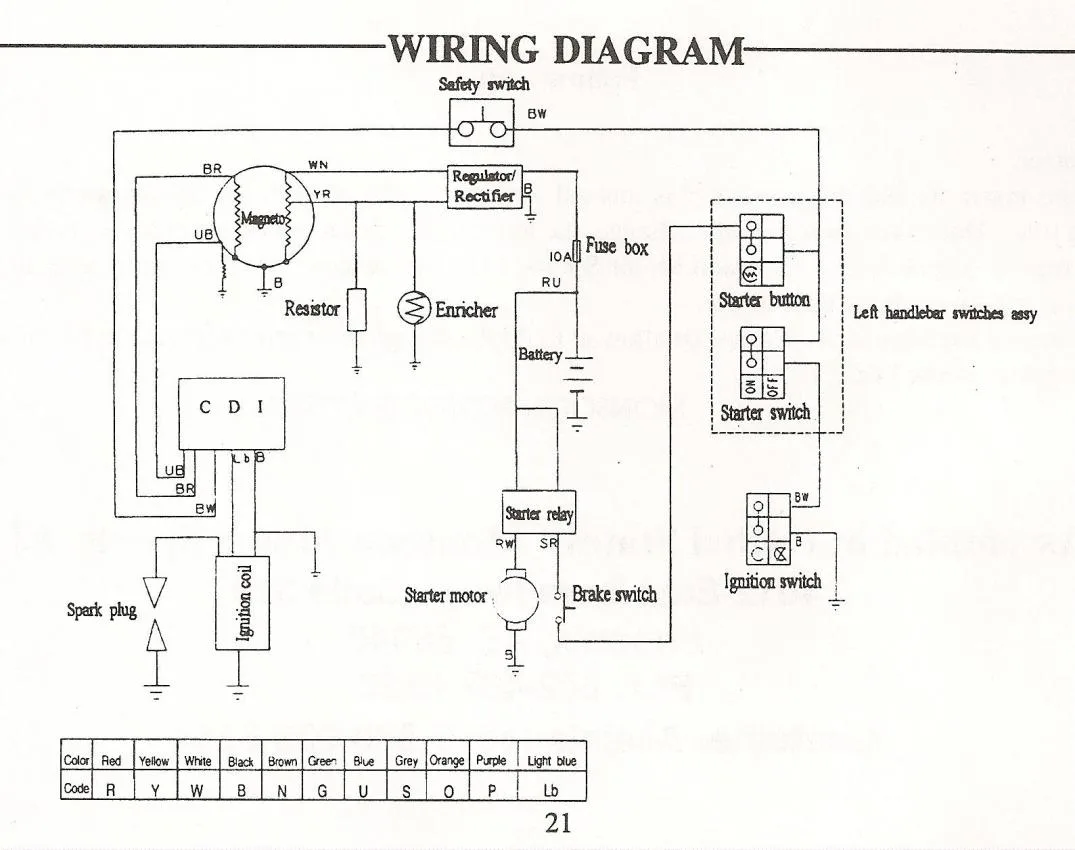

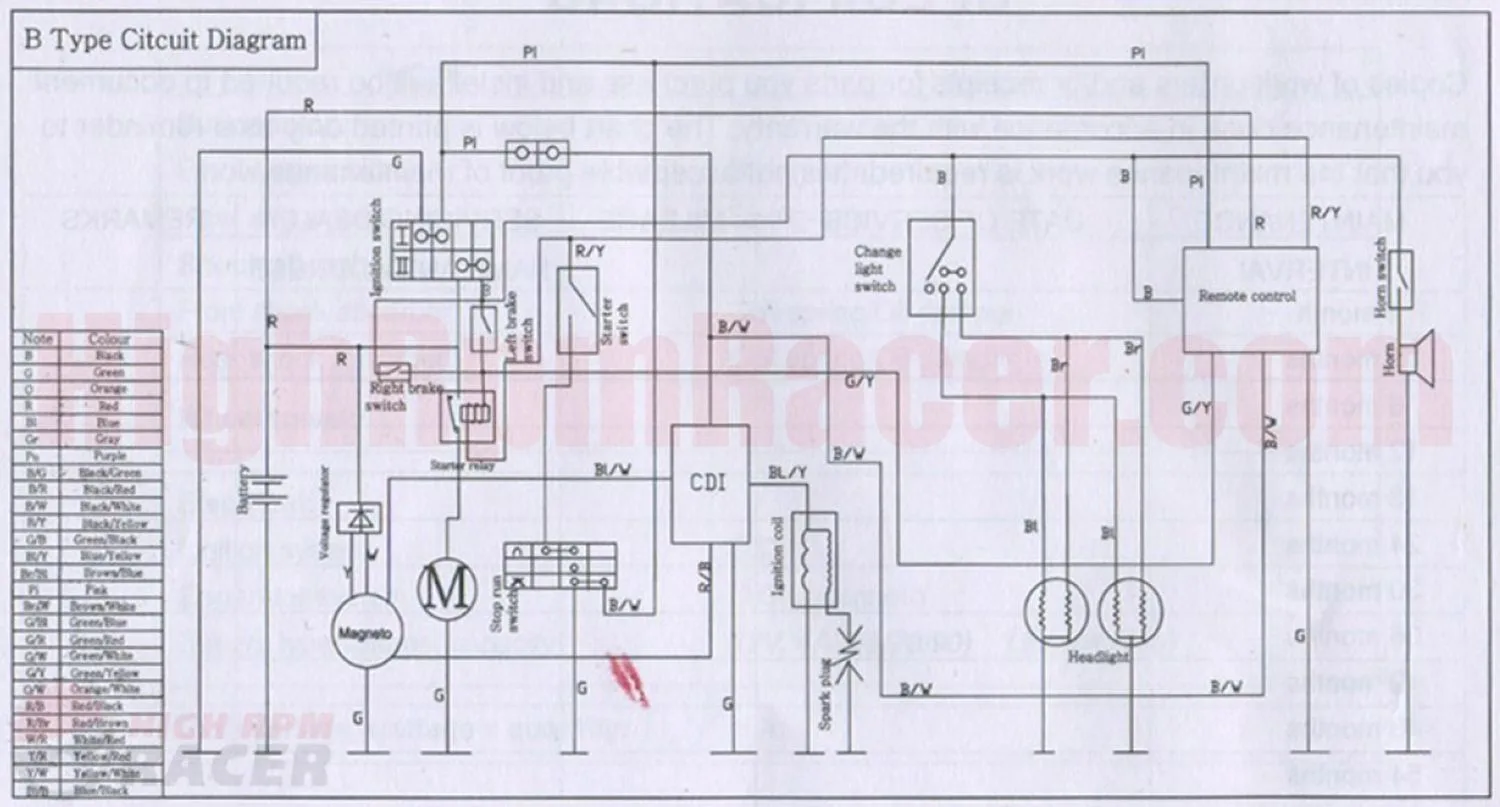

The Wiring Diagram
The wiring diagram is an essential tool for wiring a 110cc pocket bike. It shows the electrical connections between the various components of the bike and provides a guide for wiring the bike correctly.
| Wire Color | Description |
|---|---|
| Black | Ground wire connected to the engine or the frame |
| Red | Positive connection to the battery |
| Yellow | Connection to the starter relay |
| Blue | Connection to the ignition switch |
| Green | Connection to the spark plug |
It’s important to follow the wiring diagram closely to avoid damaging the electrical components of the bike.
FAQ
Q: Why won’t my pocket bike start?
A: There are several reasons why a pocket bike won’t start. Check the battery to make sure it’s fully charged and in good condition. Make sure the spark plug is clean and properly connected. Check the wiring to ensure it’s correctly wired according to the wiring diagram.
Q: How can I tell if my battery is fully charged?
A: You can use a battery tester to check the charge level of your battery. A fully charged battery should read around 12.6 volts. Anything less than 12 volts may indicate a low charge or a faulty battery.
Q: How do I wire the starter relay?
A: The starter relay is wired using the yellow wire from the wiring harness. Connect the wire to the relay according to the wiring diagram, making sure the connection is tight and secure.
Q: What type of spark plug should I use?
A: The type of spark plug needed for a 110cc pocket bike will depend on the make and model of the bike. Consult the owner’s manual or a local mechanic for recommendations on the best spark plug for your bike.
Q: Can I wire my pocket bike without a wiring diagram?
A: It’s not recommended to wire a pocket bike without a wiring diagram. Attempting to wire the bike without proper guidance can lead to damage to the electrical components and may cause injury or harm.
Conclusion
Wiring a 110cc pocket bike is straightforward when you have the right tools and knowledge. With a wiring diagram, you can easily wire your bike like a pro and get it running smoothly. Remember to always follow the wiring diagram closely and consult an expert if you’re unsure about any aspect of the wiring process.
