The 10si one wire alternator is a popular choice for those who are looking for a simple and effective charging system for their vehicle’s battery. It is easy to install and provides a reliable source of power to keep your battery charged. In this article, we will provide you with a comprehensive guide to the 10si one wire alternator wiring diagram, including step-by-step instructions, tables, and FAQs to help you understand the process better.
What is a One Wire Alternator?
A one wire alternator is a type of alternator that requires only one wire to charge the battery. It differs from traditional alternators in that it does not require an external voltage regulator to control the charging process. The one wire alternator is a more straightforward and affordable option, making it an attractive choice for people looking for a hassle-free and affordable charging system.
Advantages of a One Wire Alternator
Here are some of the advantages of using a one wire alternator for your vehicle:
| Advantages | Explanation |
| Simple to install | Requires only one wire to operate |
| Affordable | Less expensive than traditional alternators |
| Low maintenance | Requires minimal maintenance and upkeep |
| Reliable | Provides a consistent and reliable source of power |
How to Wire a 10si One Wire Alternator
Before you start wiring your 10si one wire alternator, you should make sure that your vehicle’s battery is fully charged. Here are the steps to follow:
Step 1: Disconnect the Battery
Disconnect the negative cable from your battery to avoid any accidents during the installation process.
Step 2: Remove the Old Alternator
Remove the old alternator and disconnect any wires that may be connected to it. You should also remove the old voltage regulator if your vehicle has one.

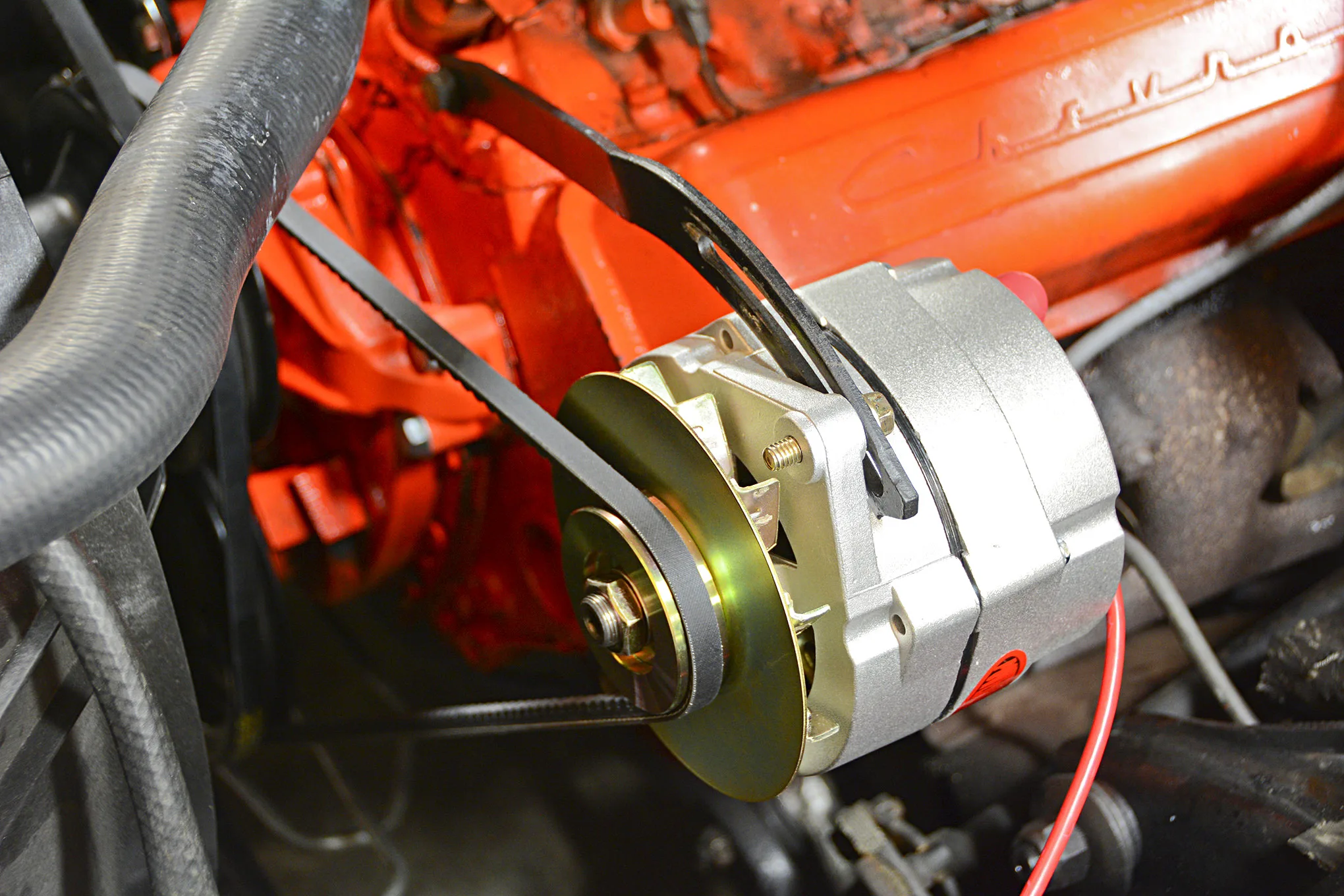

Step 3: Mount the New Alternator
Mount the new 10si one wire alternator onto your vehicle’s engine using the appropriate hardware.

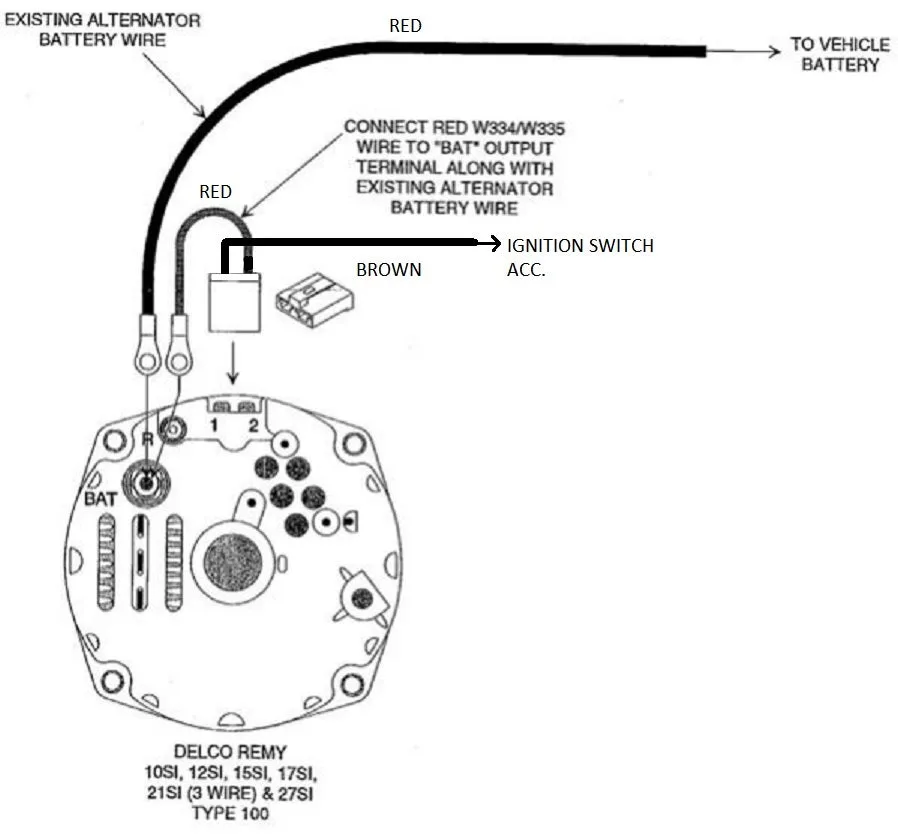

Step 4: Connect the Wires
Connect the wire from the alternator to the positive terminal of the battery. You should also connect a wire from the alternator to the vehicle’s ignition switch to turn the alternator on and off. If your vehicle has an oil pressure switch, you should also connect a wire from the alternator to the switch.
Step 5: Test the Alternator
Once you have completed the wiring process, you should start your vehicle and test the alternator to ensure that it is working correctly. Use a multimeter to measure the voltage output from the alternator. The voltage should be between 13.5 and 14.5 volts.
FAQs
What is the difference between a one wire alternator and a traditional alternator?
A one wire alternator requires only one wire to charge the battery, while a traditional alternator requires multiple wires and an external voltage regulator to control the charging process.
Can I install a one wire alternator in any vehicle?
Yes, as long as the alternator is compatible with your vehicle’s engine and electrical system.
What tools do I need to install a one wire alternator?
You will need a wrench, pliers, wire cutters, wire strippers, and a multimeter to test the voltage output.
Can I use a one wire alternator on a vehicle with a lot of electrical accessories?
It depends on the output of the alternator. If your vehicle requires a lot of power, you may need to consider a higher output alternator.
How do I know if my one wire alternator is working correctly?
You can test the voltage output using a multimeter. The voltage output should be between 13.5 and 14.5 volts.
Conclusion
The 10si one wire alternator is an excellent choice for those who are looking for a simple and affordable charging system for their vehicle’s battery. By following the simple steps outlined in this guide, you can easily wire your alternator and enjoy reliable power for your vehicle’s battery. Remember to test the alternator to ensure that it is working correctly and consult a professional if you experience any issues during the wiring process.
