1000Base-T is a type of Ethernet protocol that supports gigabit Ethernet (GbE) transmission over copper cables. This technology uses all four pairs of wires in a CAT5e or higher-grade twisted pair cable to achieve high-speed data transfer. The wiring diagram for 1000Base-T follows a standard called the TIA/EIA-568-B, which defines the pinout and color codes for each wire pair.
Pinout and Signal Mapping

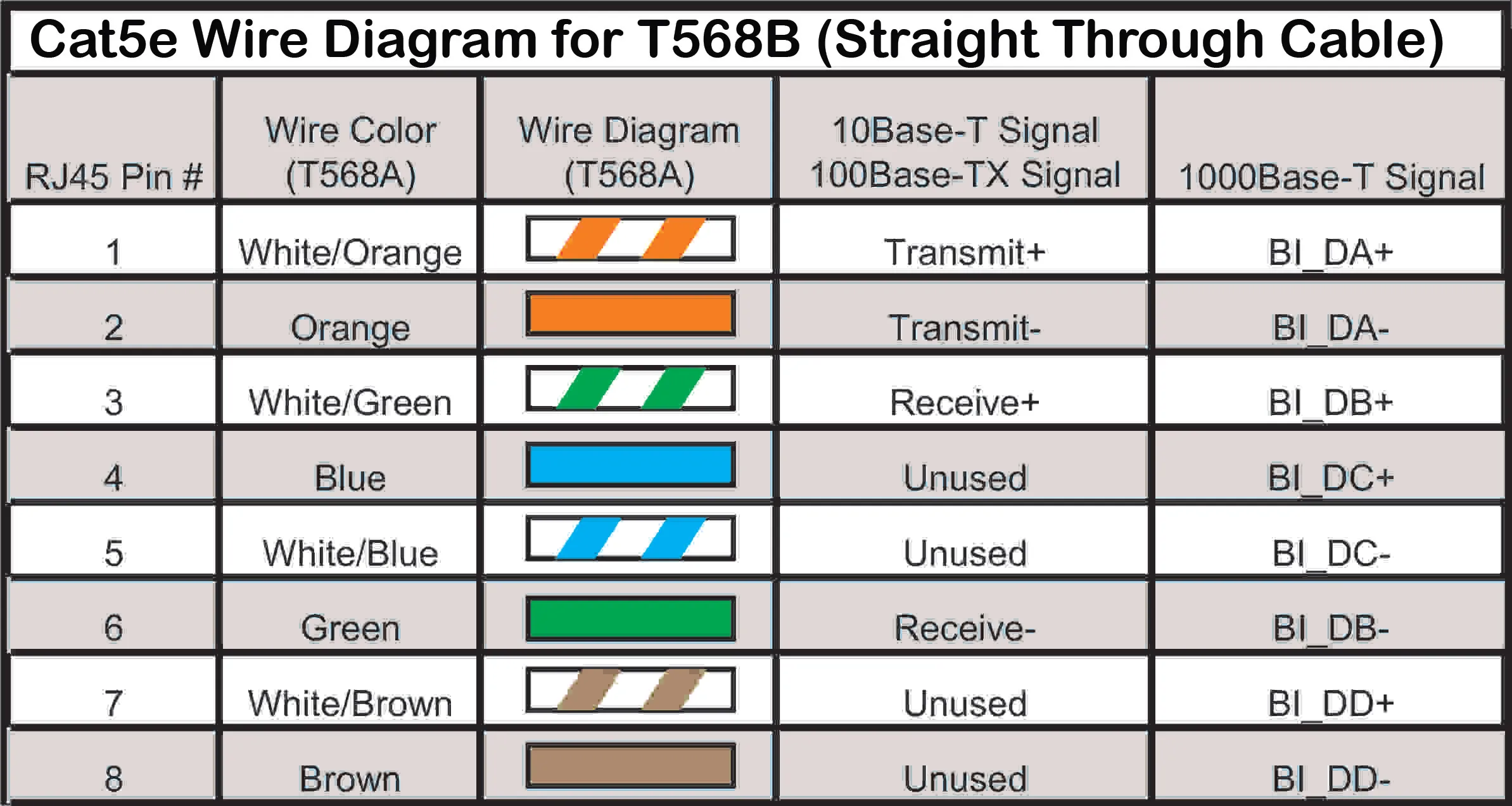

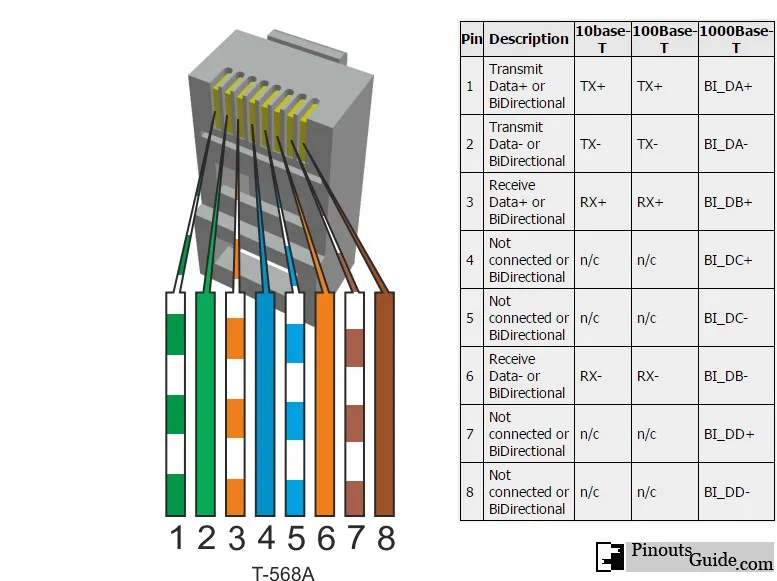

The 1000Base-T wiring diagram consists of four pairs of wires, each carrying a different signal, and a fifth pair that is unused. The pinout for each pair is as follows:
| Wire Pair | Pin | Signal | Color Code |
|---|---|---|---|
| Pair 1 | 1 | TD+ (Transmit Data) | White/Orange |
| Pair 1 | 2 | TD- (Transmit Data) | Orange |
| Pair 2 | 3 | RD+ (Receive Data) | White/Green |
| Pair 2 | 6 | RD- (Receive Data) | Green |
| Pair 3 | 4 | Unused | Blue |
| Pair 3 | 5 | Unused | White/Blue |
| Pair 4 | 7 | Unused | White/Brown |
| Pair 4 | 8 | Unused | Brown |
The TD+ and TD- signals are transmitted from the source device to the destination device, while the RD+ and RD- signals are received from the destination device. The unused pairs are usually reserved for power over Ethernet (PoE) or phone lines.
Color Coding and Cable Length
The TIA/EIA-568-B standard also defines the color coding for each wire pair, which enables easy identification and troubleshooting. The color codes are as follows:
- Pair 1: White/Orange and Orange
- Pair 2: White/Green and Green
- Pair 3: White/Blue and Blue
- Pair 4: White/Brown and Brown
It is important to note that the maximum length of a 1000Base-T cable depends on the quality of the cable, the number of connections, and the network devices used. In general, a properly installed cable can support up to 100 meters (328 feet) of length, but longer distances may result in signal degradation and reduced performance.
FAQ
What is 1000Base-T?
1000Base-T is a gigabit Ethernet standard that uses copper cables to transmit data at a speed of 1 Gbps. It is the most popular type of Ethernet for local area networks (LANs) due to its high bandwidth and low cost.
What is the difference between 100Base-T and 1000Base-T?
100Base-T is a fast Ethernet standard that uses only two pairs of wires in a twisted pair cable to transmit data at a speed of 100 Mbps. 1000Base-T, on the other hand, uses all four pairs of wires in a twisted pair cable to achieve a speed of 1 Gbps. This makes 1000Base-T ten times faster than 100Base-T.
Can I use a CAT5 cable for 1000Base-T?
Technically, a CAT5 cable can support 1000Base-T, but it is recommended to use a CAT5e or higher-grade cable for better performance and reliability. CAT5 cables may not be able to handle the high signal frequency and crosstalk of gigabit Ethernet, which can result in errors and slow data transfer.
What is the maximum length of a 1000Base-T cable?
The maximum length of a 1000Base-T cable depends on various factors such as the quality of the cable, the number of connections, and the network devices used. In general, a properly installed cable can support up to 100 meters (328 feet) of length, but longer distances may result in signal degradation and reduced performance.
How can I troubleshoot a 1000Base-T connection?
If you are experiencing issues with your 1000Base-T connection, try the following troubleshooting steps:
- Check the cable for any physical damage or loose connections.
- Verify that the network devices are configured correctly and support 1000Base-T.
- Check the network interface card (NIC) settings on your computer to ensure that they match the network configuration.
- Use a cable tester to check for continuity and proper wiring of the cable.
- Try a different cable or device to isolate the problem.
If none of these steps resolve the issue, contact your network administrator or a certified technician for further assistance.
